Removing and Installing/Replacing Door Mirror Light




63 31 160 - Removing and installing/replacing door mirror light





Necessary preliminary tasks:
- Remove retaining ring on door mirror

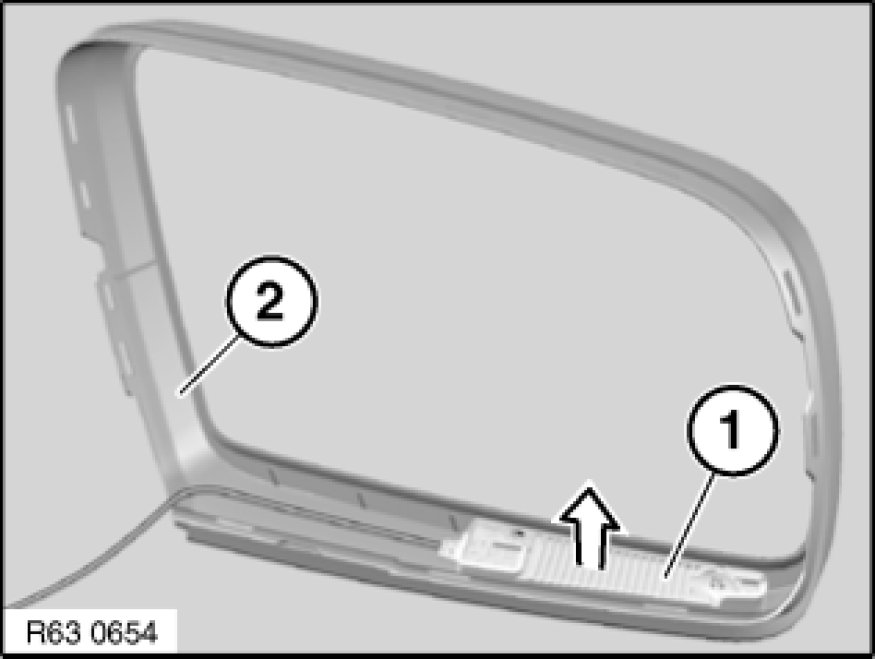

Unclip door mirror light (1) in direction of arrow from retaining ring on door mirror (2) and remove.
