Fault Profiles Instrument Cluster 09/05

Fault profiles: Instrument cluster 09/05
The instrument cluster is a complex control module with a large number of possible fault profiles. The following list contains known symptoms of the functional areas in general, display / indicator lamps and pointer instruments.

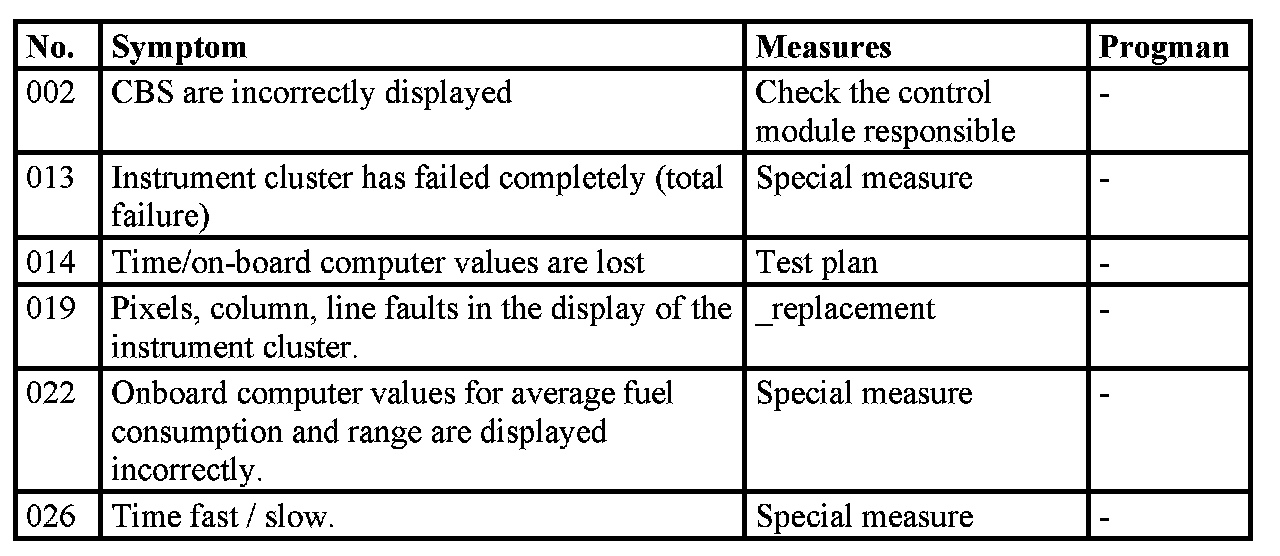

General

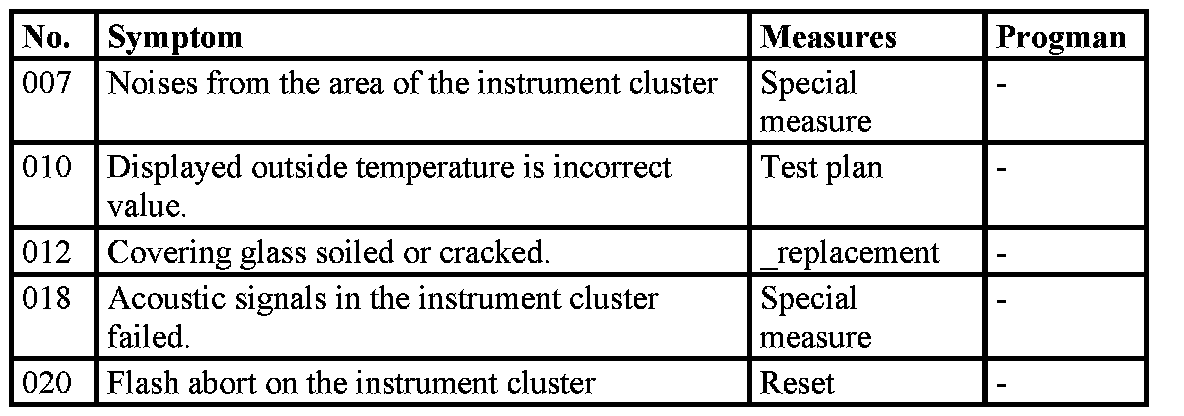

Display/indicator lamps

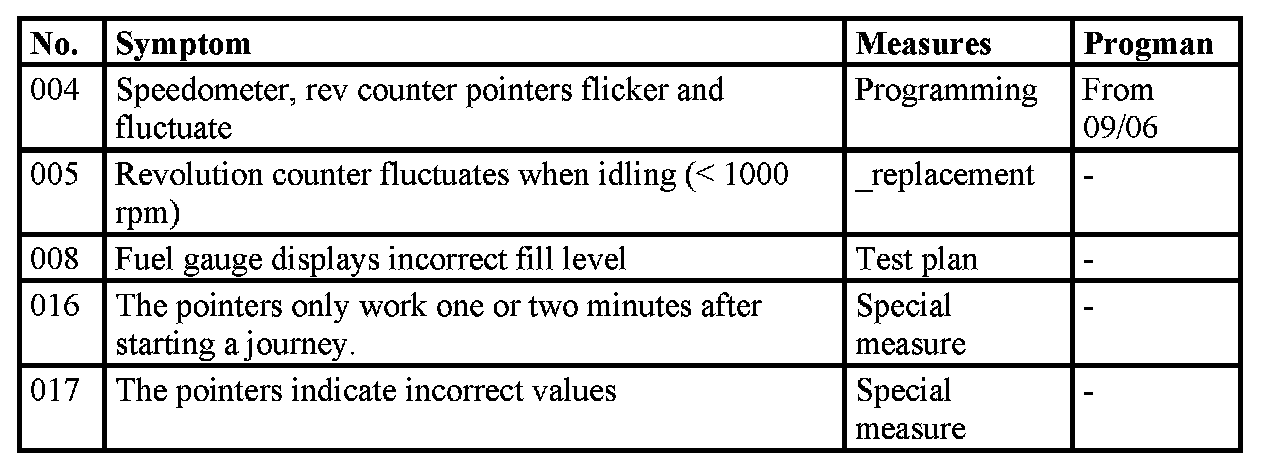

Pointer instruments
