Removing and Installing/Replacing Trim For Head-Up Display

62 30 005 - Removing and installing/replacing trim for head-up display





Special tools required:
- 00 9 317 00 9 317 Trim Panel Wedge

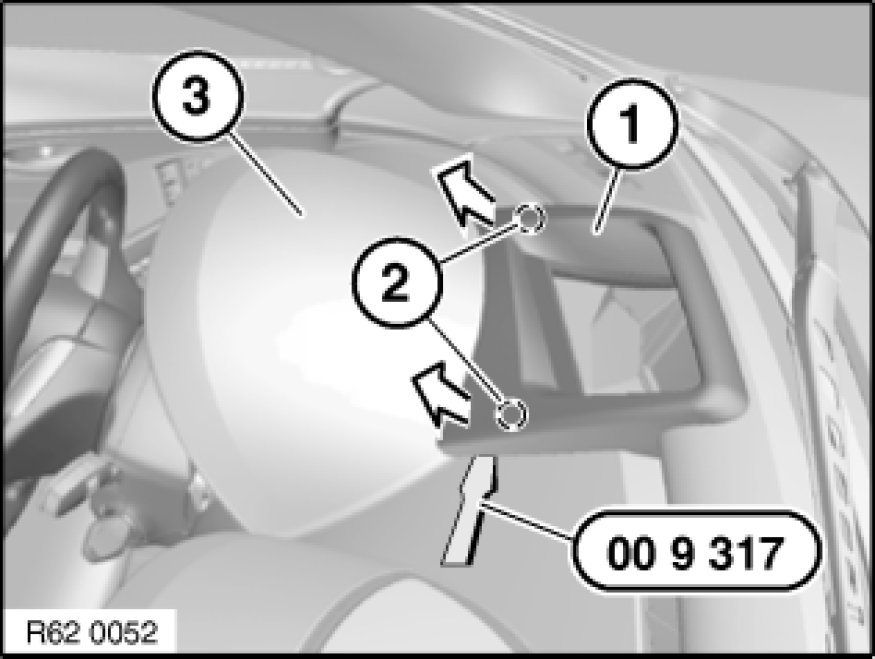

Lever out trim for head-up display (1) with special tool 00 9 317 00 9 317 Trim Panel Wedge from mounting points (2).

Feed trim for head-up display (1) in direction of arrow out of instrument panel trim (2) and remove.





Installation:

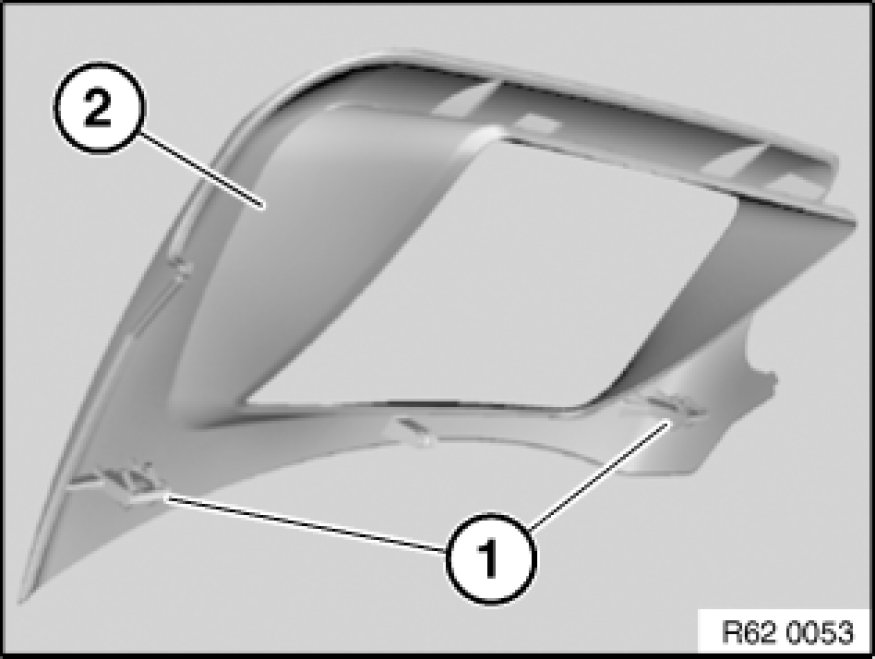

Make sure retaining lugs (1) of trim for head-up display (2) are correctly seated.
