Removing and Installing/Replacing Head-Up Display

62 30 010 - Removing and installing/replacing head-up display





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Important!
Do not scratch head-up display lens!





Necessary preliminary tasks:
- Remove instrument panel trim 51 45 030 Removing and Installing Instrument Panel Trim





Note:
Comply with notes and instructions on handling optical waveguides 61 00 ... Notes on Handling Optical Fibers.

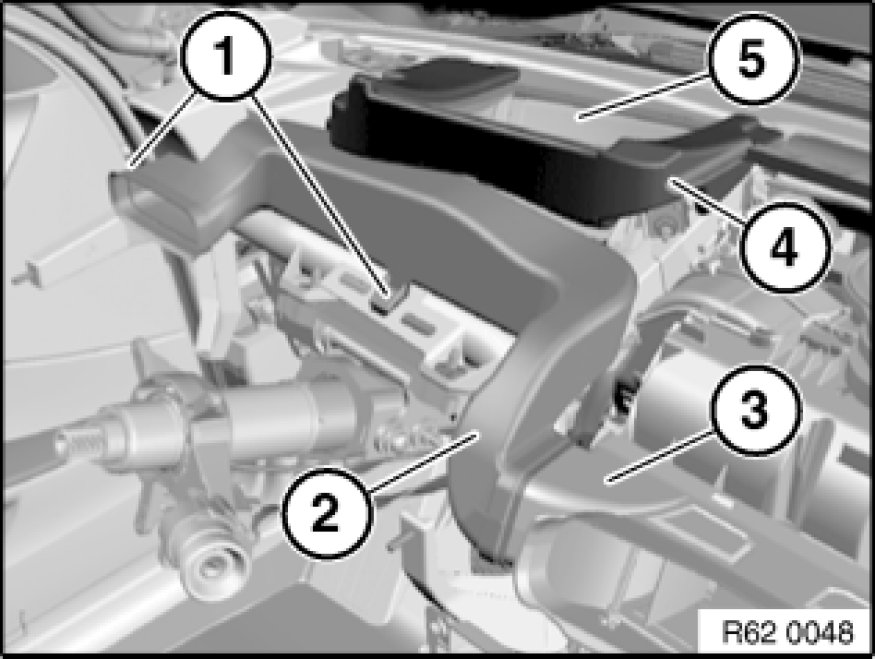

Release screws (1).
Remove air duct (2) from air distributor (3).
If necessary, remove fitted foam seal (4) from head-up display (5).





If necessary, unclip fitted flexible shaft (display adjustment) Adjusting Head-Up Display (Display Adjustment).

Installation Note:
- Clean head-up display lens.
- Adjust head-up display (5).
- Make sure eccentric (2) is in correct installation position.
- If fitted, make sure flexible shaft is in correct installation position.

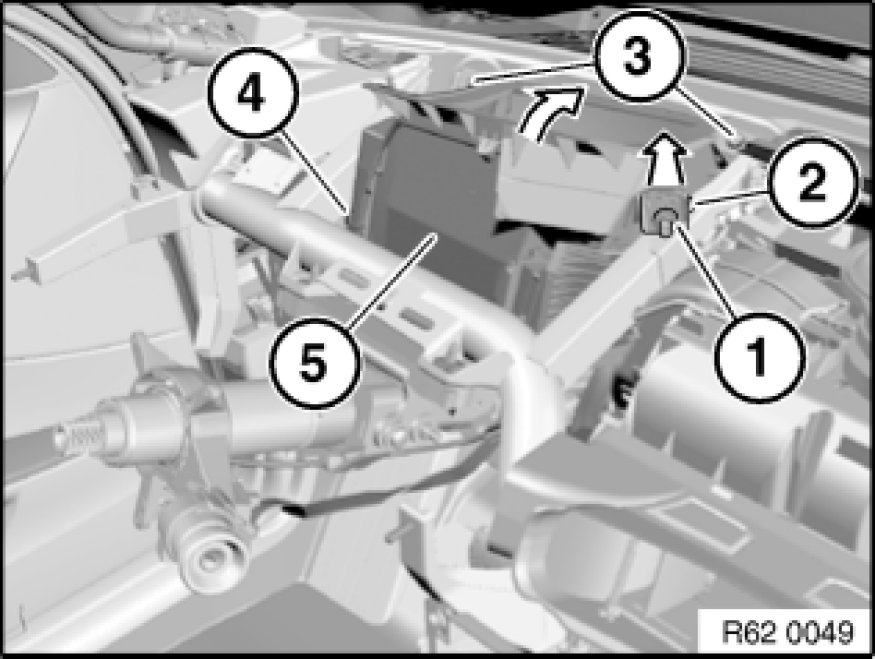

Release lock nut (1) and remove.

Remove eccentric (2) in direction of arrow.
Release screws (3).
Pull head-up display (5) back slightly and fold upwards.
Unlock and disconnect plug connection (4) and remove head-up display (5).





Installation Note:

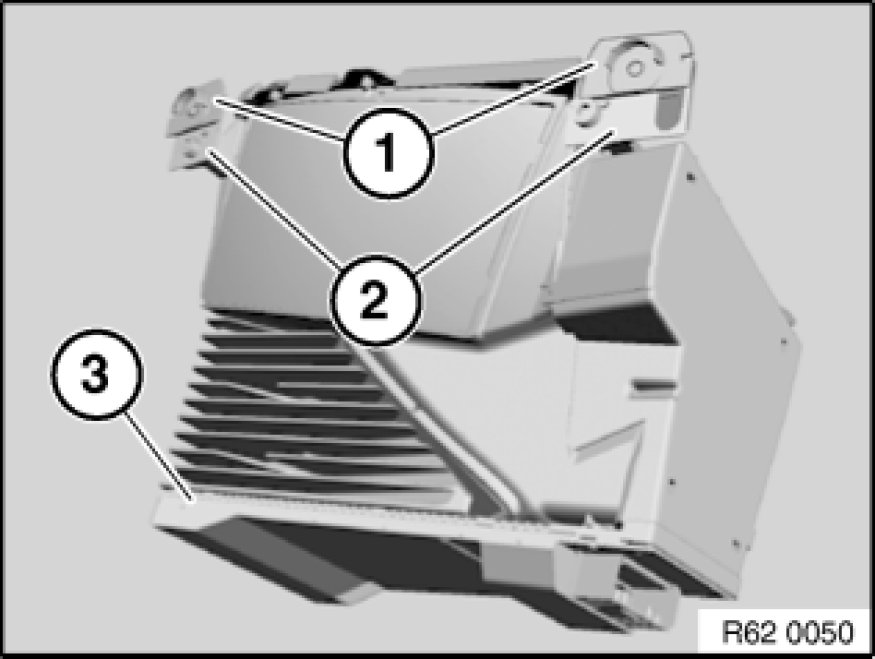

Make sure centering caps (1) are correctly seated on lugs (2) of head-up display (3).





Replacement:
Carry out programming/coding Programming and Relearning.
