Replacing Knob for Controller

61 31 192 - Replacing knob for controller

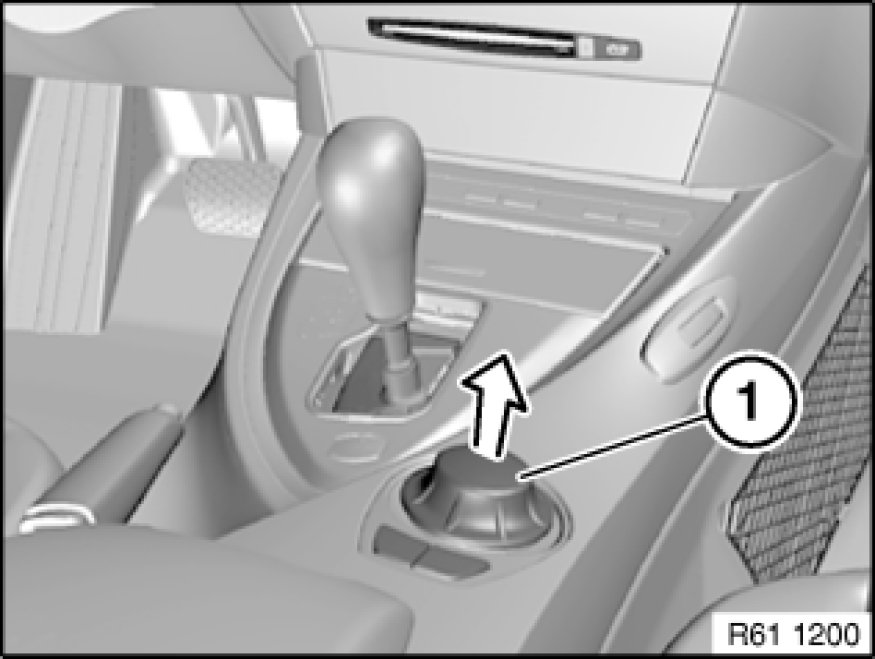

Detach knob for controller (1) in direction of arrow.





Installation:

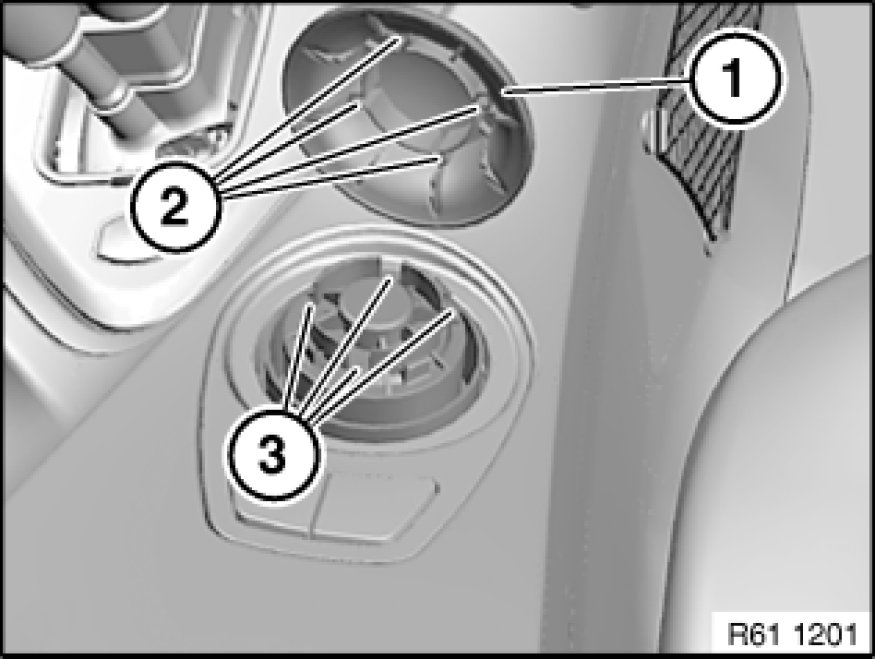

Fit knob for controller (1) so that guides (2) are seated in mountings (3).
Press knob for controller (1) in middle until it engages.
