Removing and Installing/Replacing Front Trim For Car Infotainment Computer

65 83 ... - Removing and installing/replacing front trim for Car Infotainment Computer





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Remove middle instrument panel trim 51 45 310 Removing and Installing (Replacing) Centre Trim For Instrument Panel

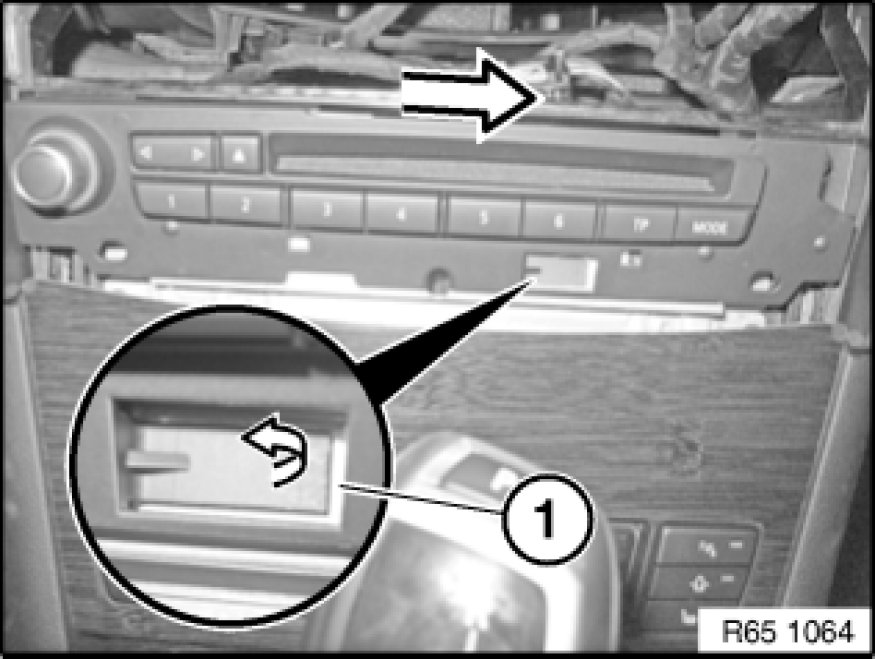

Carefully raise catch (1) with a suitable tool in direction of arrow.
Feed out front trim for Car Information Computer to right and remove.





Disconnect plug connection (1).
Remove front trim of Car Information Computer.

Installation Note:

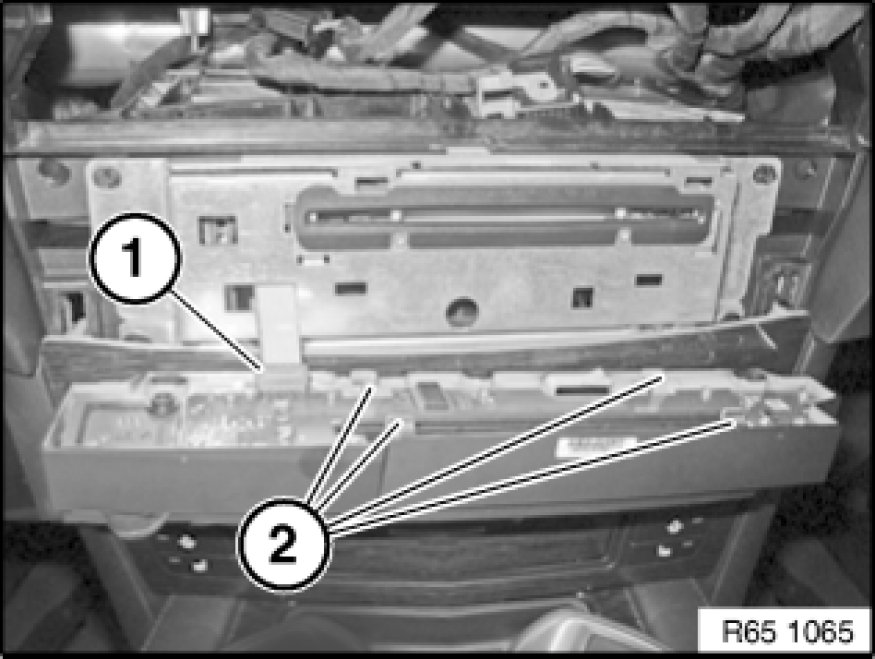

Make sure guides (2) are correctly seated in designated openings.
Replace front trim if guides are damaged.
