Removing and Installing/Replacing Button Unit (For on-Board Monitor)

61 31 193 - Removing and installing/replacing button unit (for on-board monitor)





Special tools required:
- 00 9 341

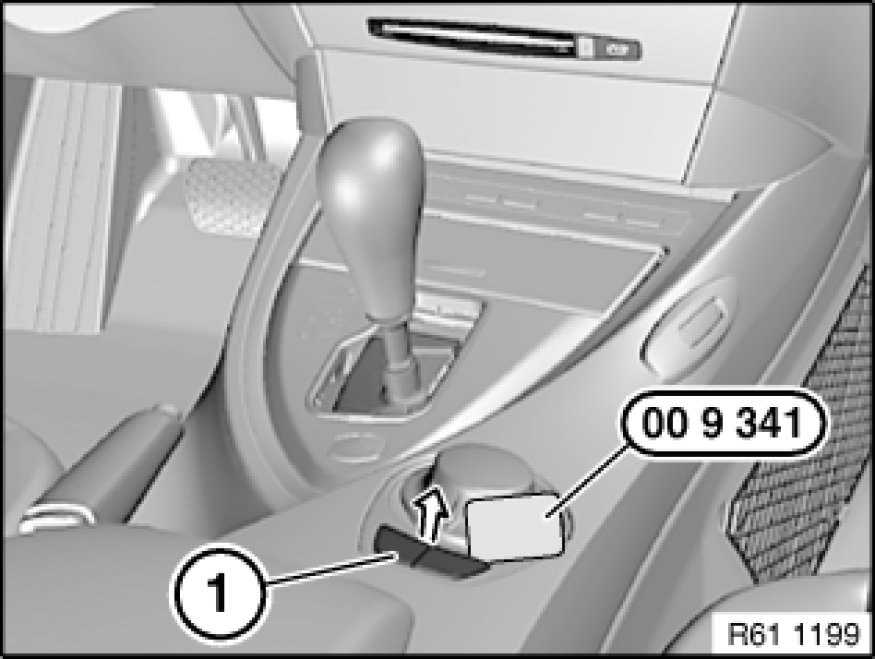

Partially fit special tool 00 9 341 as illustrated.

Unclip button unit (1) and lever out in direction of arrow.

Unlock and disconnect associated plug connection, remove button unit (1).
