Ambient Temperature Sensor / Switch HVAC: Service and Repair

64 11 902 - Replacing sensor fan for interior temperature





Necessary preliminary tasks:
- Remove control panel for heater - A/C system Removing and Installing (Replacing) Control Panel For Heater - A/C System.

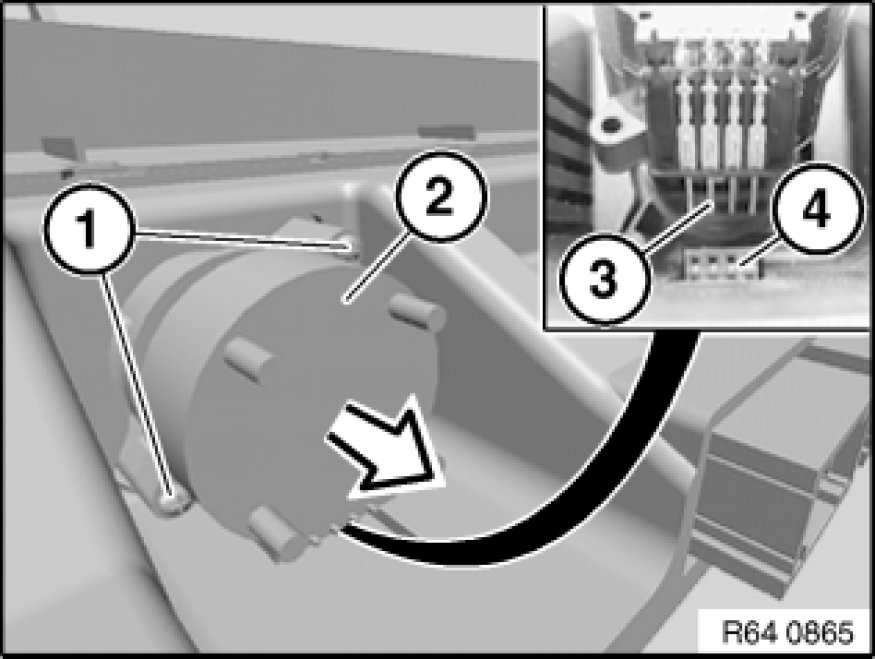

Release screws (1).
Pull out sensor blower for interior temperature (2) in direction of arrow.

Installation:
Make sure pins (3) are correctly seated in base (4).
