Replacing Desiccant Insert for A/C System (Condenser Removed)

64 53 518 - Replacing desiccant insert for A/C system (condenser removed)





Warning!
Risk of injury!
Refrigerant circuit is under high pressure!
Follow safety instructions for handling R 134a refrigerant.
Avoid contact with refrigerant and refrigerant oil.
Follow safety instructions for handling refrigerant oil Instructions for Handling Refrigerant Oil (for Refrigerant R 134a).





Important!
Risk of damage!
Restart engine only when A/C system has been correctly filled.
Follow instructions Removal and Replacement for opening and replacing parts in refrigerant circuit!
If A/C system is opened for more than 24 hours:
Replacing drier insert for A/C system

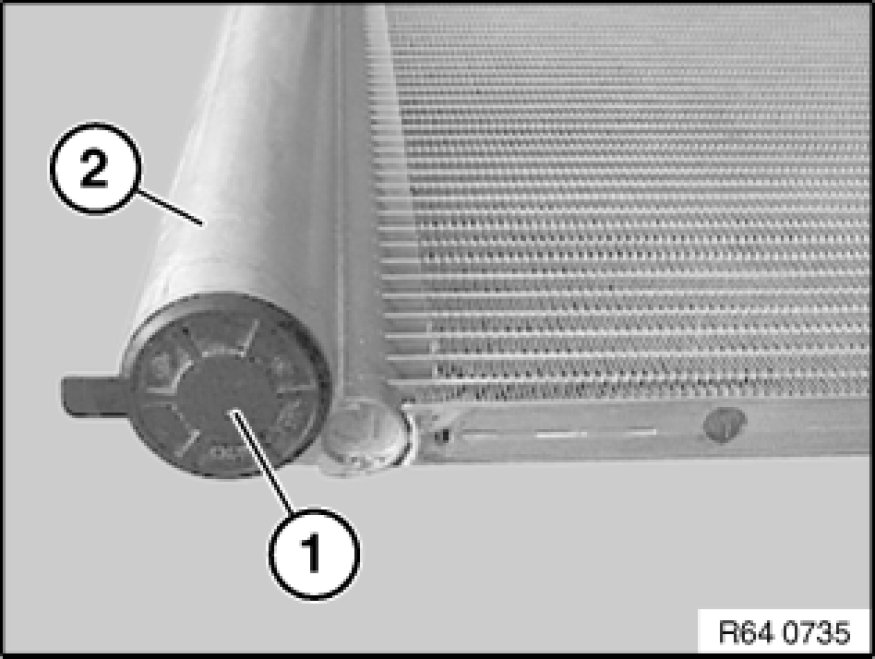

Remove protective cap (1) from condenser for A/C system (2).

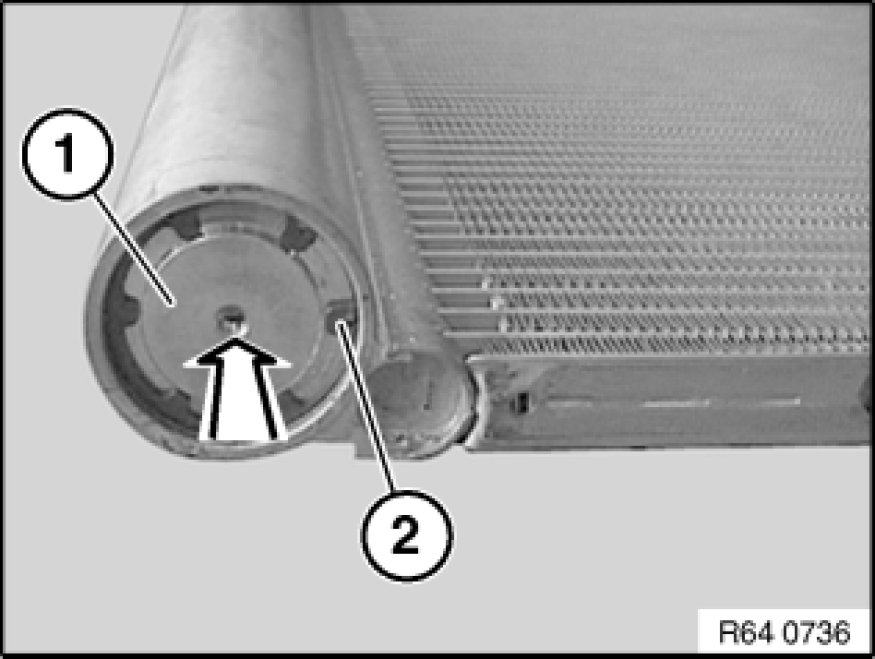

Press sealing cap (1) inwards and remove circlip (2).

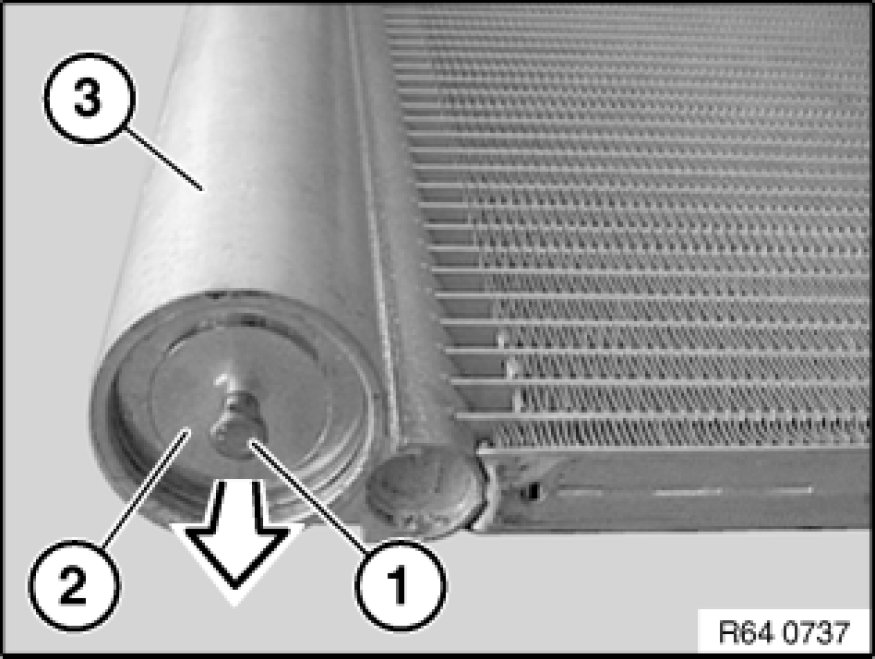

Remove protective cap (2) from condenser for A/C system (3) with aid of an inserted screw (1).





Installation Note:

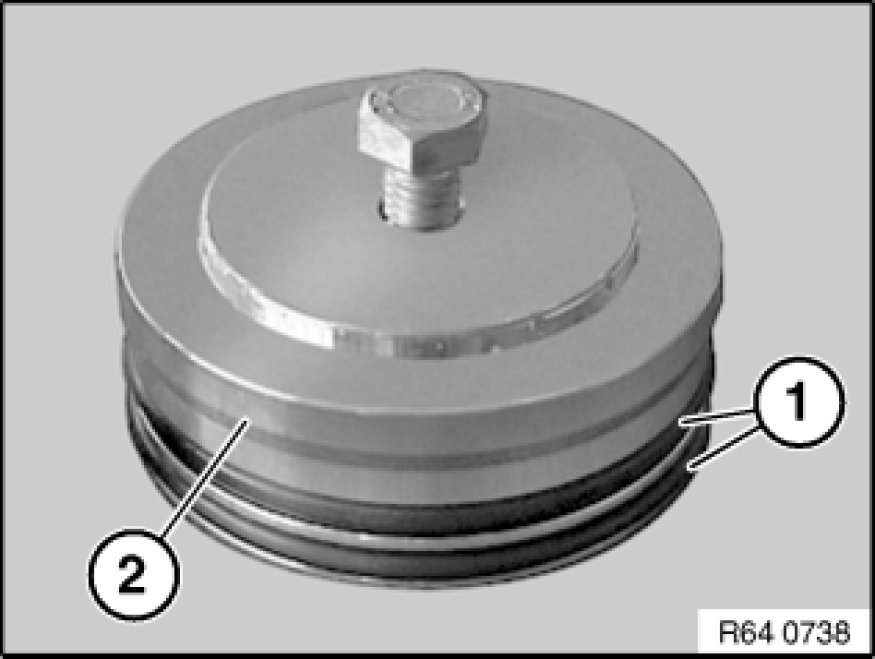

Replace sealing rings (1) of sealing cap (2) and coat with suitable refrigerant oil.

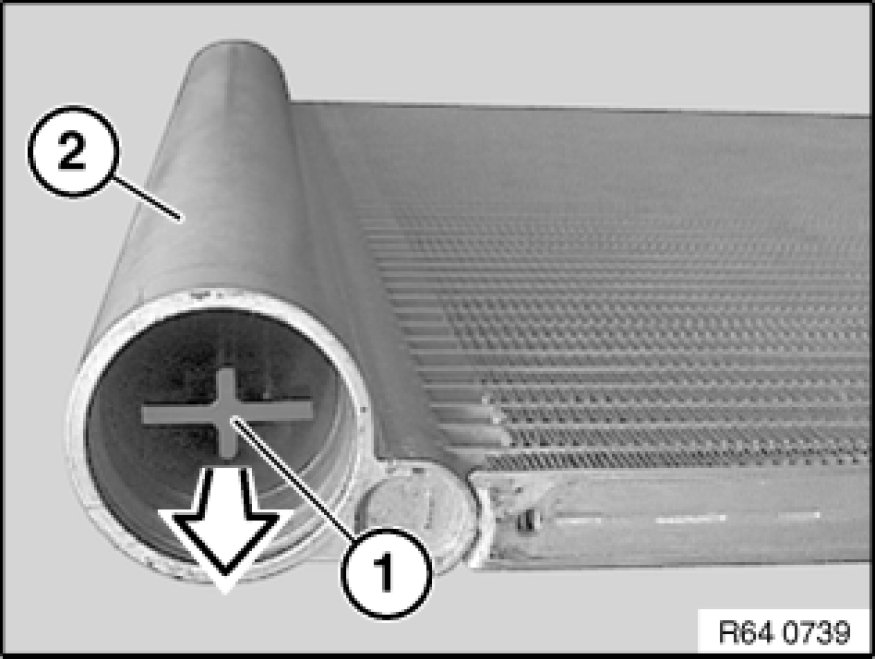

Remove desiccant insert for A/C system (1) in direction of arrow from condenser for A/C system (2).





After installation:
- Add final details to vehicle
- Evacuate and fill A/C system Drawing off, Evacuating and Filling A/C System (R 134a)
