Removing and Installing (Replacing) Control Panel For Heater - A/C System

64 11 377 - Removing and installing (replacing) control panel for heater - A/C system





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Remove middle trim for instrument panel 51 45 310 Removing and Installing (Replacing) Centre Trim For Instrument Panel

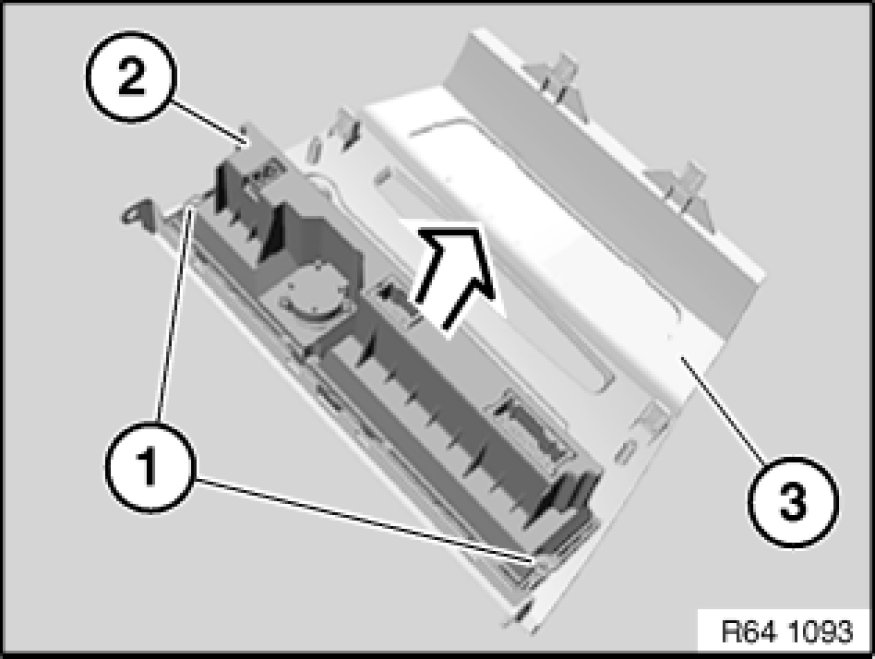

Release screws (1).
Unclip control panel for heater - A/C system (2) all round and remove from middle trim for instrument panel (3).





Replacement:
Carry out programming/coding Programming and Relearning.
