Removing and Installing/Replacing Right Fresh-Air Grill

64 22 138 - Removing and installing/replacing right fresh-air grill





Necessary preliminary tasks:
- Remove decorative strip on instrument panel on right 51 45 380 Removing and Installing (Replacing) Right Decorative Strip on Instrument Panel

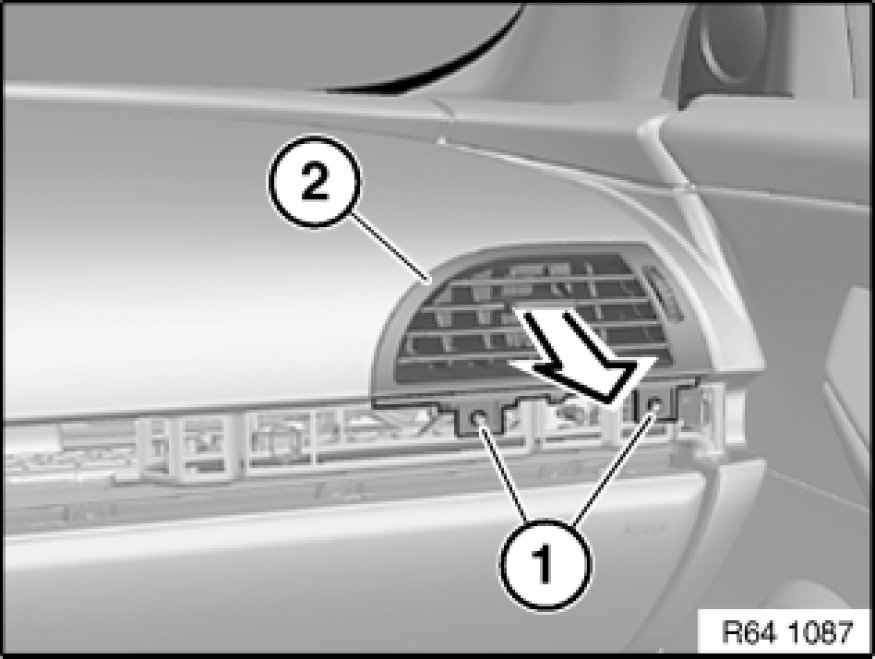

Release screws (1).
Pull back right fresh-air grill (2) and remove.
