Removing and Installing/Replacing Center Fresh-Air Grill

64 22 165 - Removing and installing/replacing center fresh-air grill





Special tools required:
- 00 9 341





Necessary preliminary tasks:
- Remove switch for hazard warning system/central locking Service and Repair





Release screw (1).
Partially fit special tool 00 9 341 as illustrated.
Lever out trim for center instrument panel (2) completely with center fresh-air grill (3) all round and remove.





Replacement:

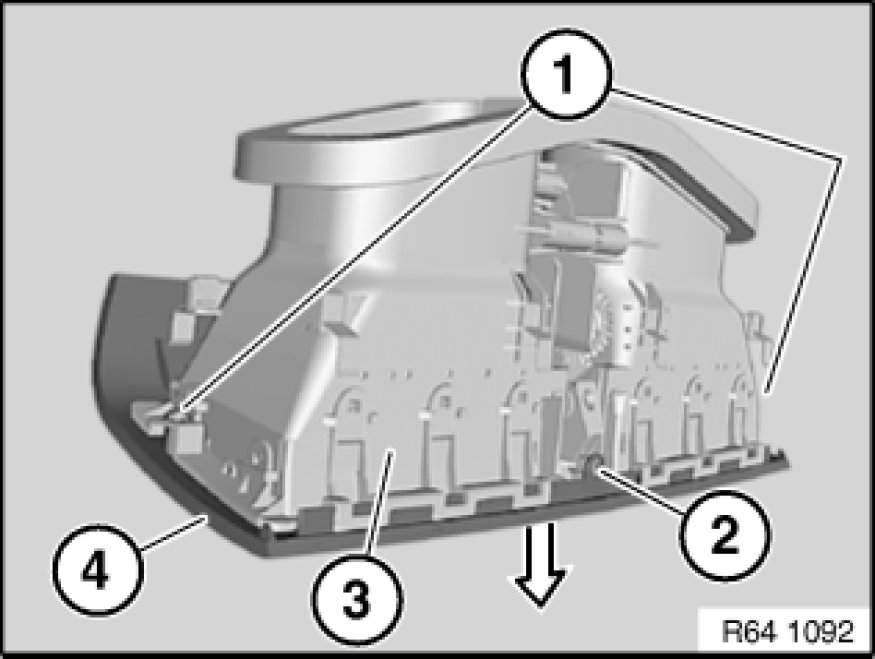

Release screws (1) and (2).
Remove trim for center instrument panel (4) in direction of arrow from center fresh-air grill (3).

Installation:
Make sure trim for center instrument panel (4) is correctly seated in associated mounts of center fresh-air grill (3).
