11 00 ... Mounting Engine on Assembly Stand

Mounting engine on assembly stand (S85)





Special tools required:
- 00 2 300 00 2 300 Assembly Stand with Universal Flange
- 11 5 260 11 5 260 Engine Support Plate





Necessary preliminary tasks:
- Remove engine Removing and Installing Engine.

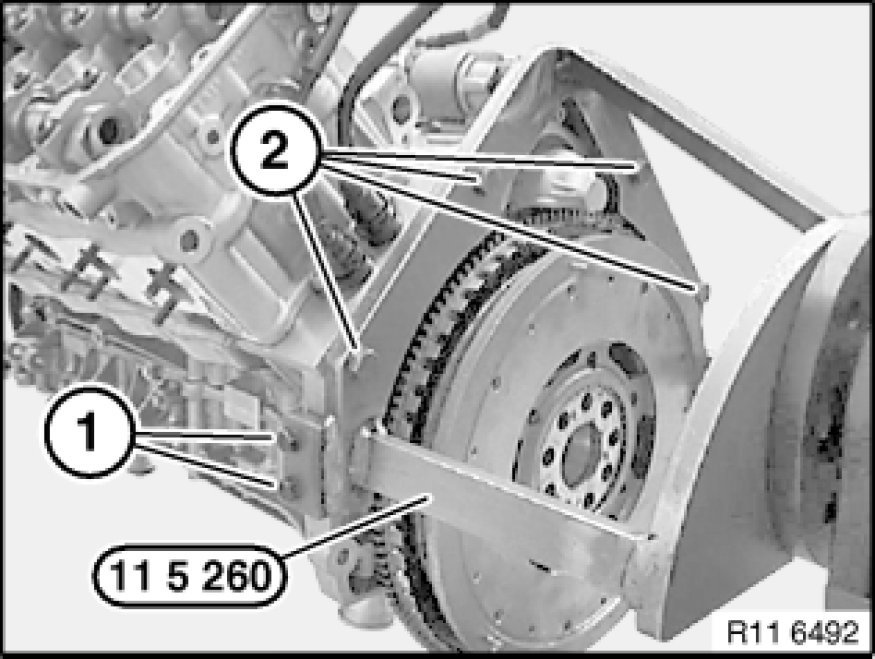

Secure special tool 11 5 260 11 5 260 Engine Support Plate to crankcase with bolts (1 and 2).
Tighten screws (1 and 2) uniformly.

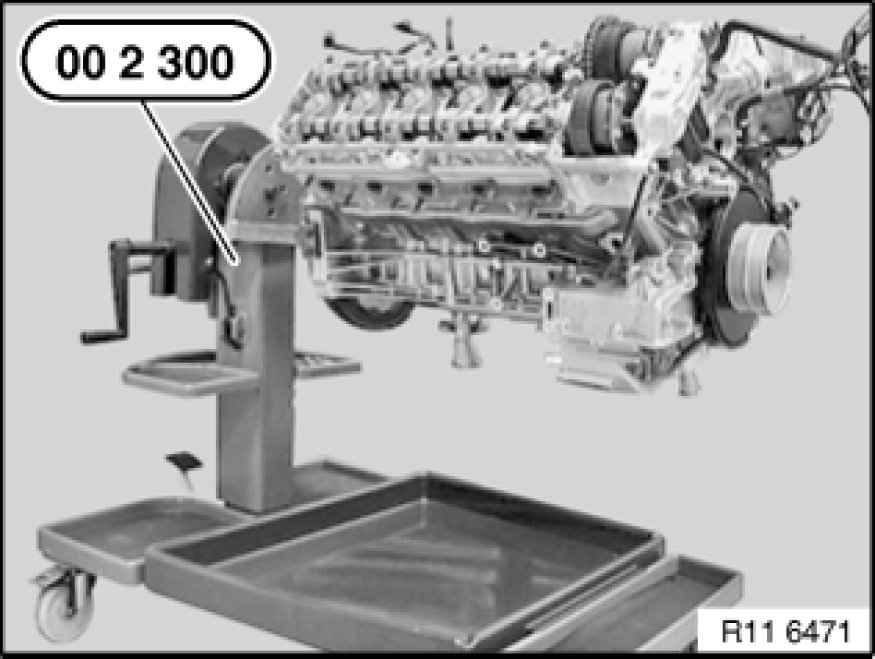

Secure engine with special tool 11 5 260 11 5 260 Engine Support Plate to special tool 00 2 300 00 2 300 Assembly Stand with Universal Flange.
