Replacing Left Engine Support Arm

22 11 110 - Replacing left engine support arm (S85)





Necessary preliminary tasks:
- Secure engine in installation position Securing Engine in Installation Position
- Remove both front wheels Removing or Installing Front or Rear Wheel
- Lower front axle carrier

Observe safety instructions 00 .. ... Lifting Vehicle With A Lifting Platform on raising the vehicle.

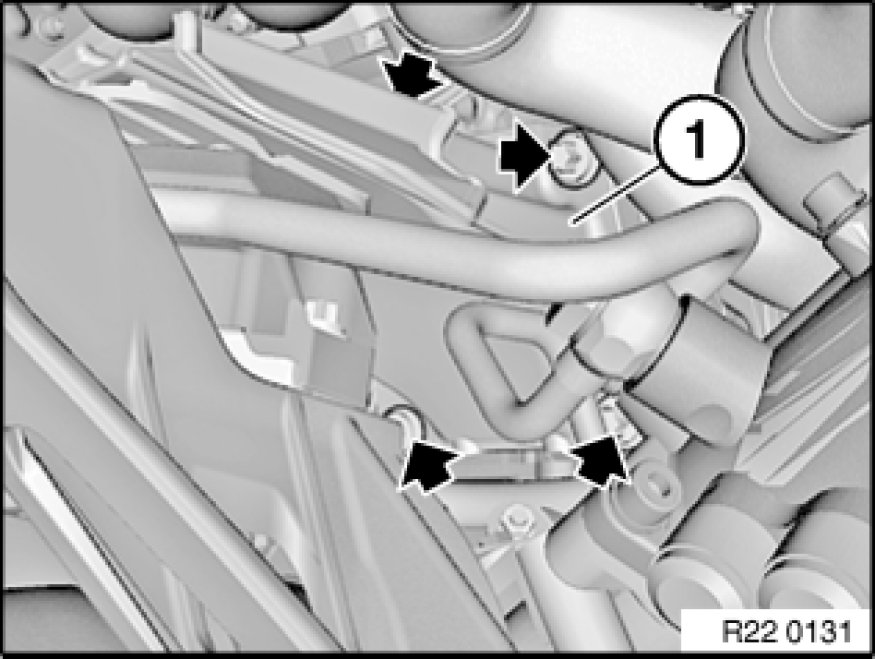

Unfasten screws.

Remove engine support arm (1).

Tightening torque 22 11 3AZ Specifications.
