Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Drive >> SMG Transmission Control (SMG Sequential Manual Transmission M5/M6) >> Transmission

Transmission

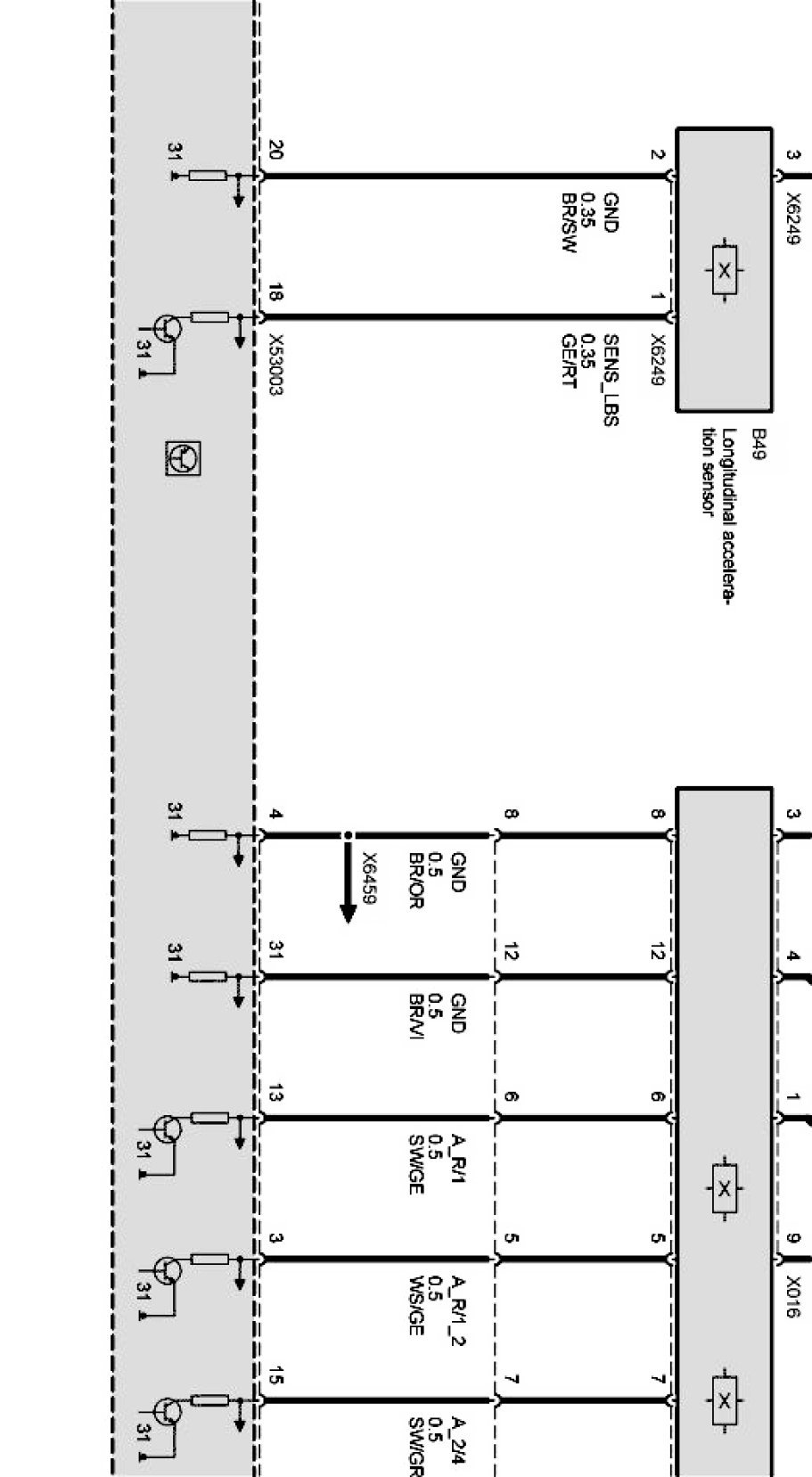

Sensor system Part 1:

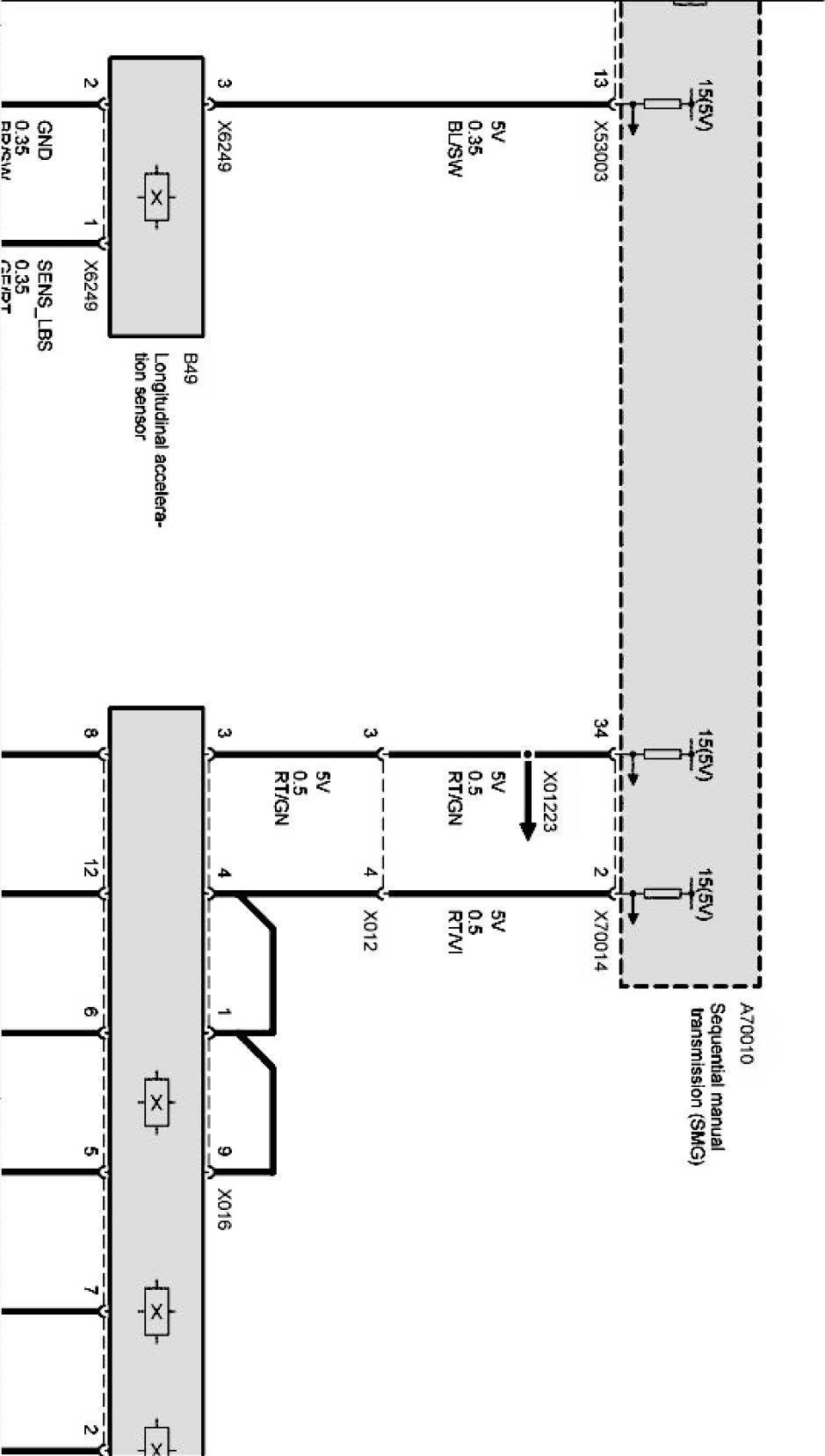

Sensor system Part 2:

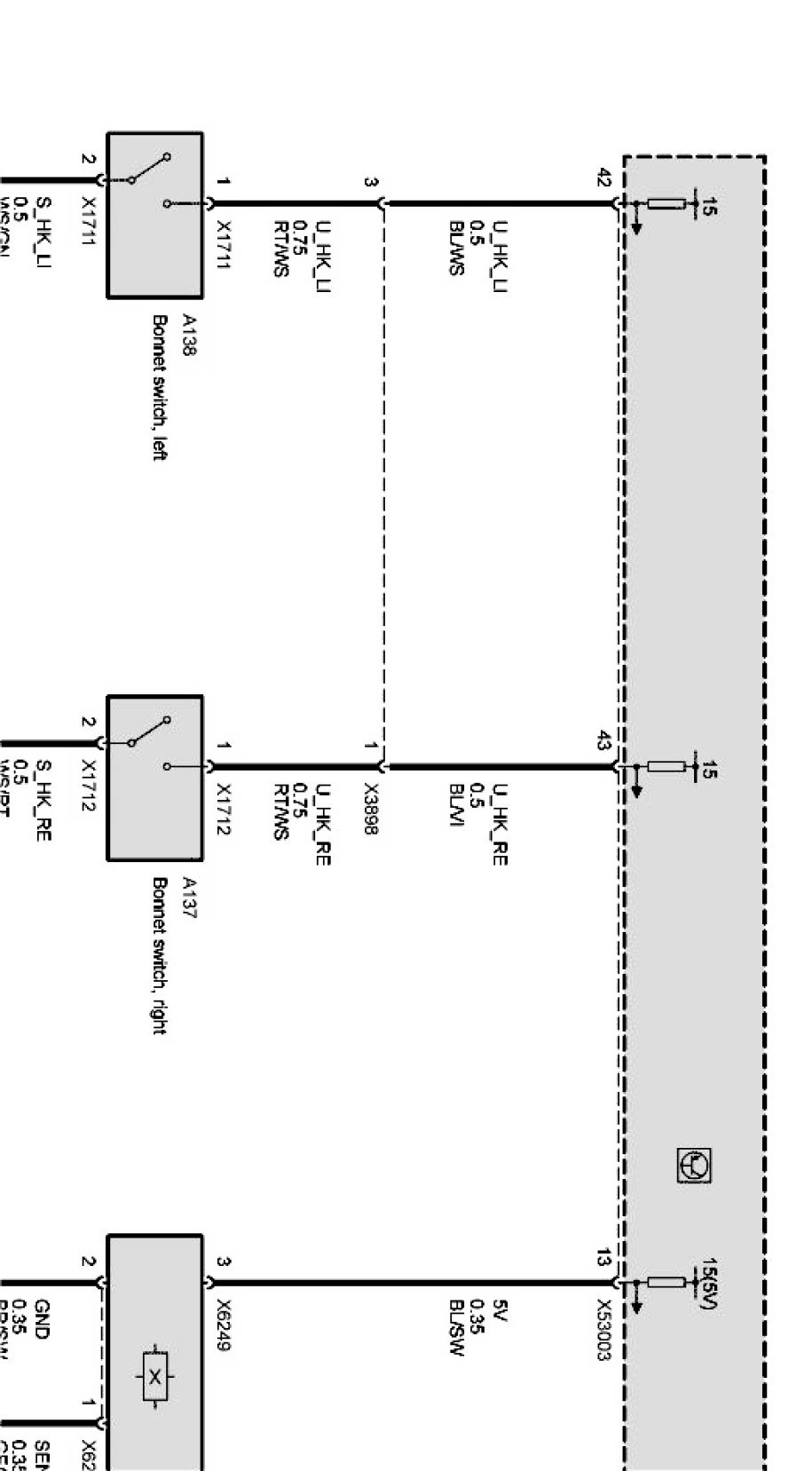

Sensor system Part 3:

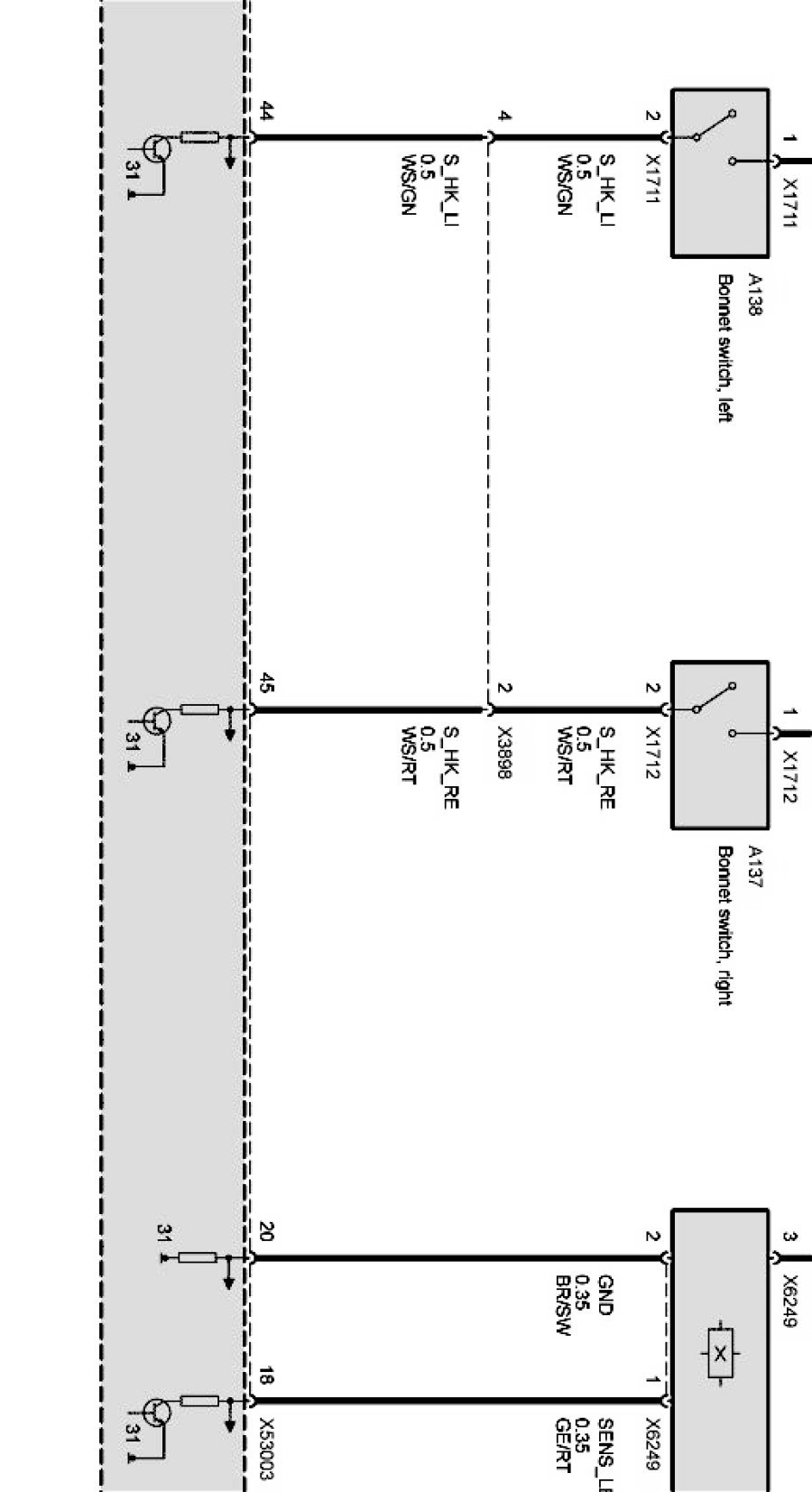

Sensor system Part 4:



Sensor system Part 5:



Sensor system Part 6:



Sensor system Part 7:
