BMW
>>
2007
>>
M6 Convertible (E64) V10-5.0L (S85)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Drive
>>
SMG Transmission Control (SMG Sequential Manual Transmission M5/M6)
>>
SMG Control Module
>>
Supply, SMG Control Module (As of 09/05)
Supply, SMG Control Module (As of 09/05)

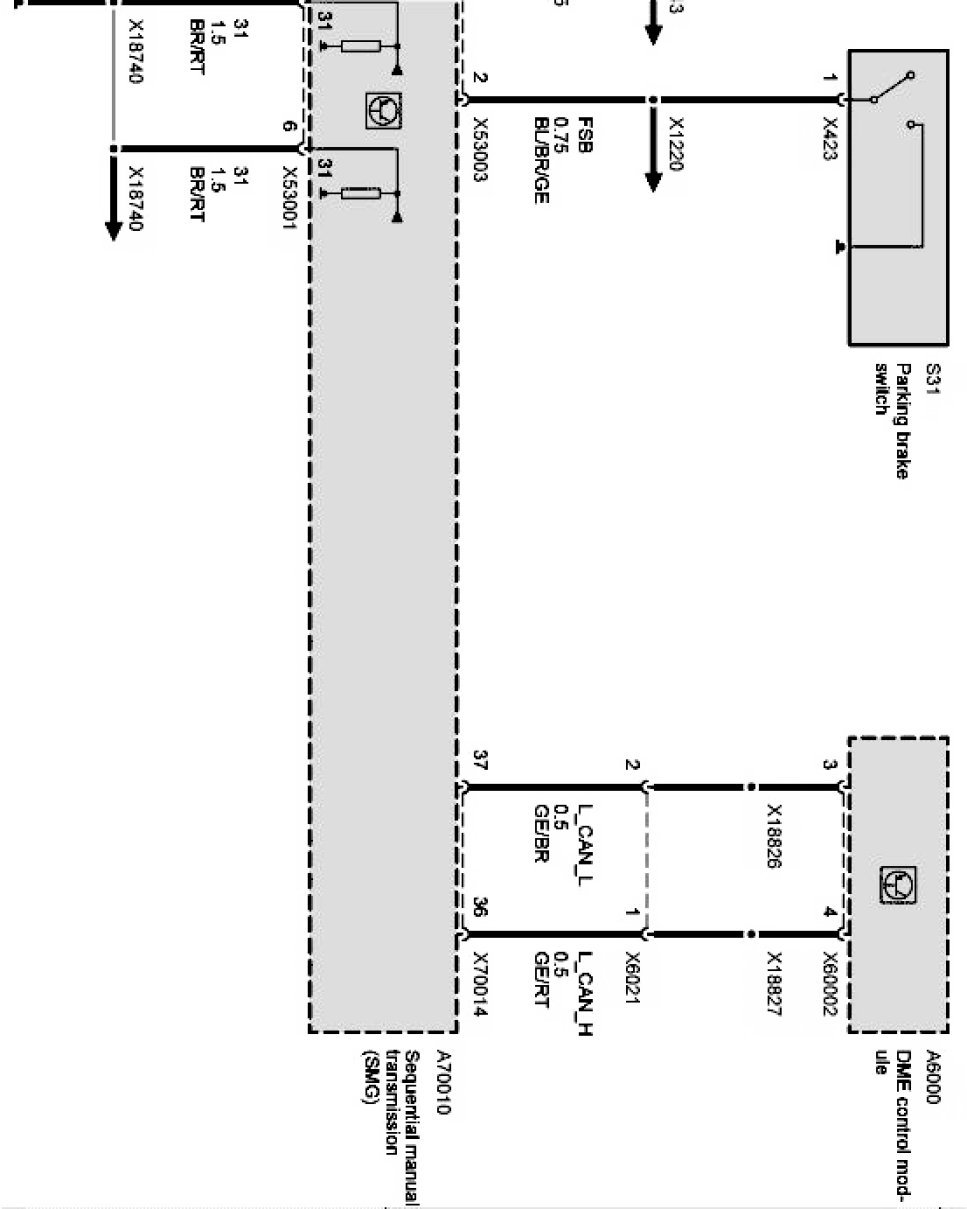

Supply, SMG control module Part 1:

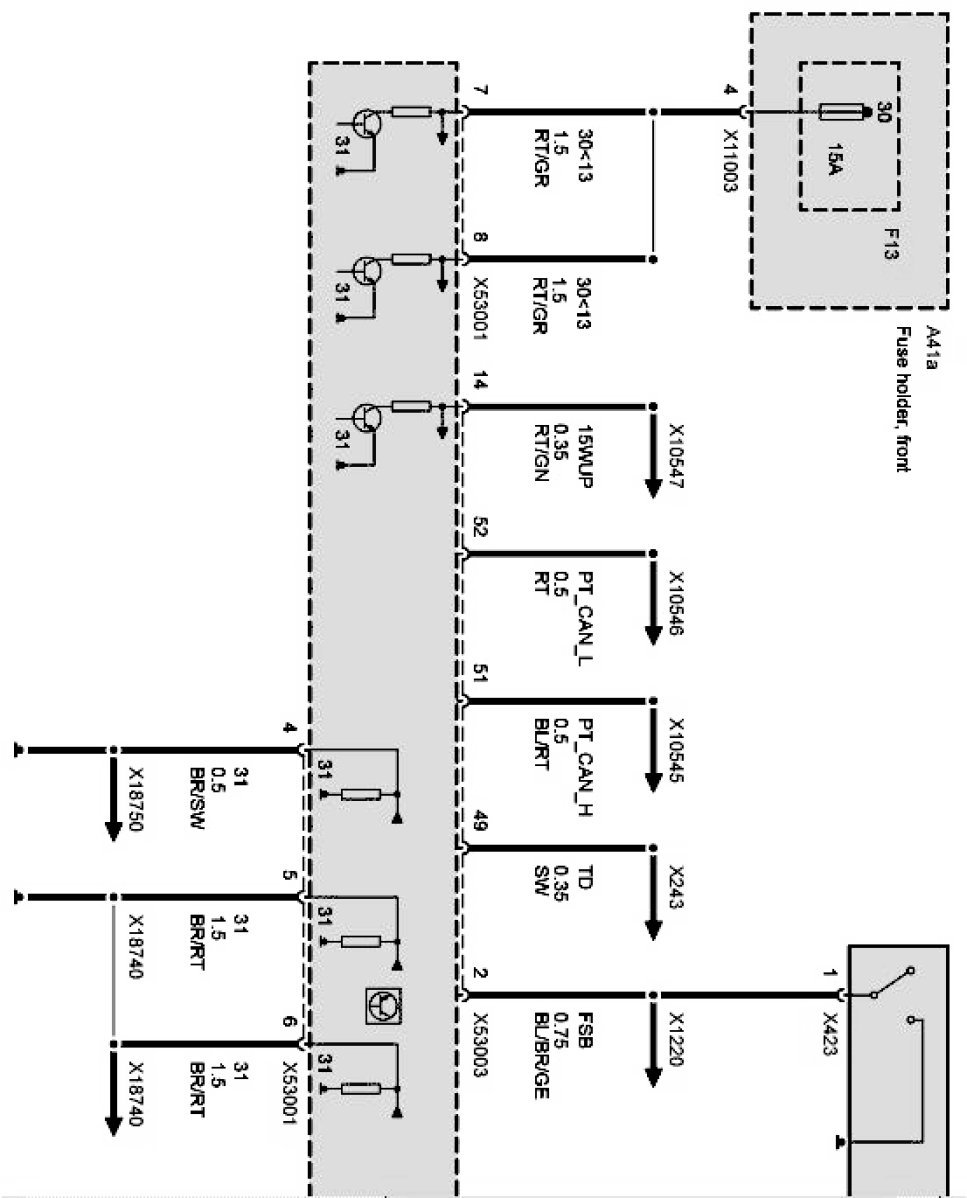

Supply, SMG control module Part 2:
