Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Drive >> SMG Transmission Control (SMG Sequential Manual Transmission M5/M6) >> Clutch

Clutch

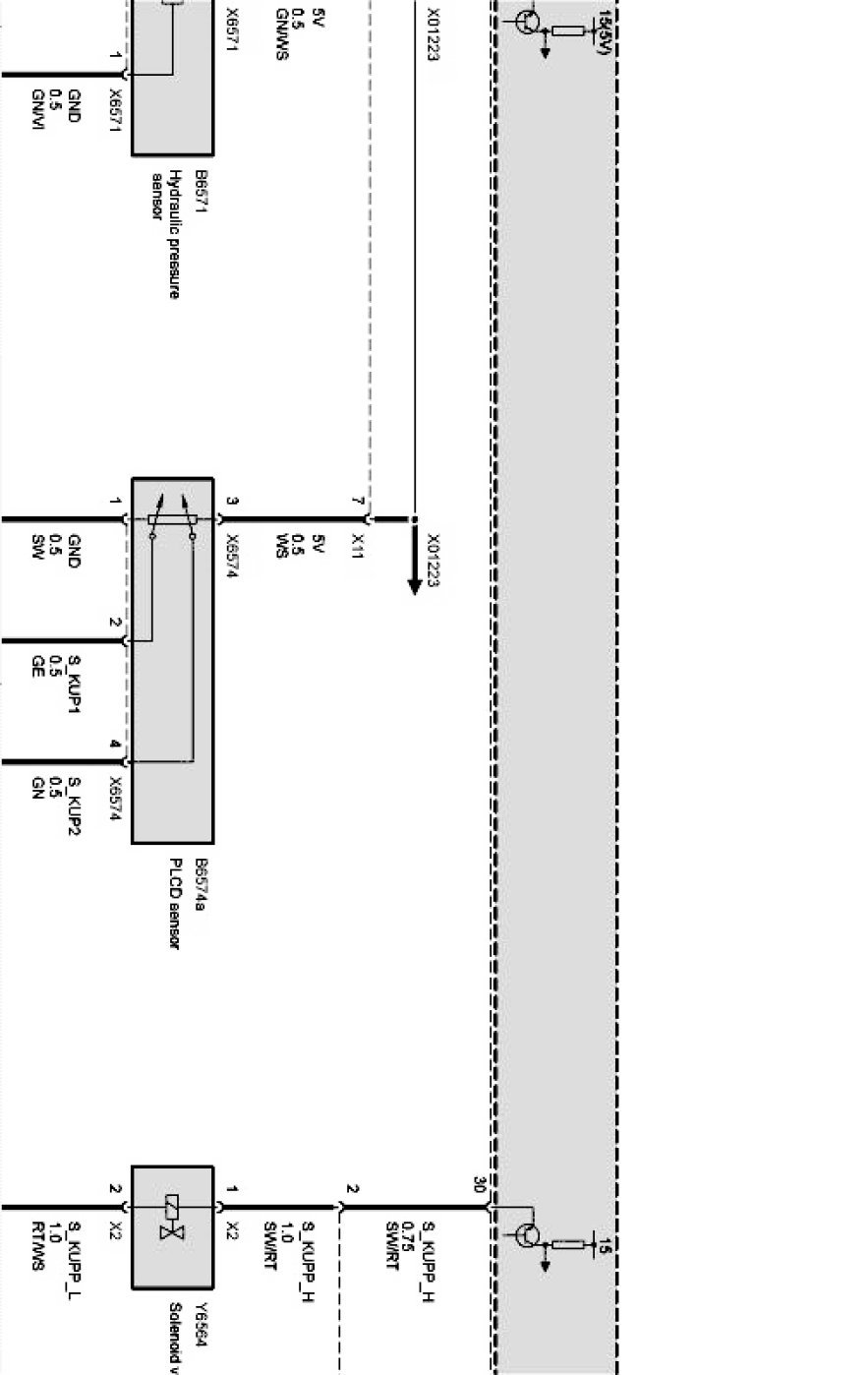

Hydraulic system SMG Part 1:

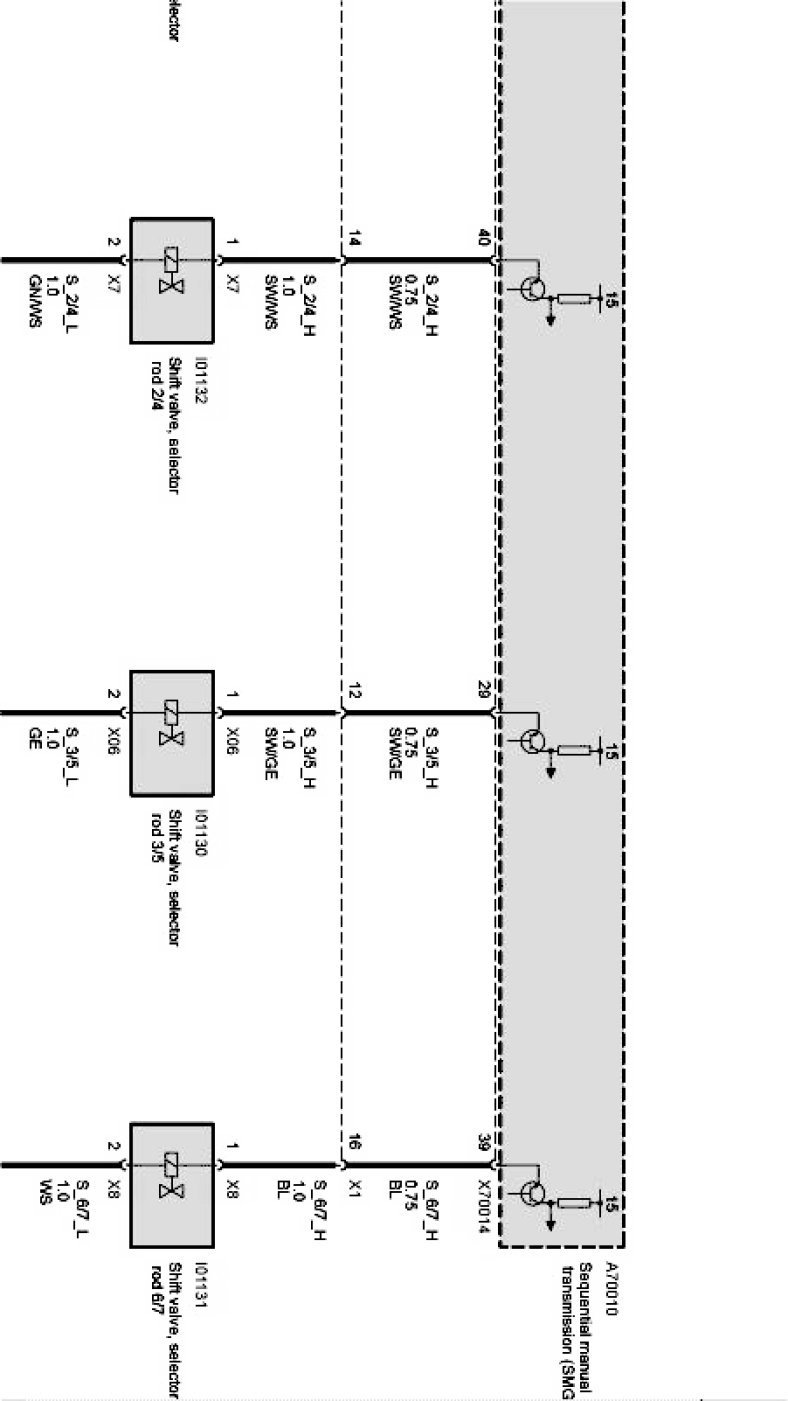

Hydraulic system SMG Part 2:

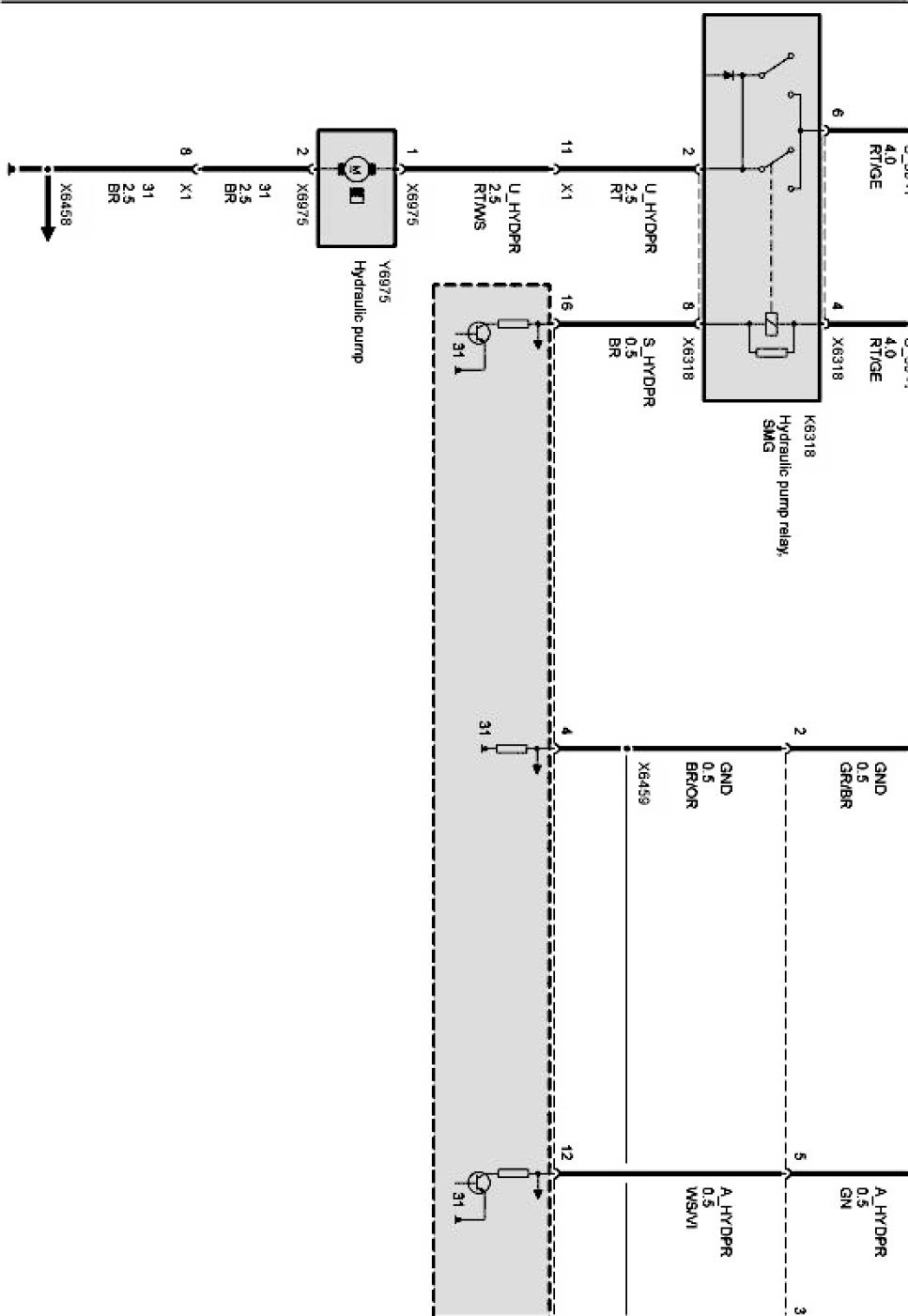

Hydraulic system SMG Part 3:

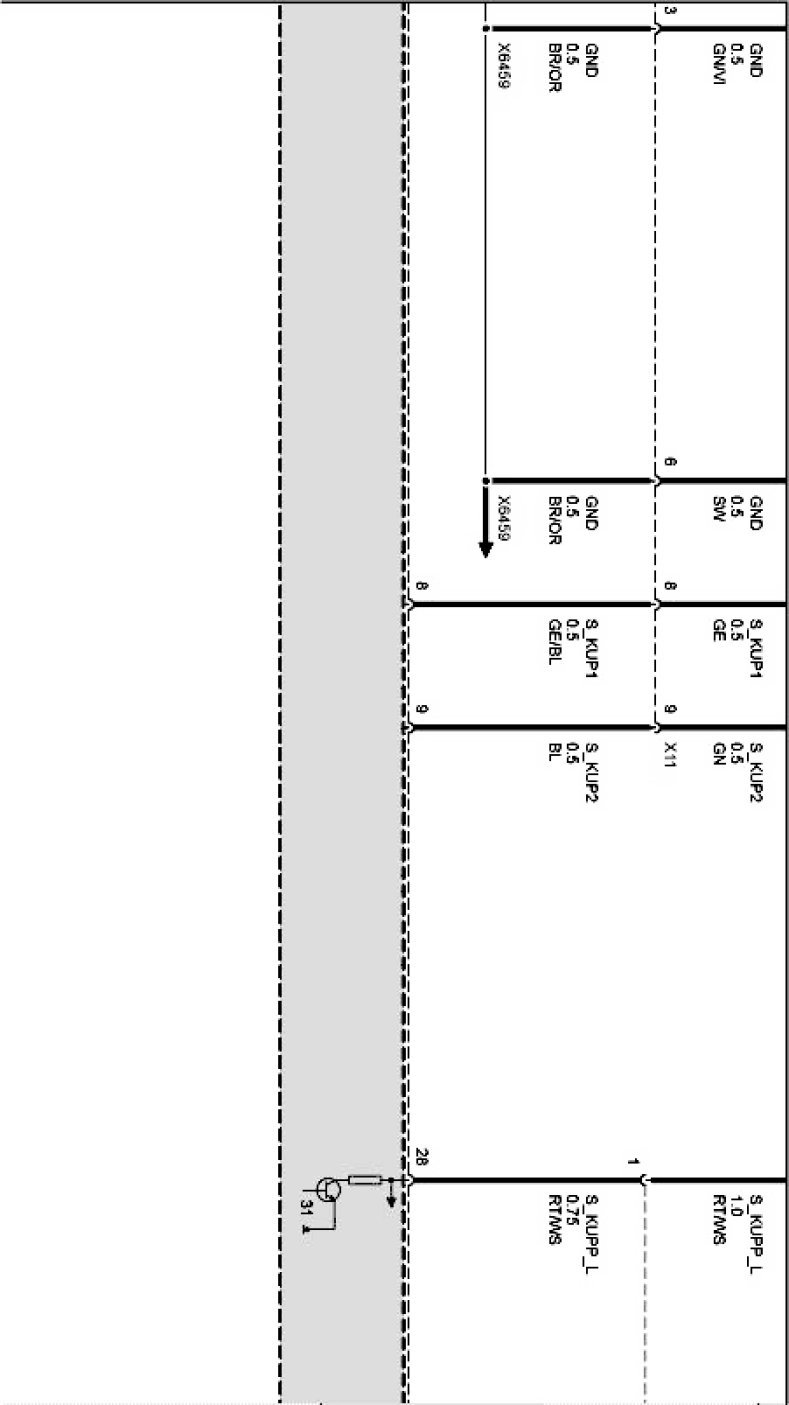

Hydraulic system SMG Part 4:

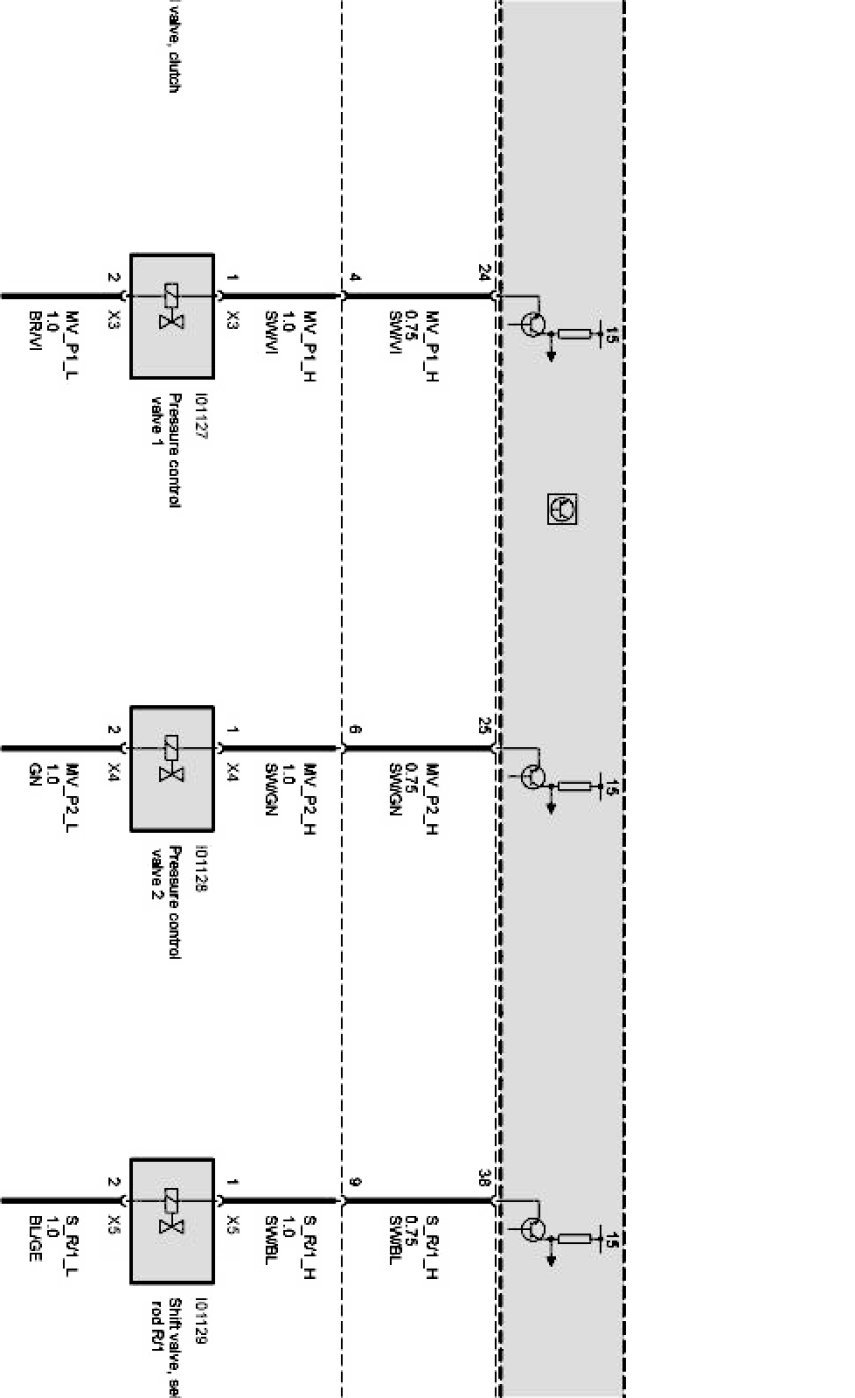

Hydraulic system SMG Part 5:

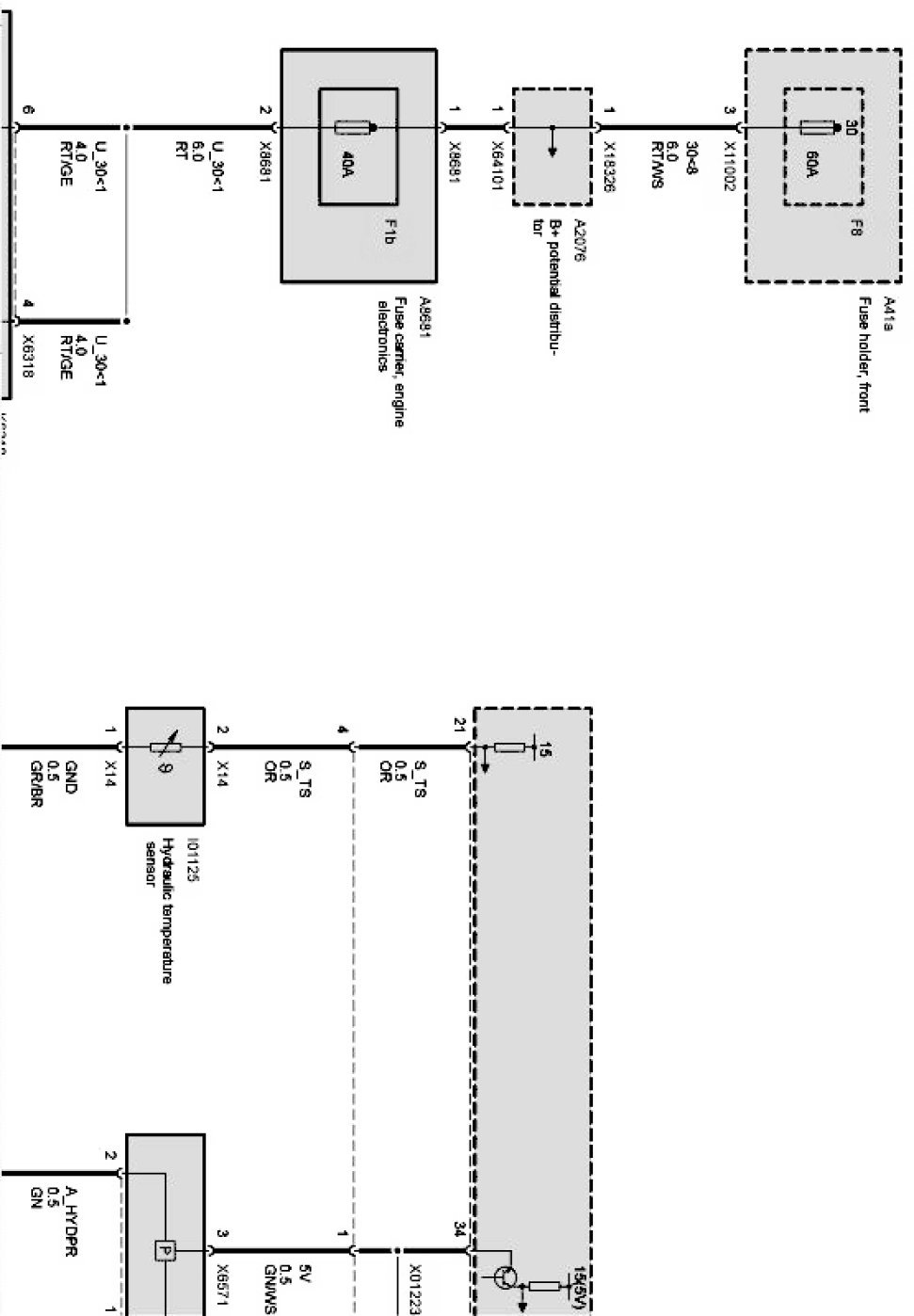

Hydraulic system SMG Part 6:
