Throttle Valve CAN

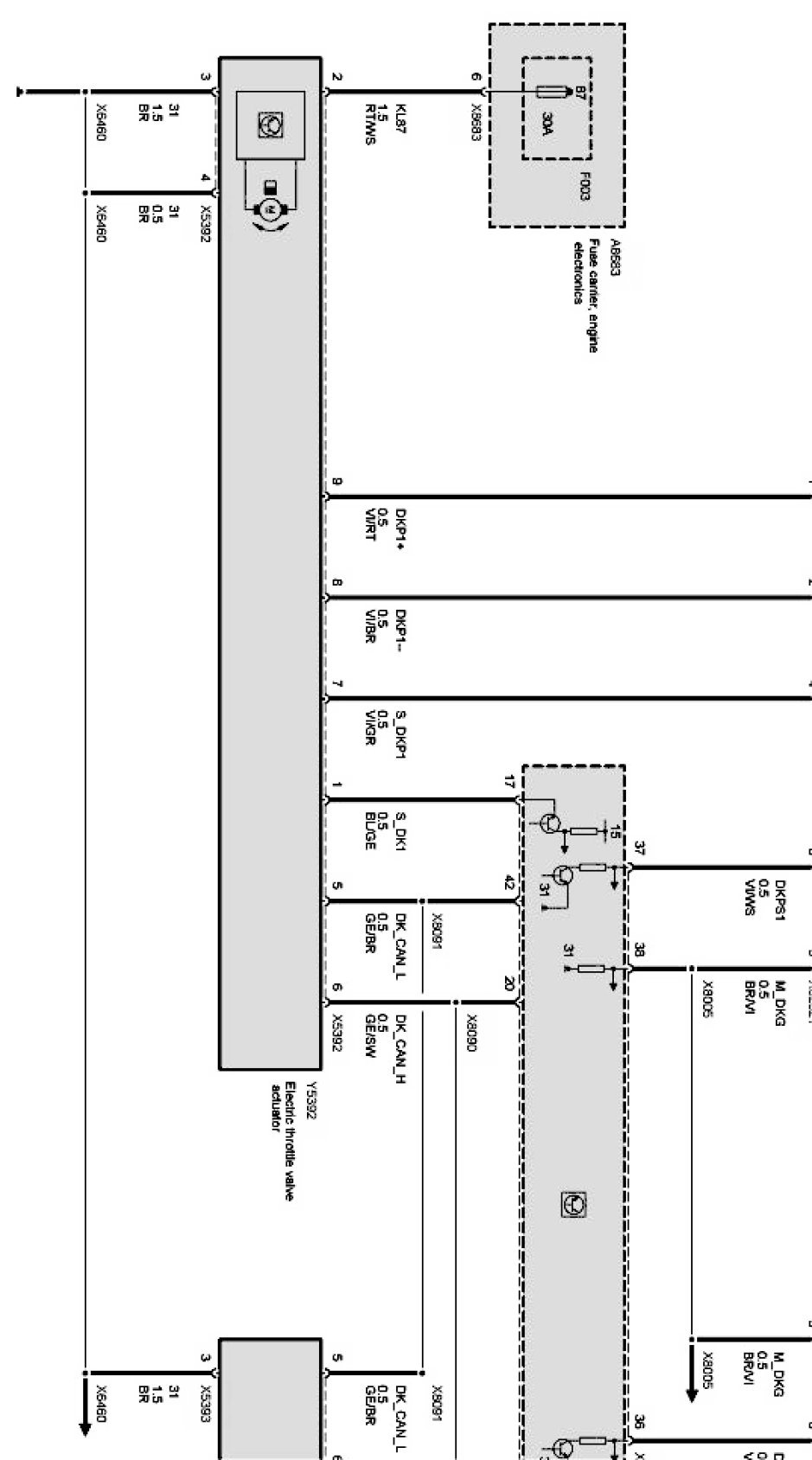

Electric throttle valve Part 1:

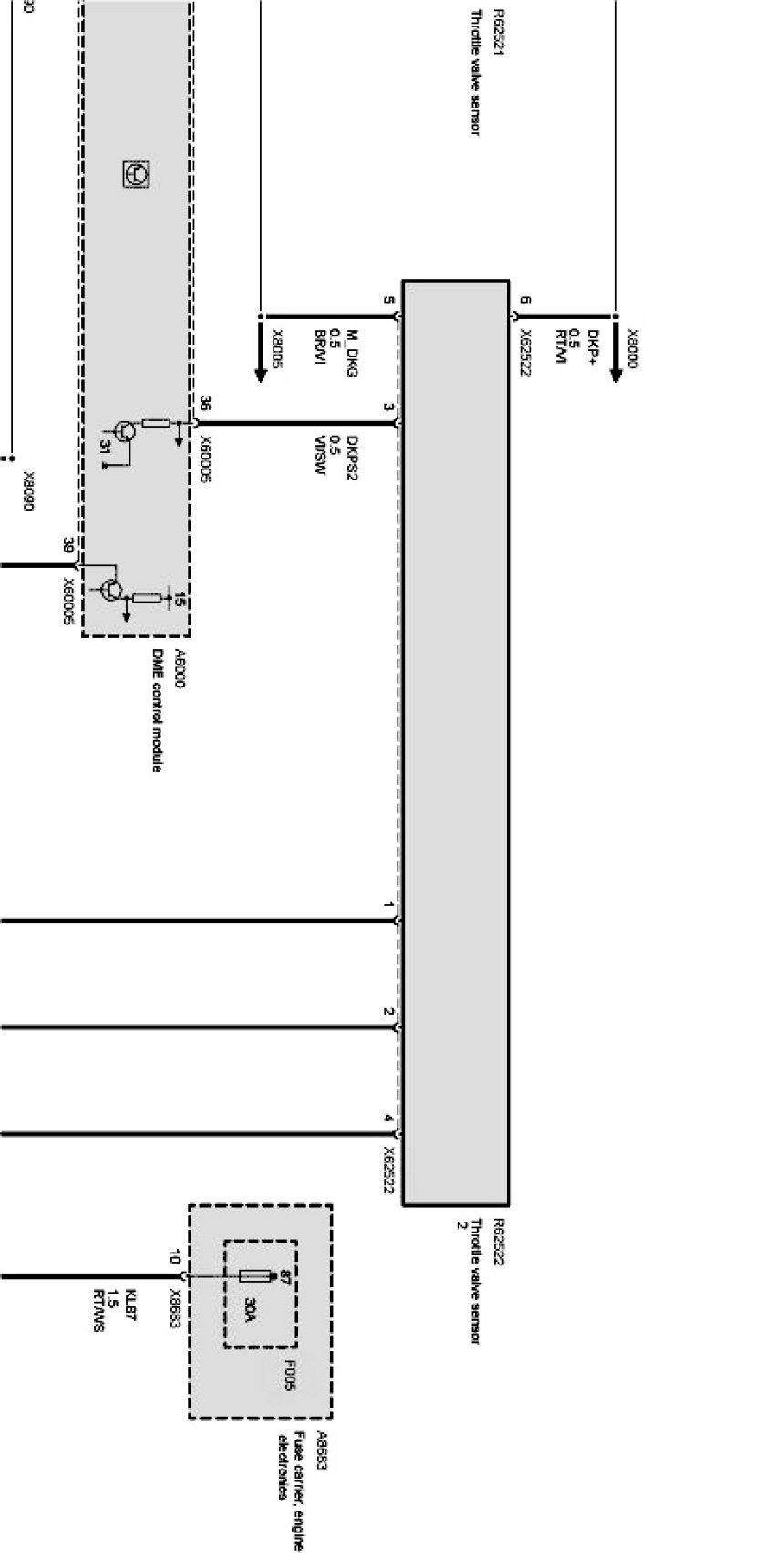

Electric throttle valve Part 2:

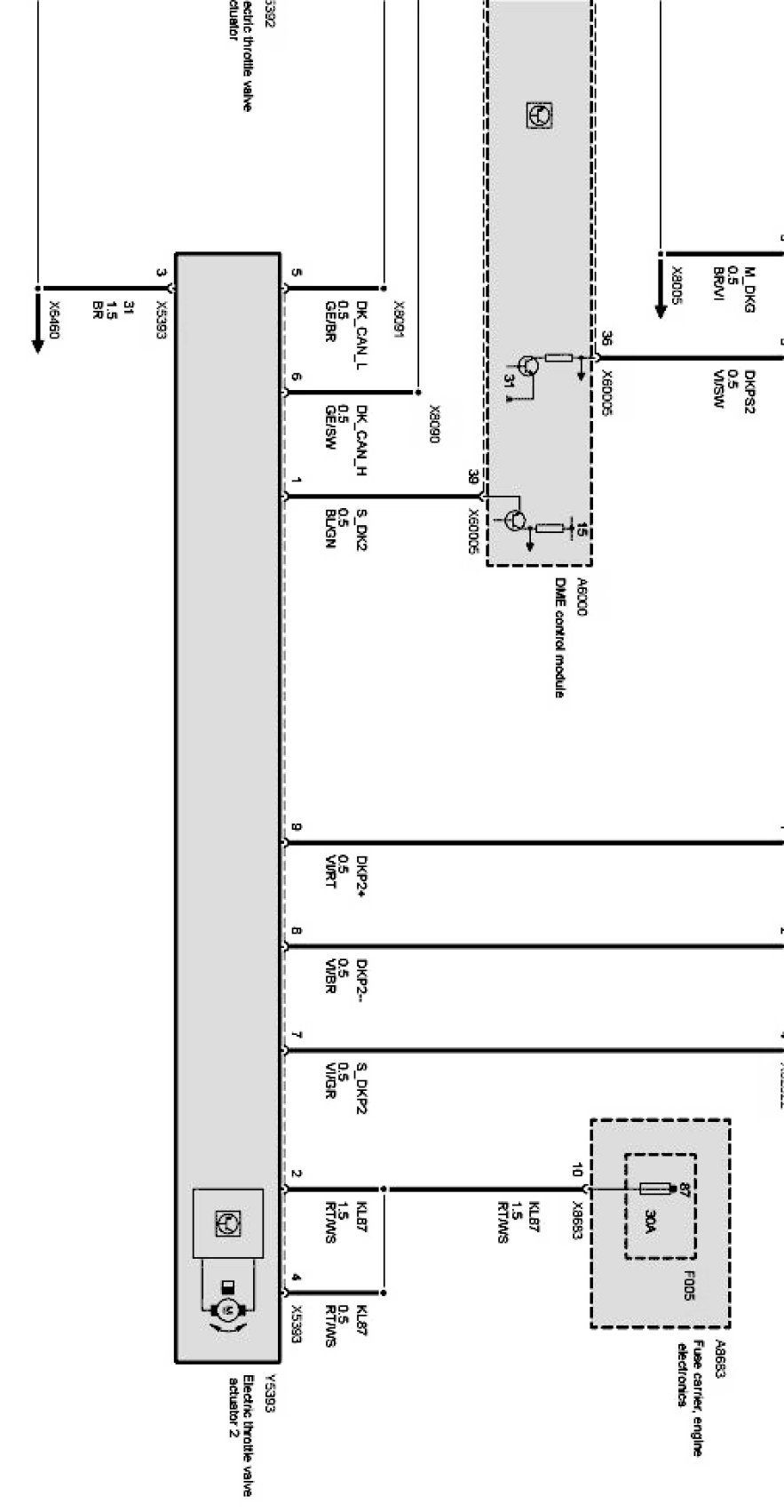

Electric throttle valve Part 3:



Electric throttle valve Part 4:
