Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Drive >> Motor Electronics (DME Motor Electronics MSS65) >> Injection

Injection

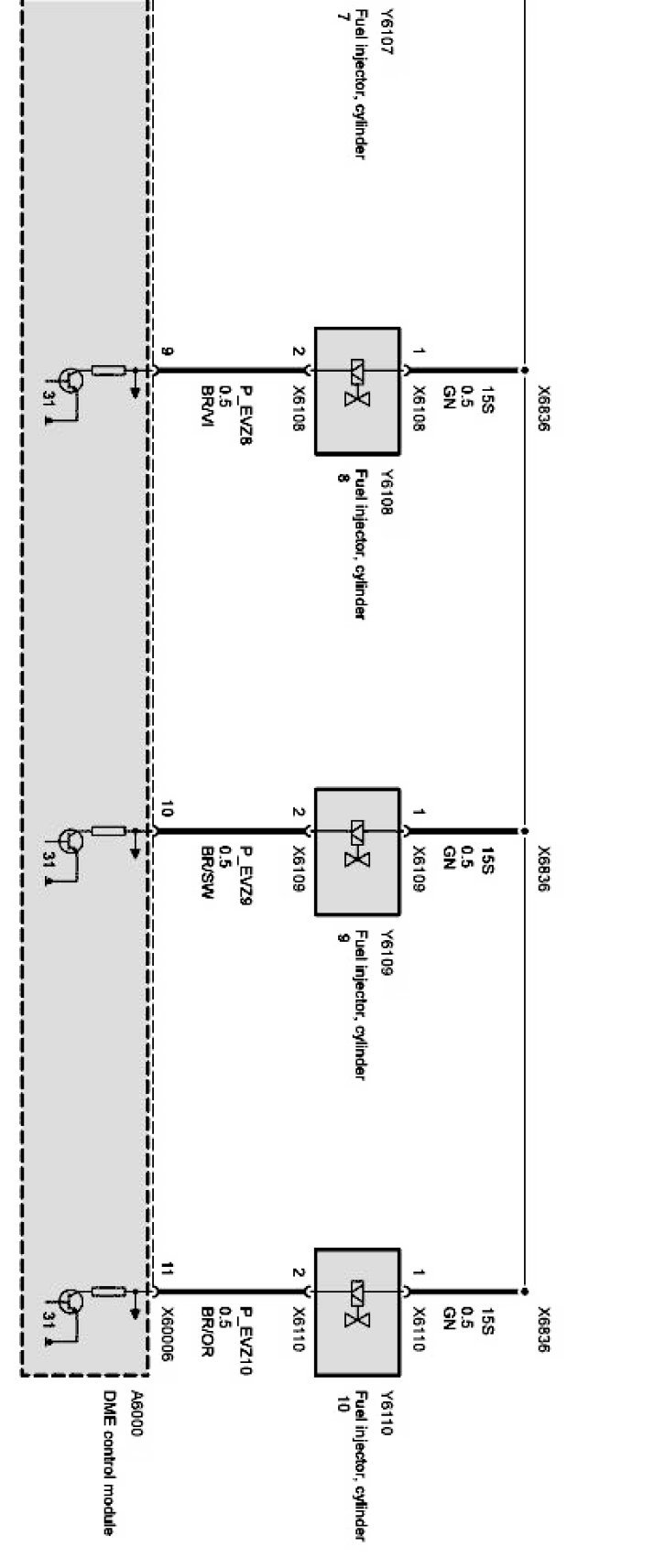

Fuel injection valves Part 1:

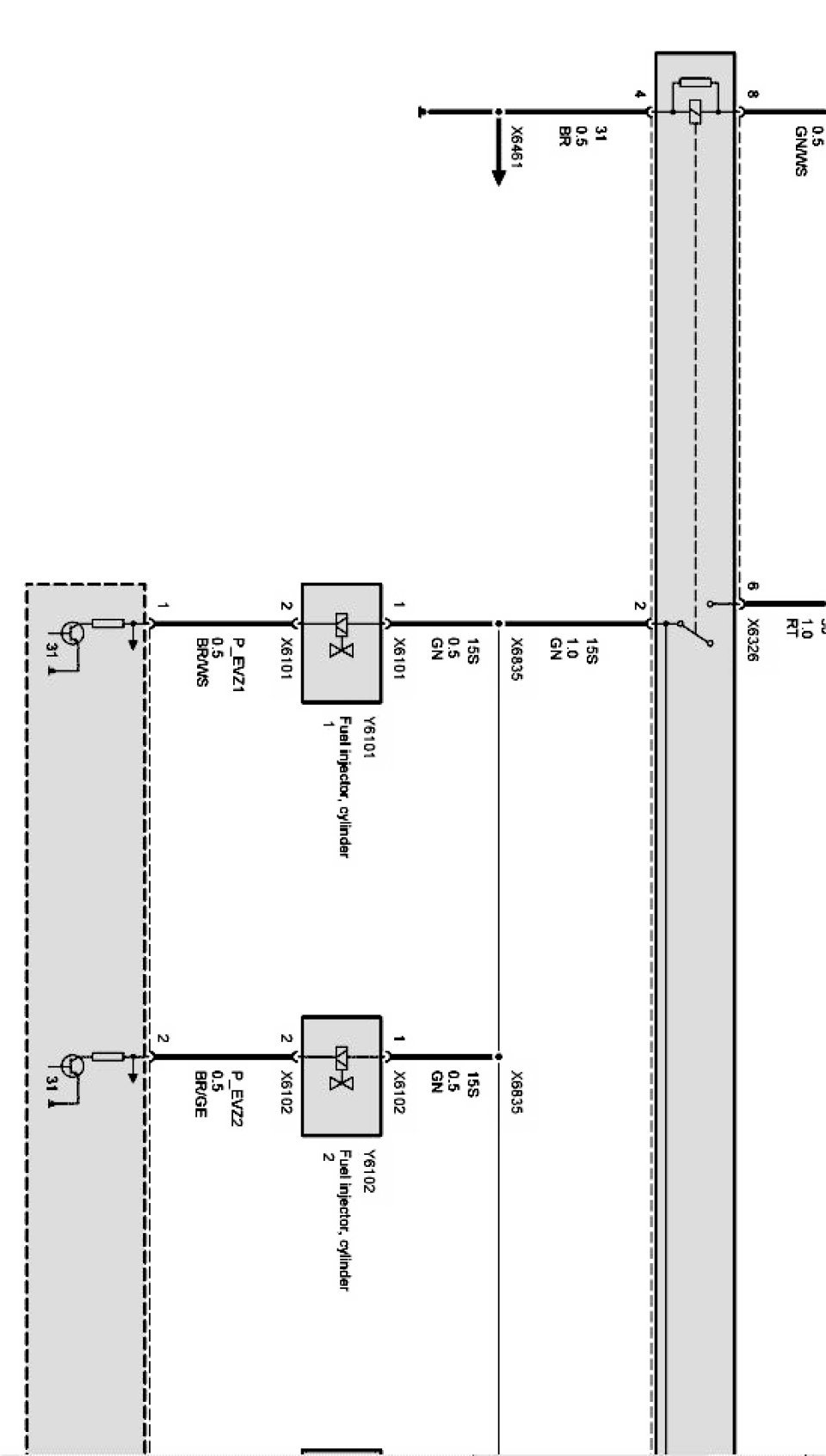

Fuel injection valves Part 2:

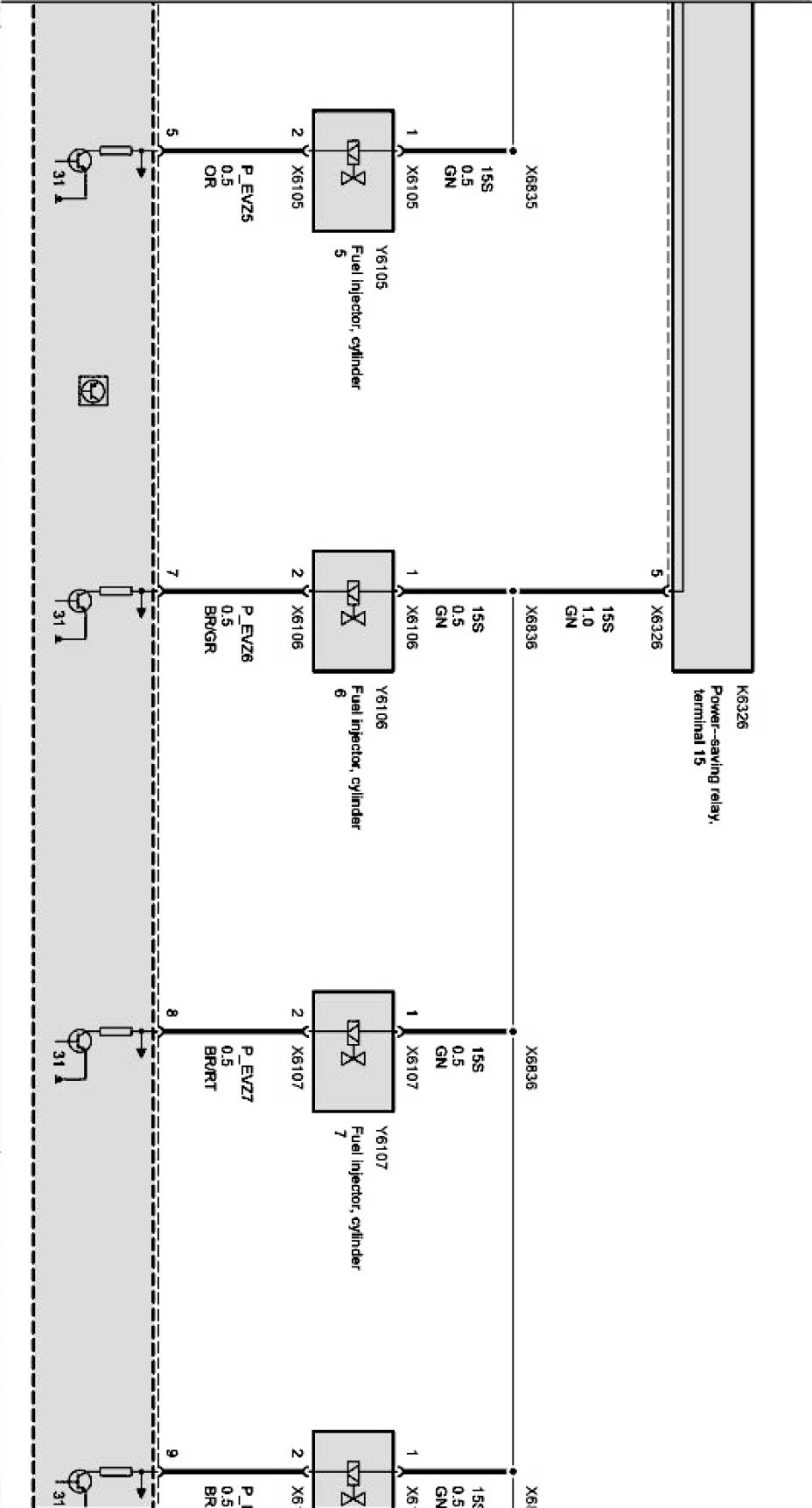

Fuel injection valves Part 3:

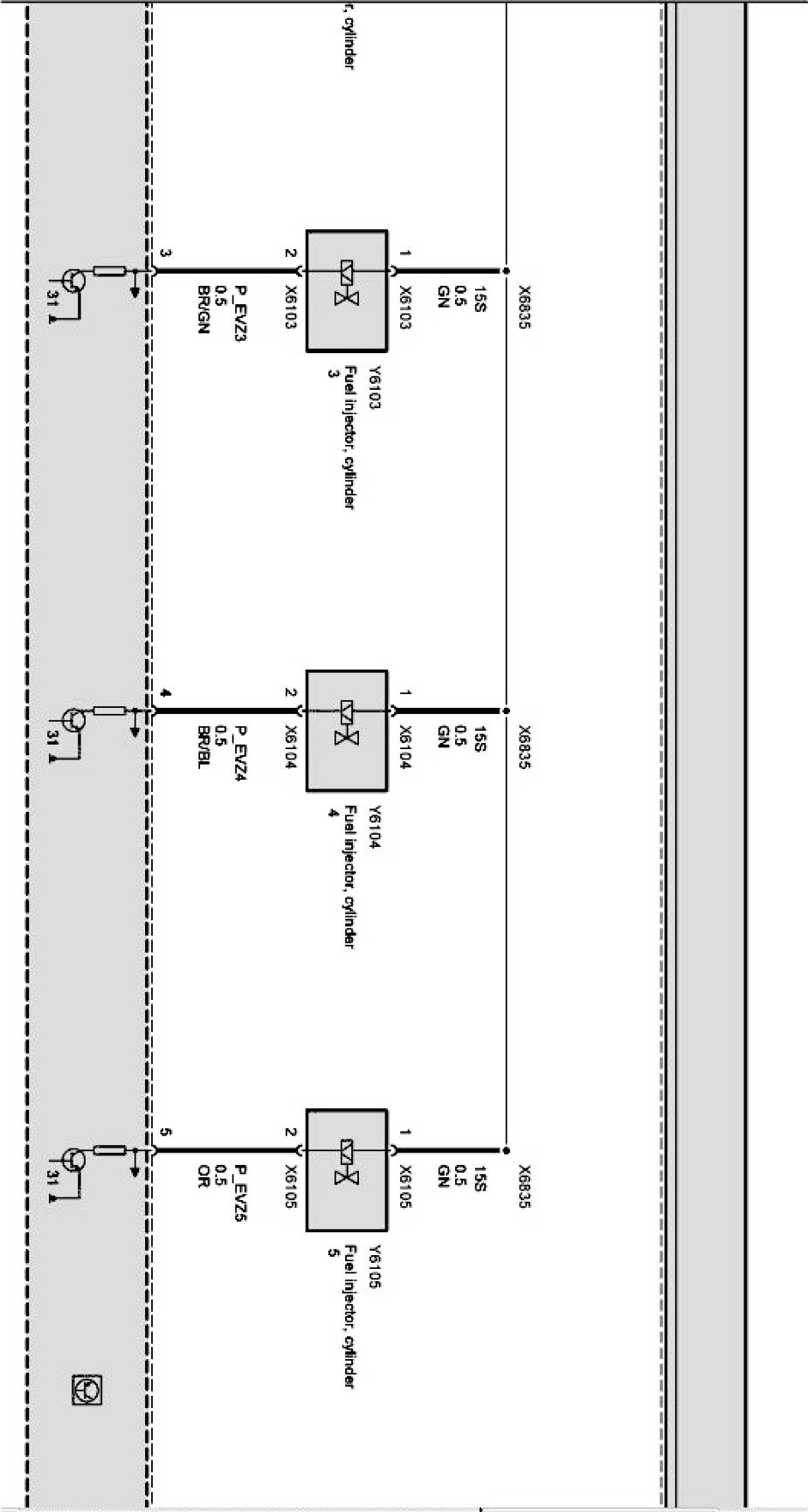

Fuel injection valves Part 4:

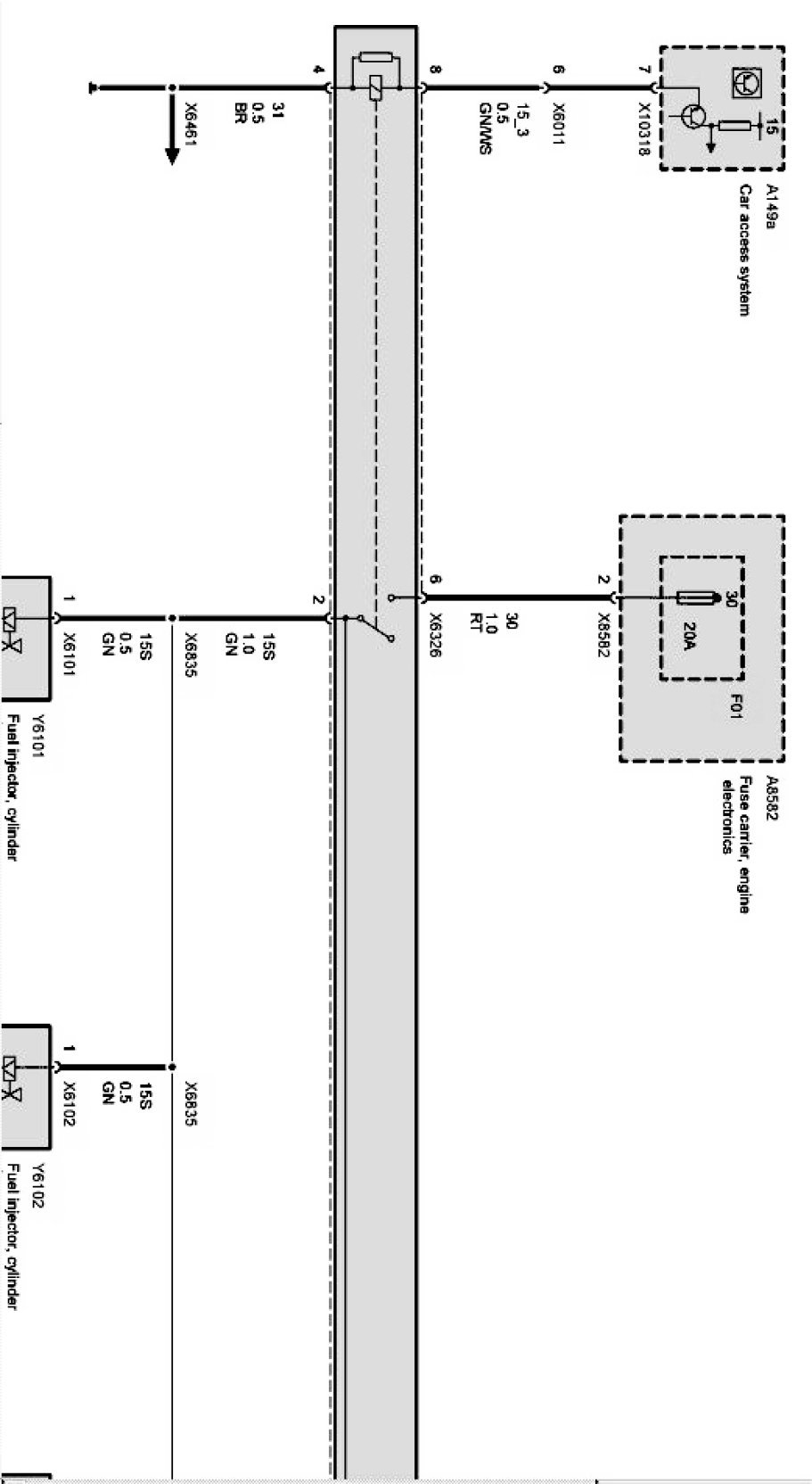

Fuel injection valves Part 5:
