Control-Module Test

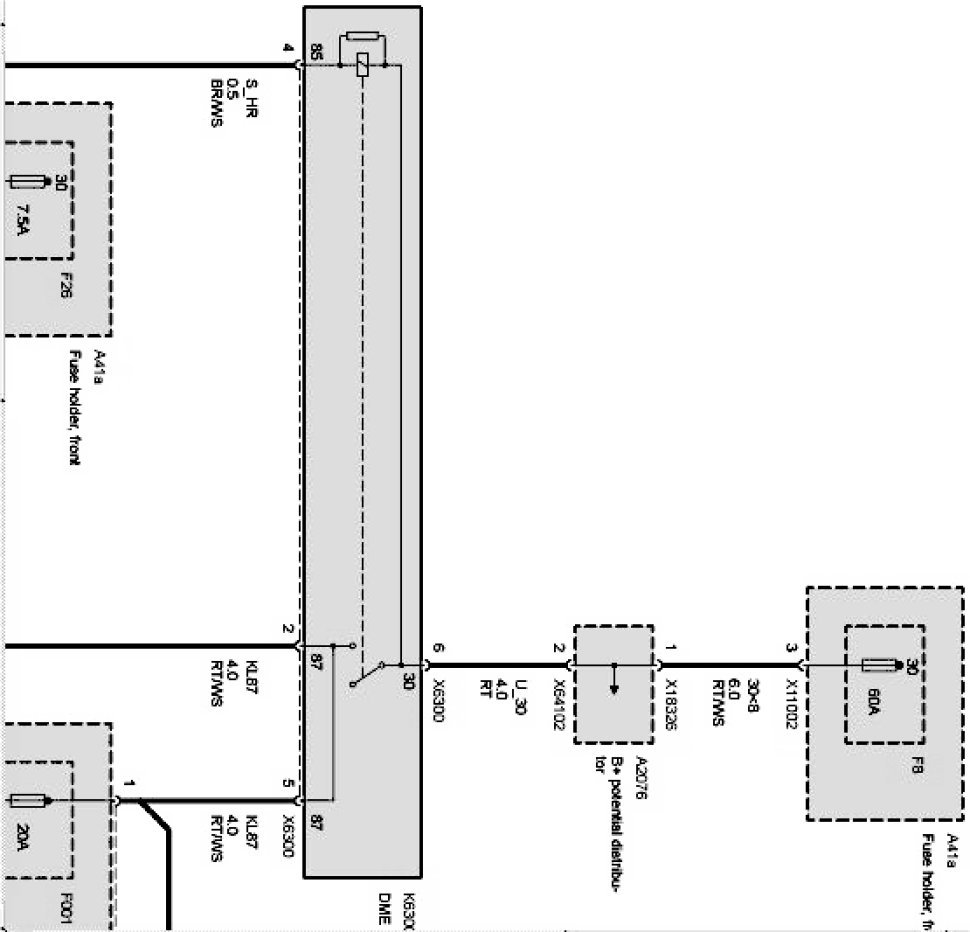

Supply, DME control module Part 1:

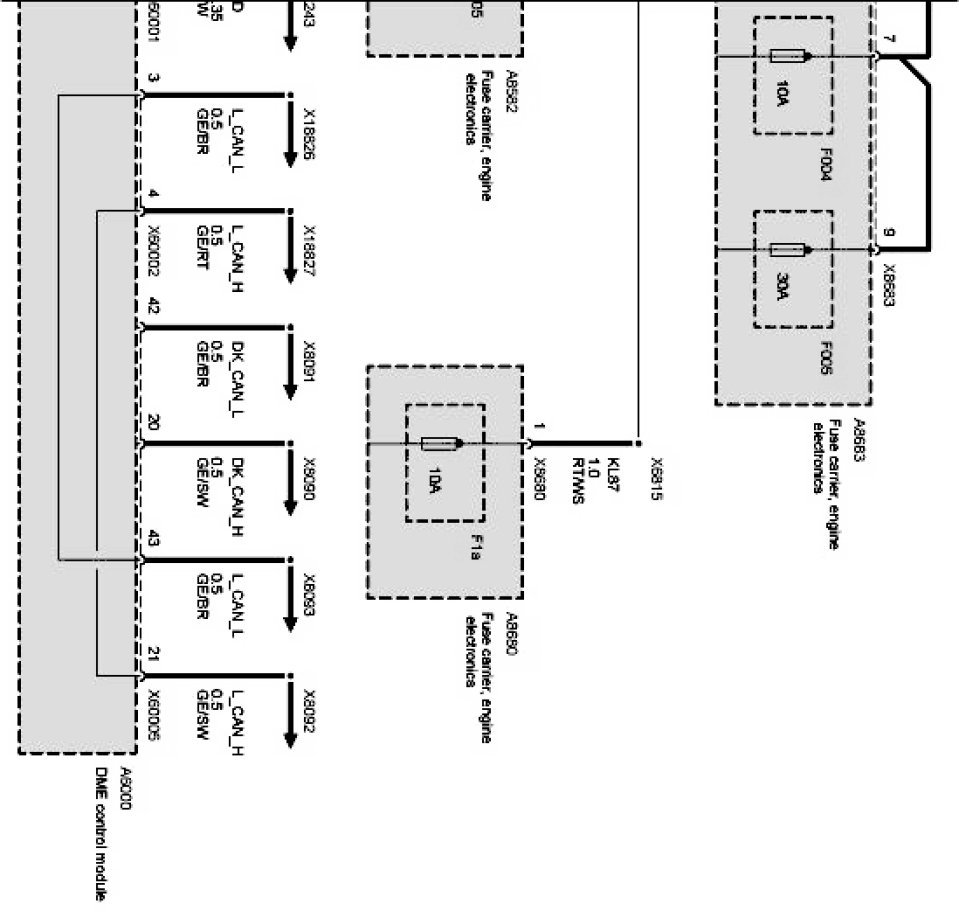

Supply, DME control module Part 2:

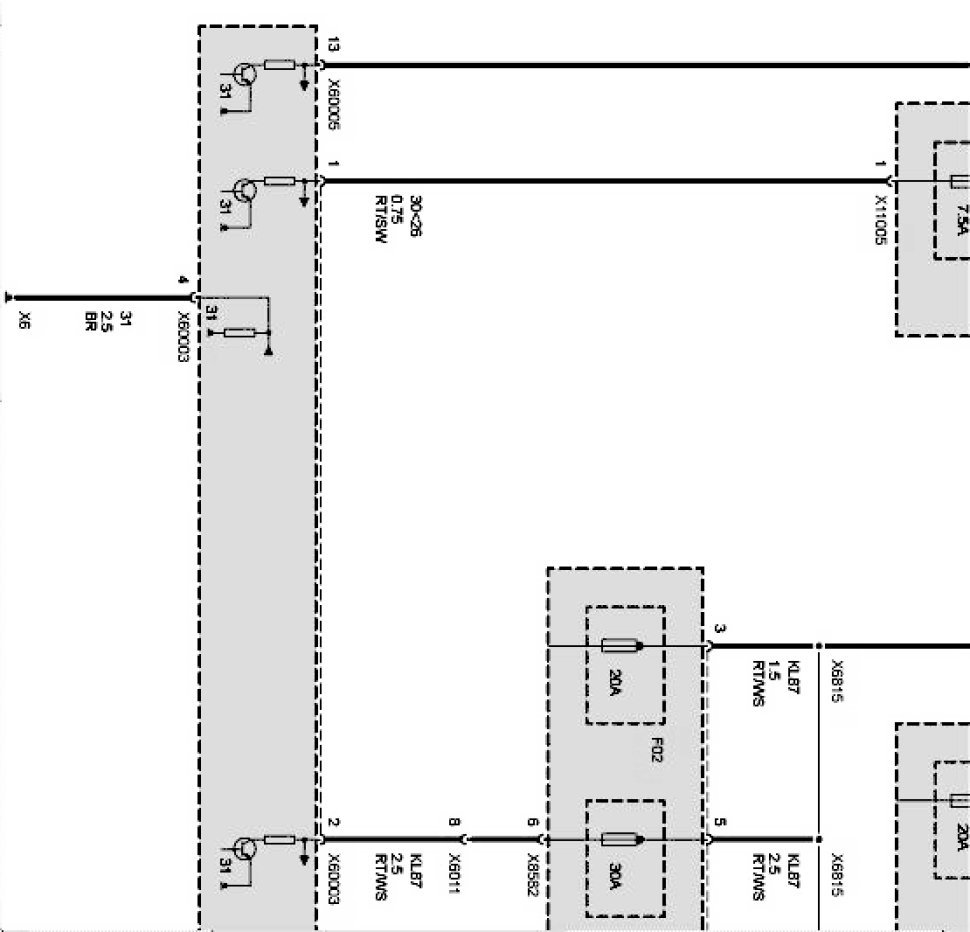

Supply, DME control module Part 3:

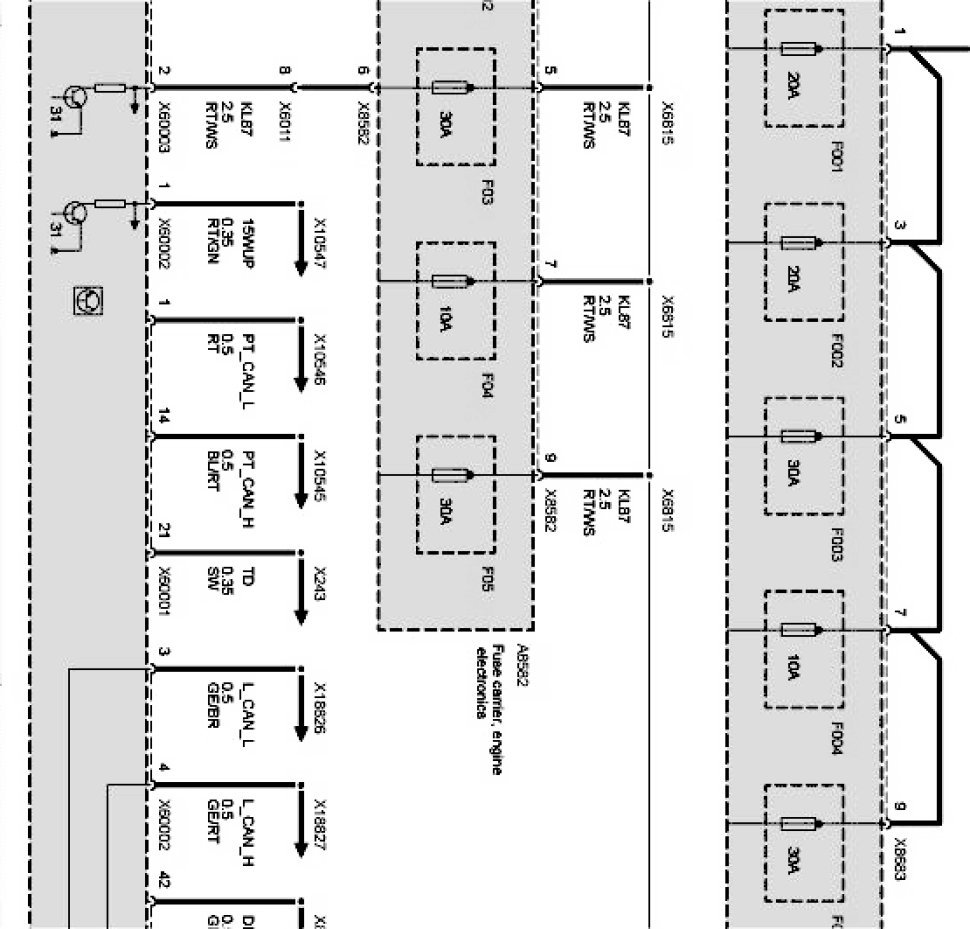

Supply, DME control module Part 4:
