Convenient Start (As of 09/05)

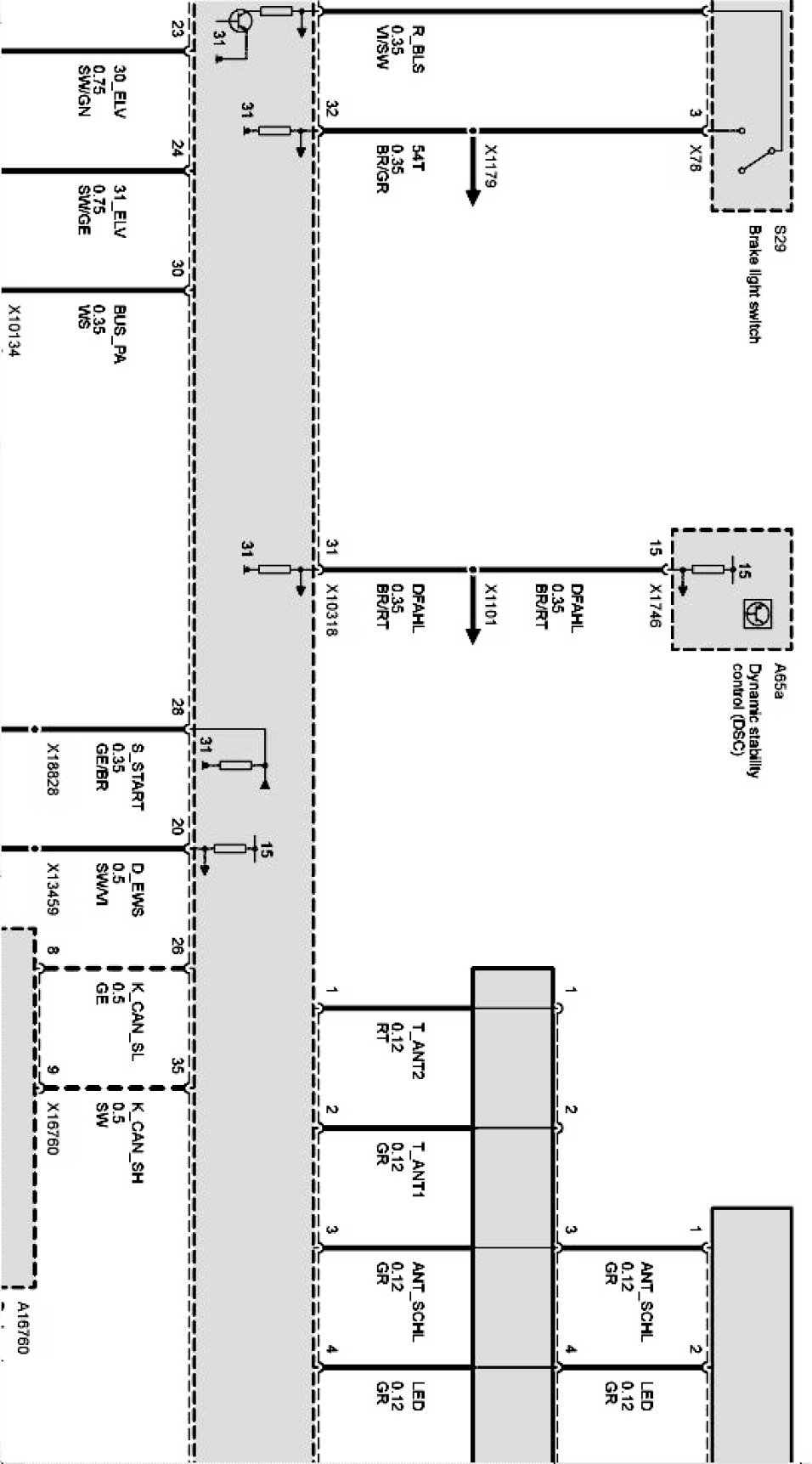

Convenient start Part 1:

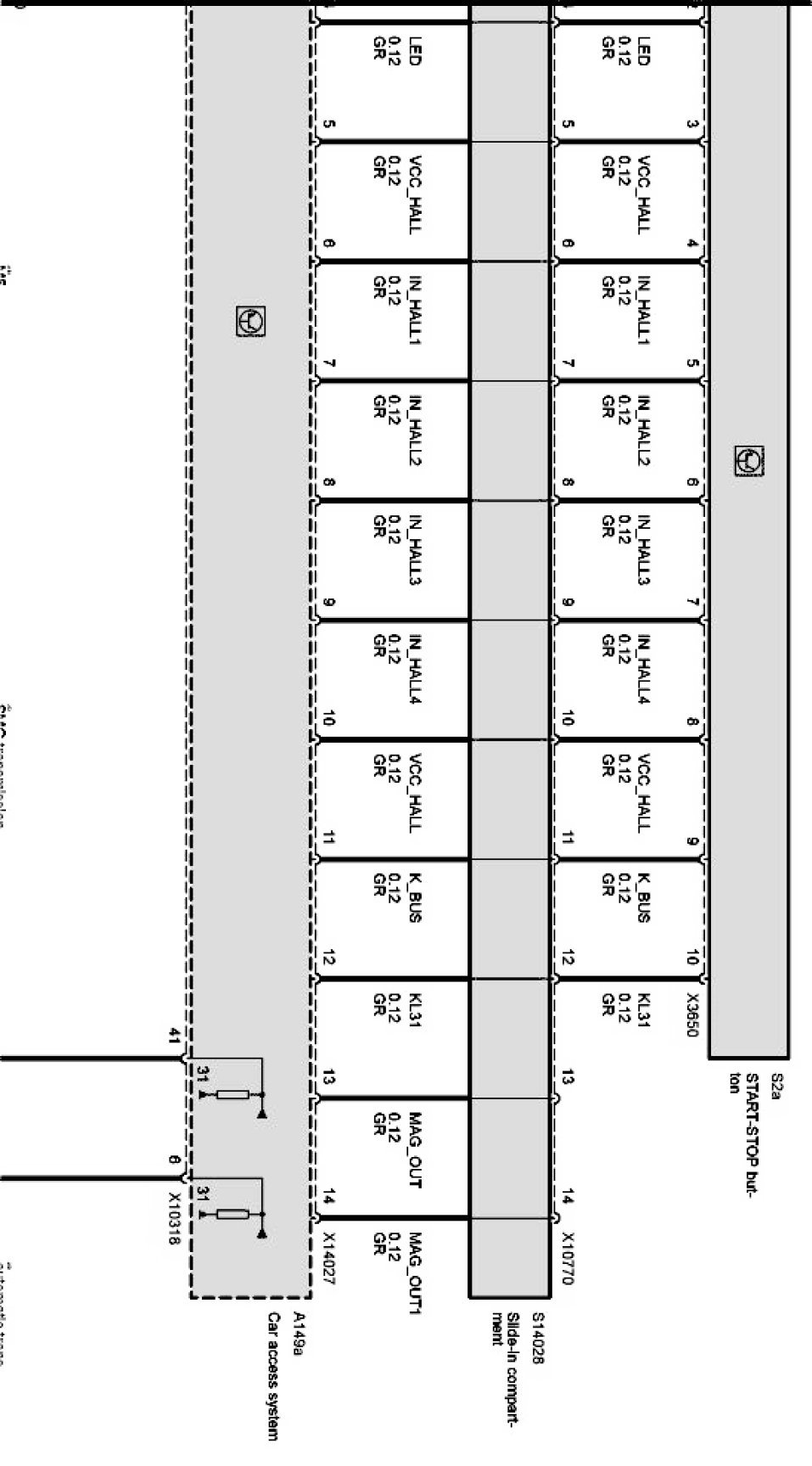

Convenient start Part 2:

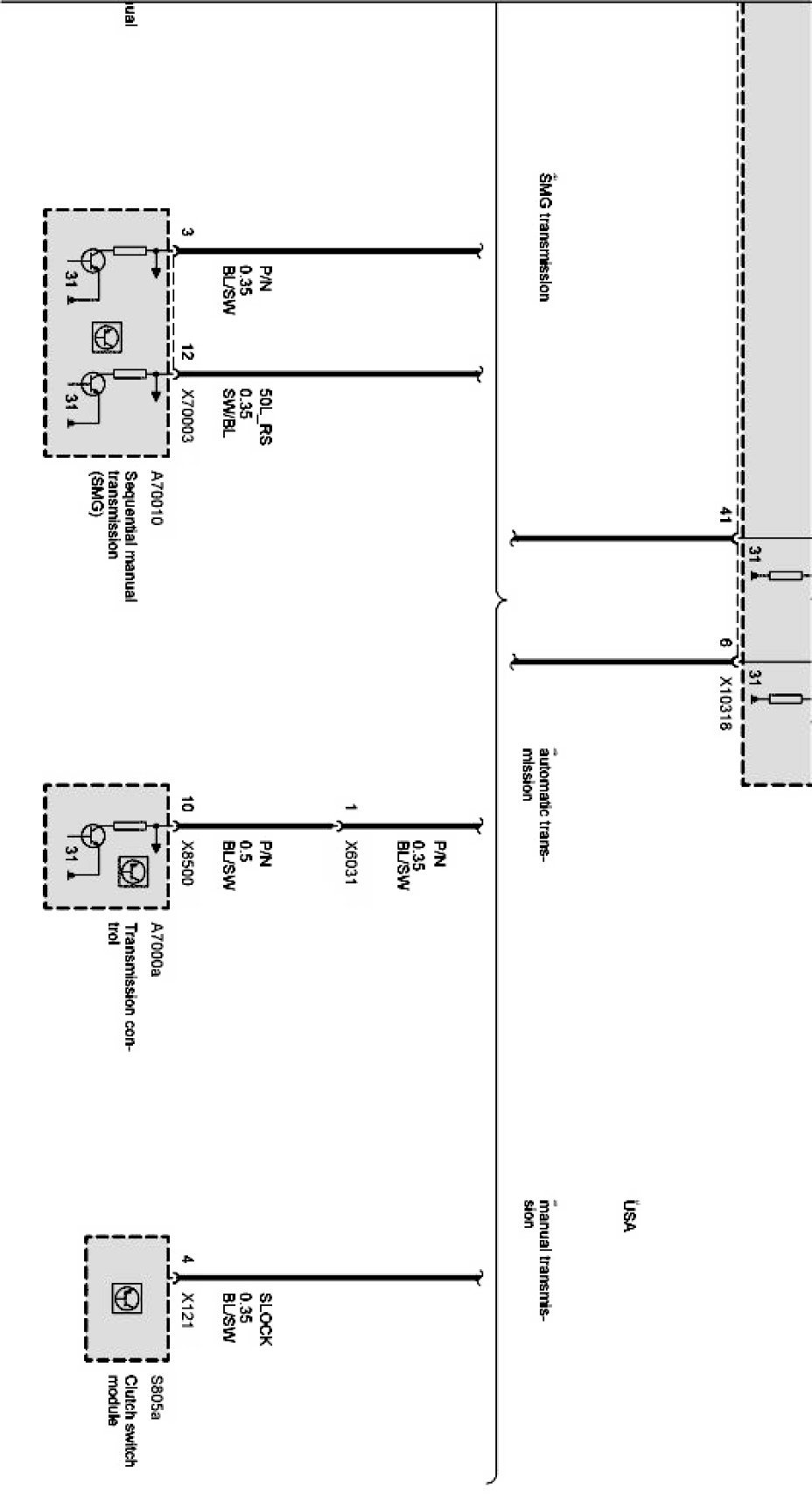

Convenient start Part 3:

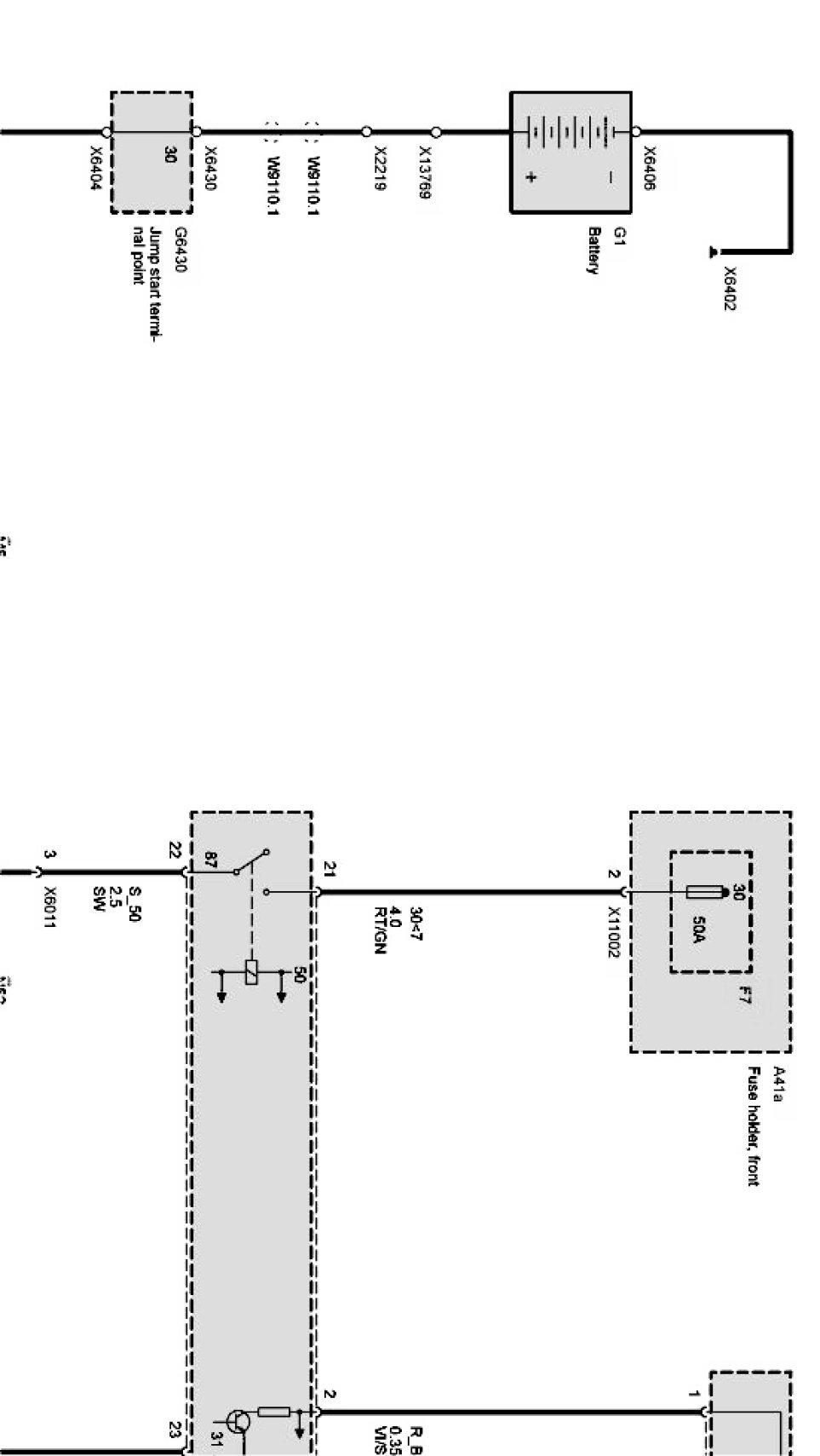

Convenient start Part 4:

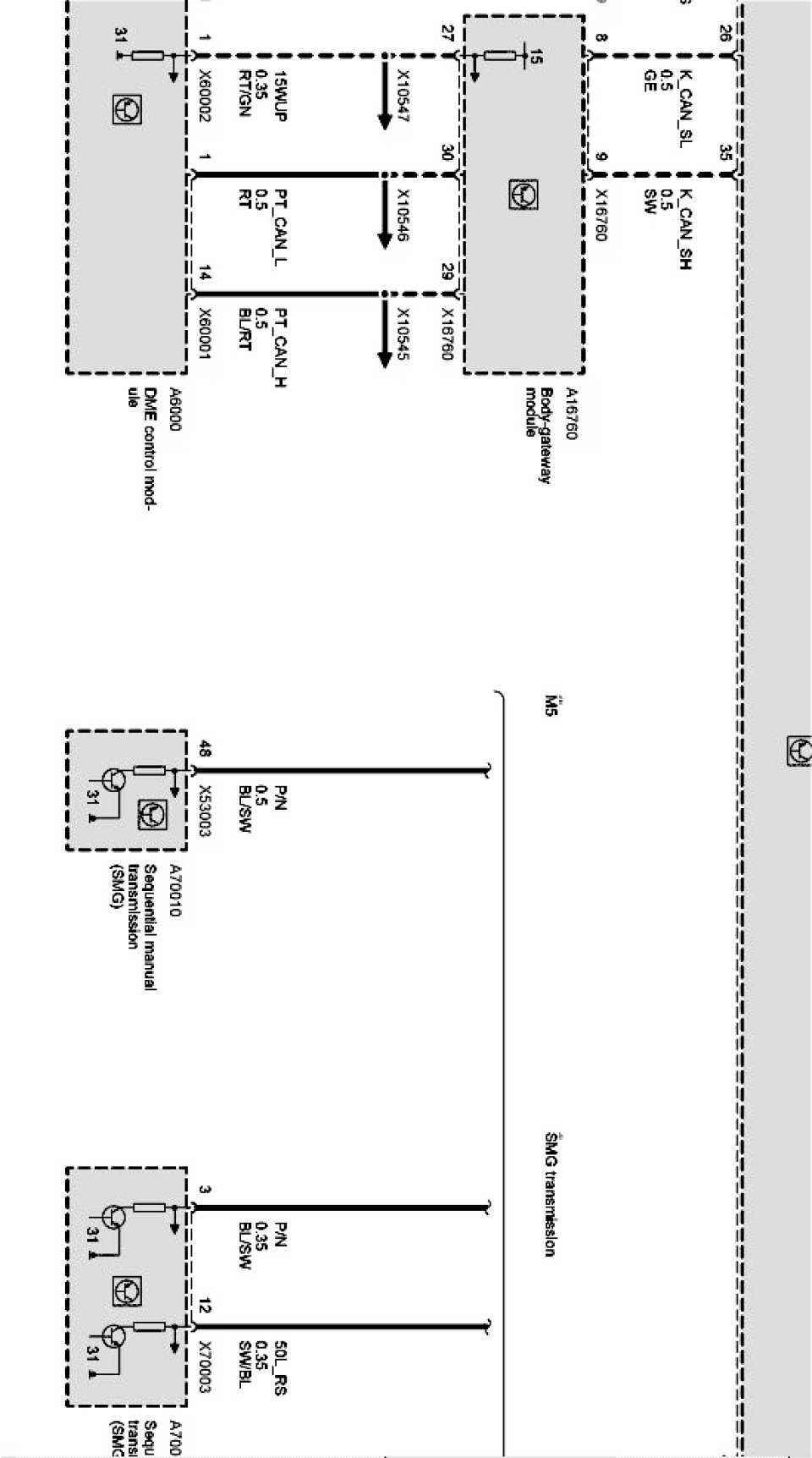

Convenient start Part 5:

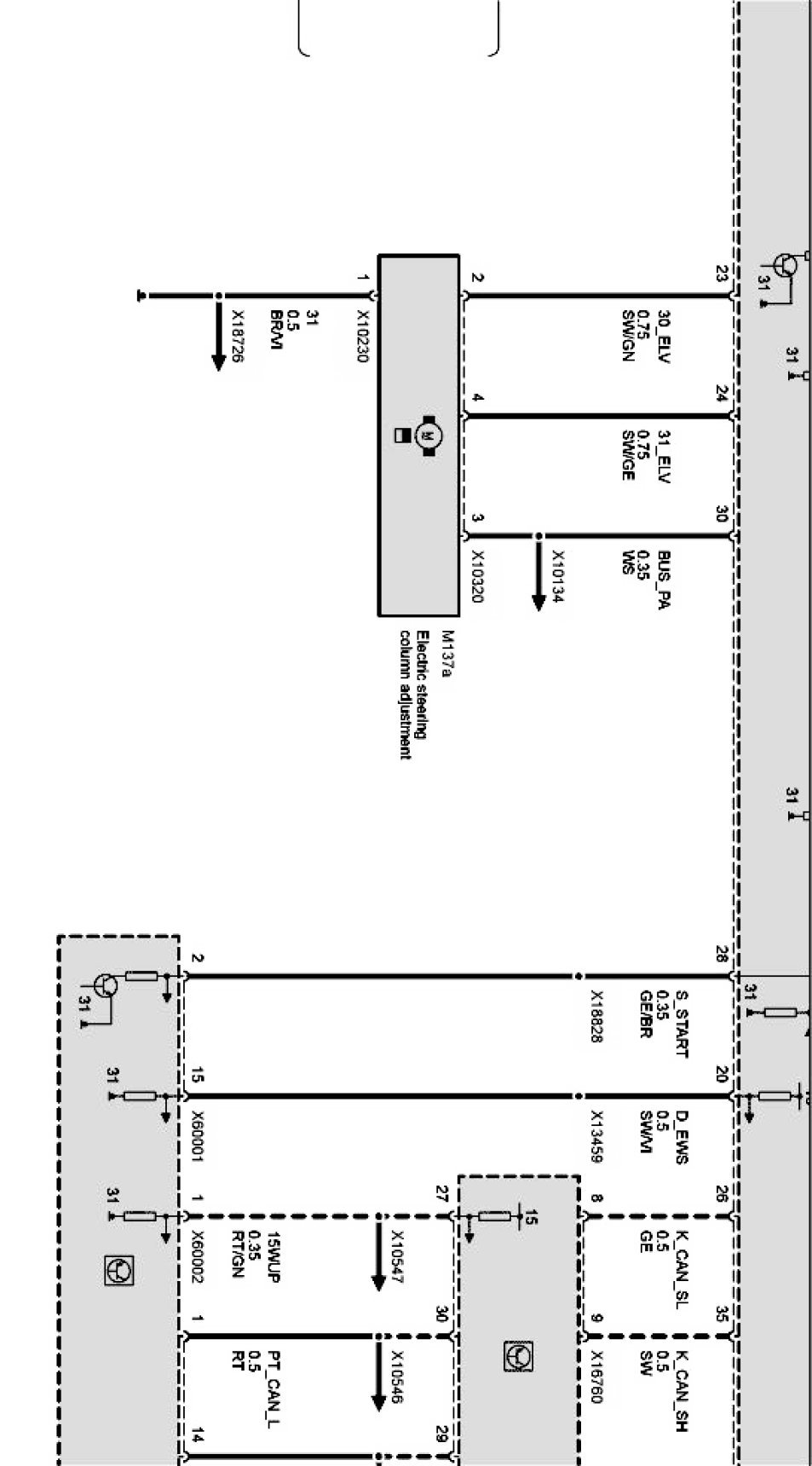

Convenient start Part 6:



Convenient start Part 7:
