Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Chassis >> Wheel Slip Control System (M5/M6) >> Switch >> Switch Functions DSC (Up to 03/07)

Switch Functions DSC (Up to 03/07)

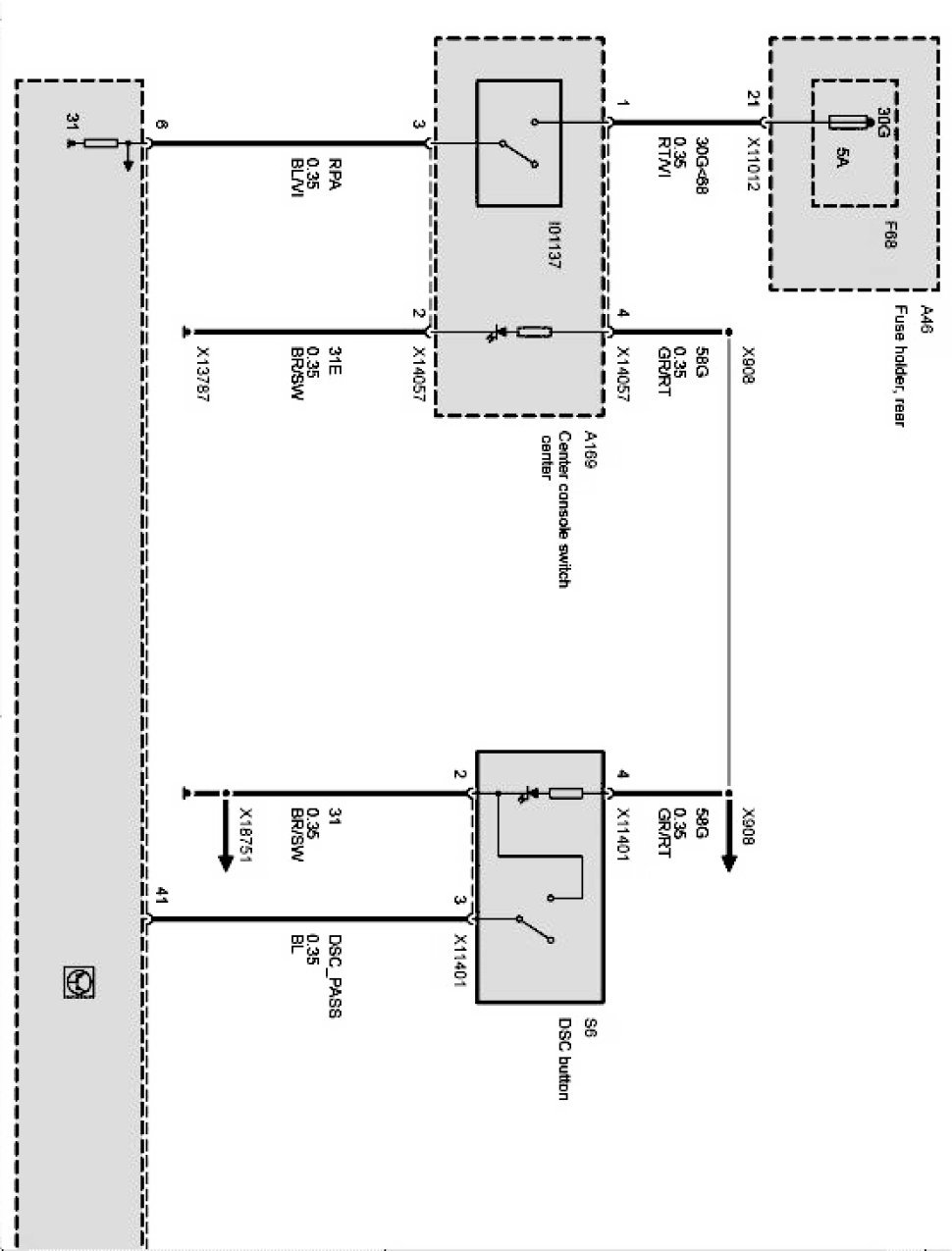

Switch functions DSC Part 1:

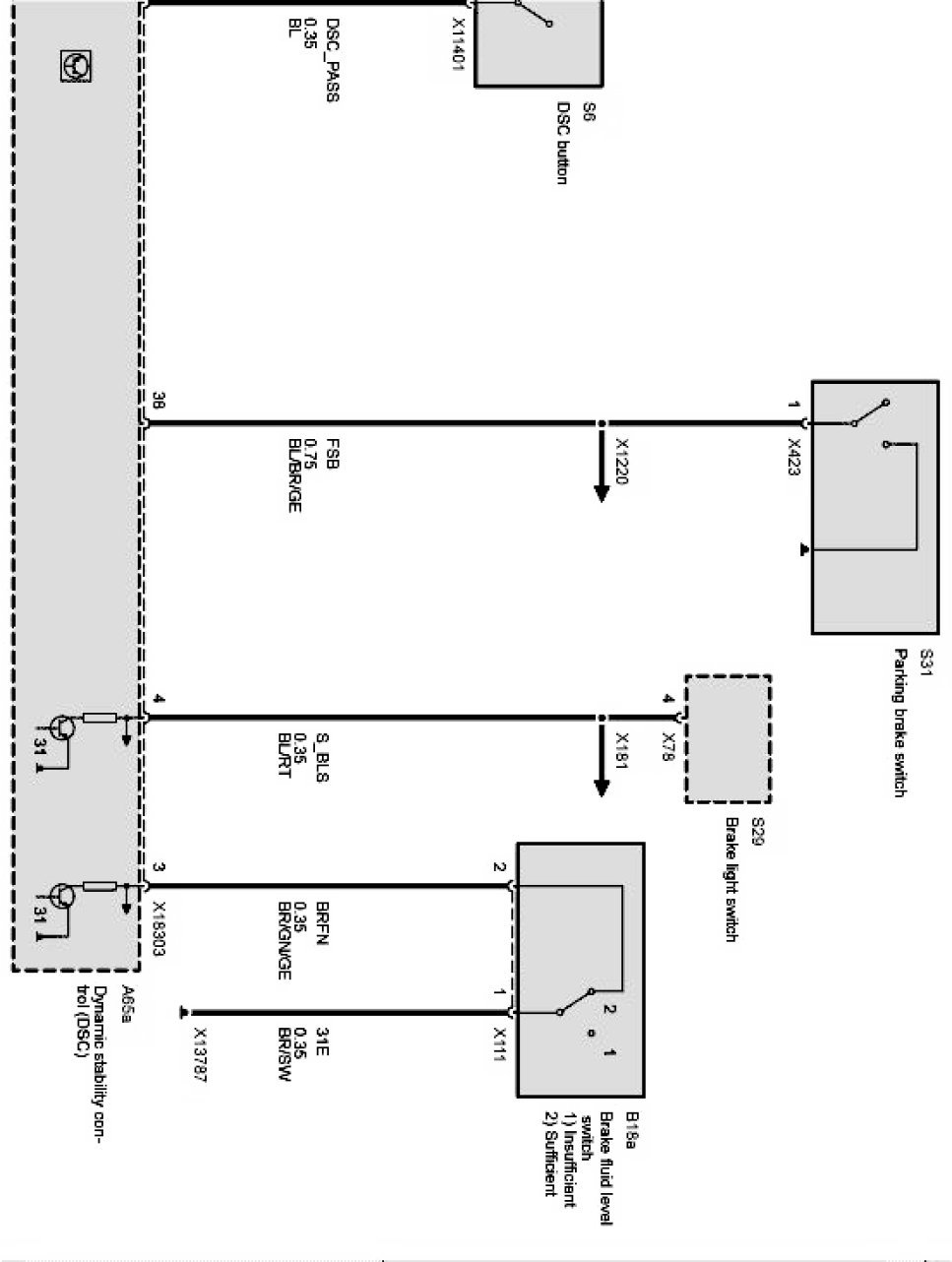

Switch functions DSC Part 2:
