Supply, Center Console Switch Center (As of 09/05 Up to 03/07)

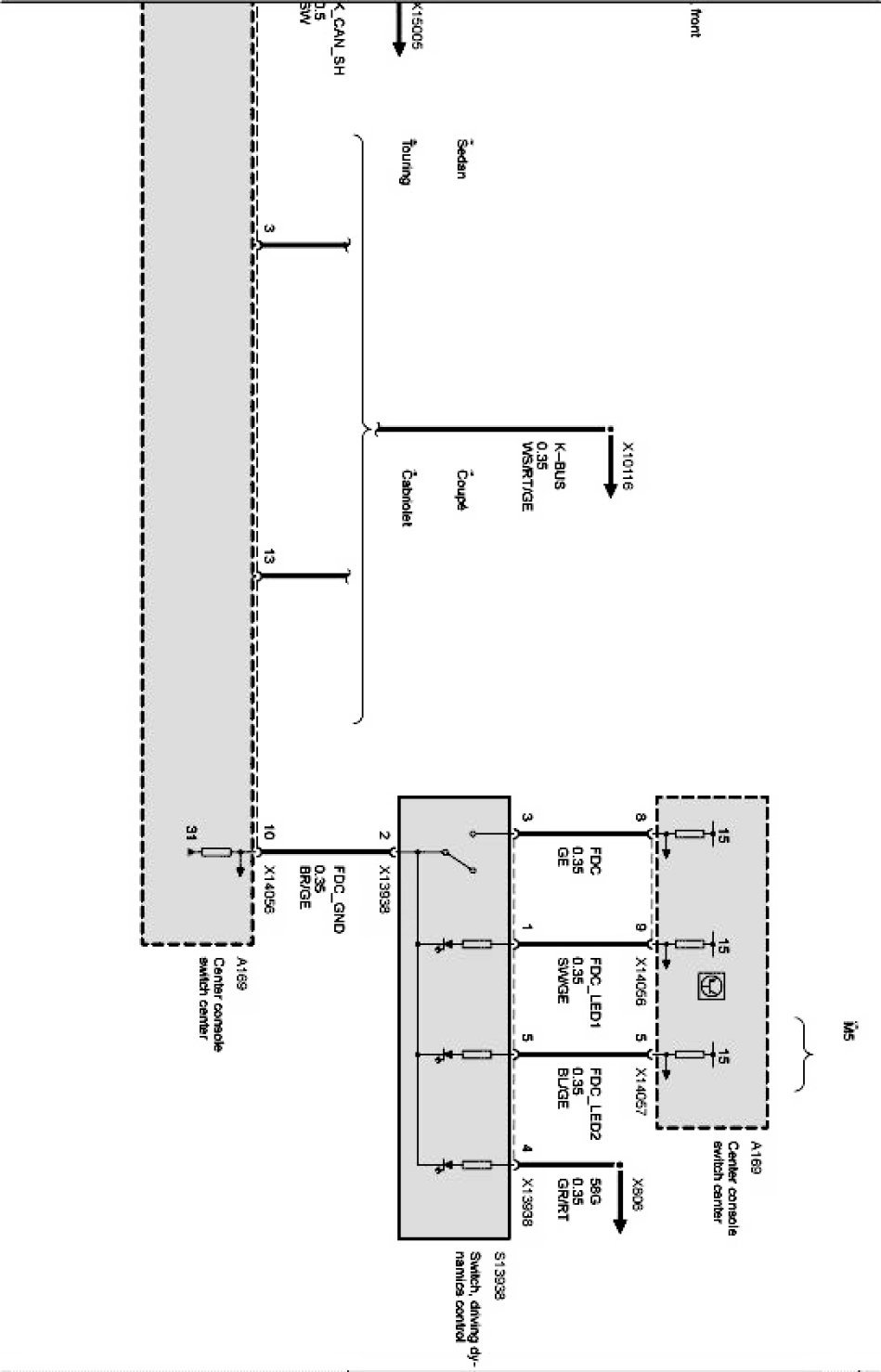

Supply, center console switch center Part 1:

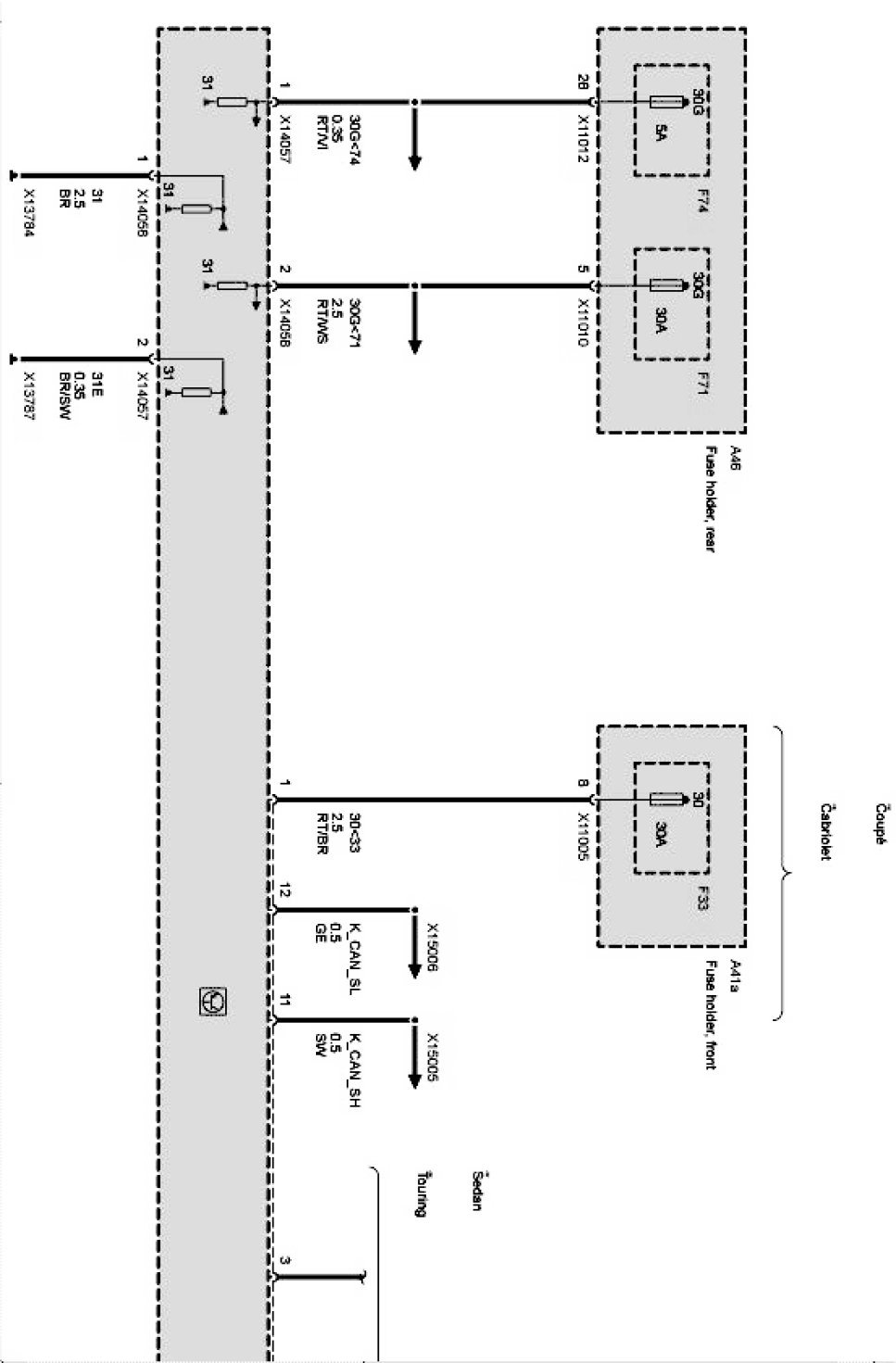

Supply, center console switch center Part 2:
