Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Chassis >> Suspension and Damping >> Electronic Damper Control K (EDC Damper Control) >> Supply, Electronic Damper Control Module (As of 09/05)

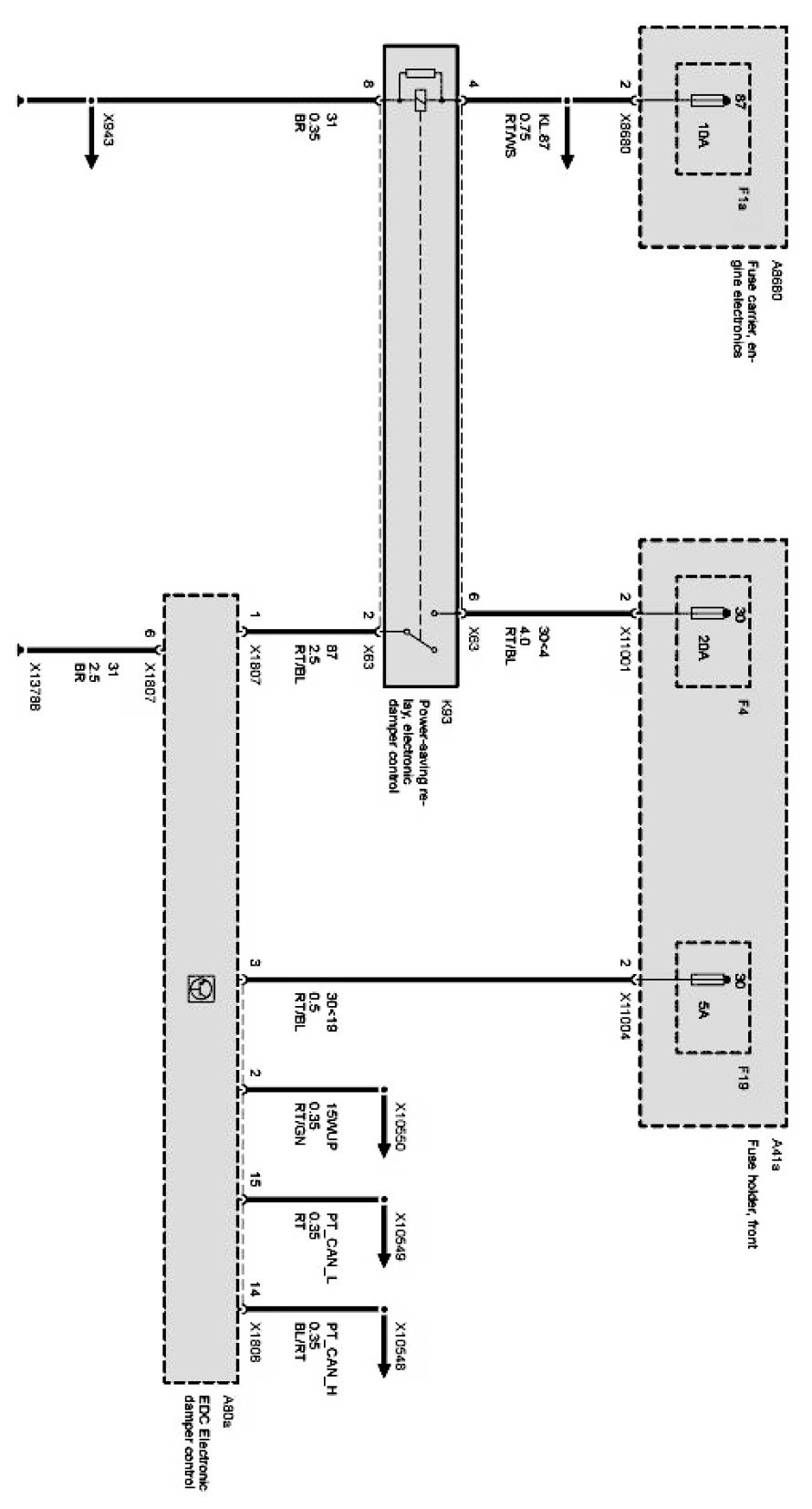

Supply, Electronic Damper Control Module (As of 09/05)

Supply, electronic damper control module:
