Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Chassis >> Steering >> Electric Steering-Column Adjustment >> Fully Electric Steering Column (Up to 09/05)

Fully Electric Steering Column (Up to 09/05)

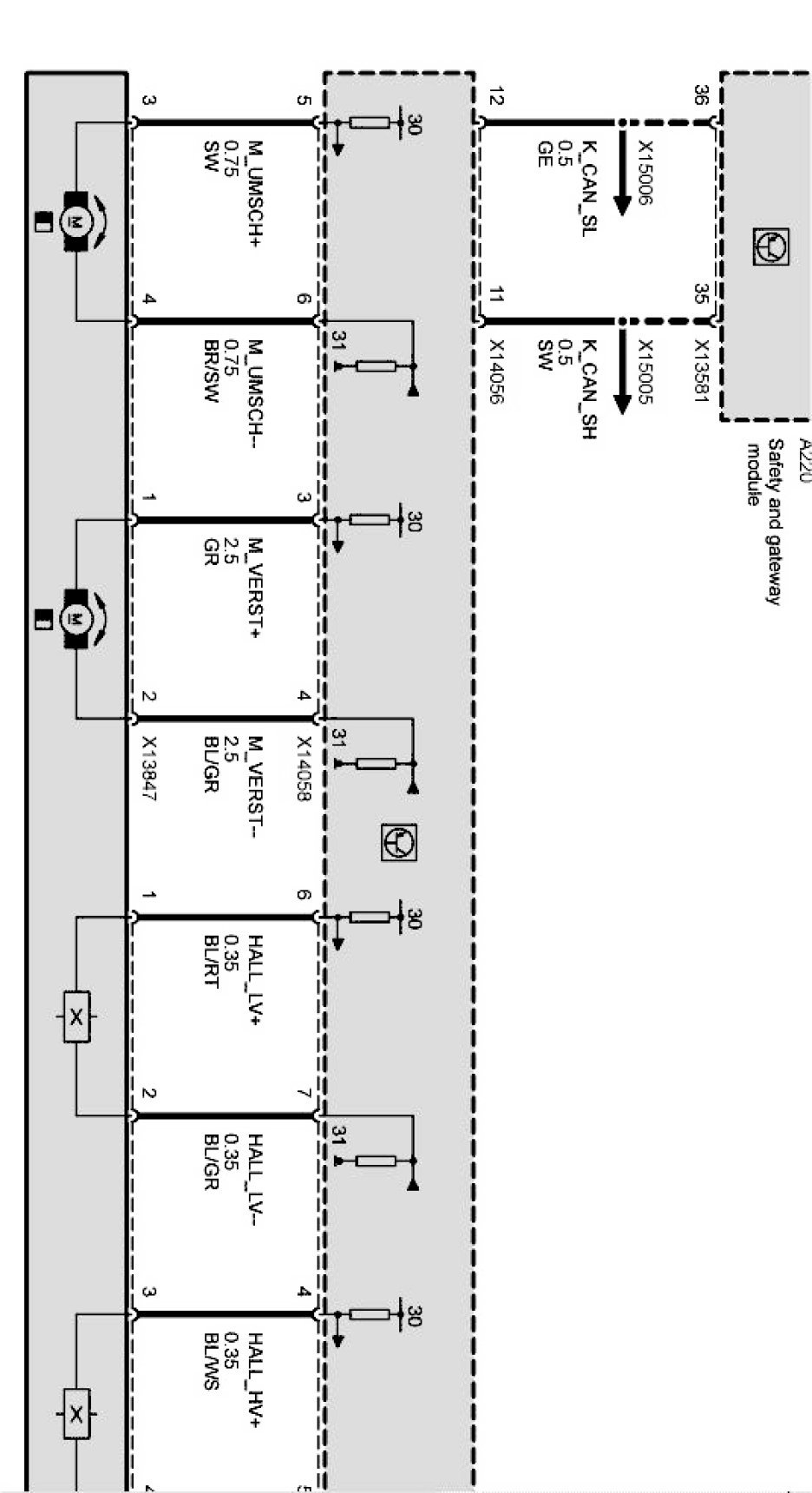

Fully electric steering column Part 1:

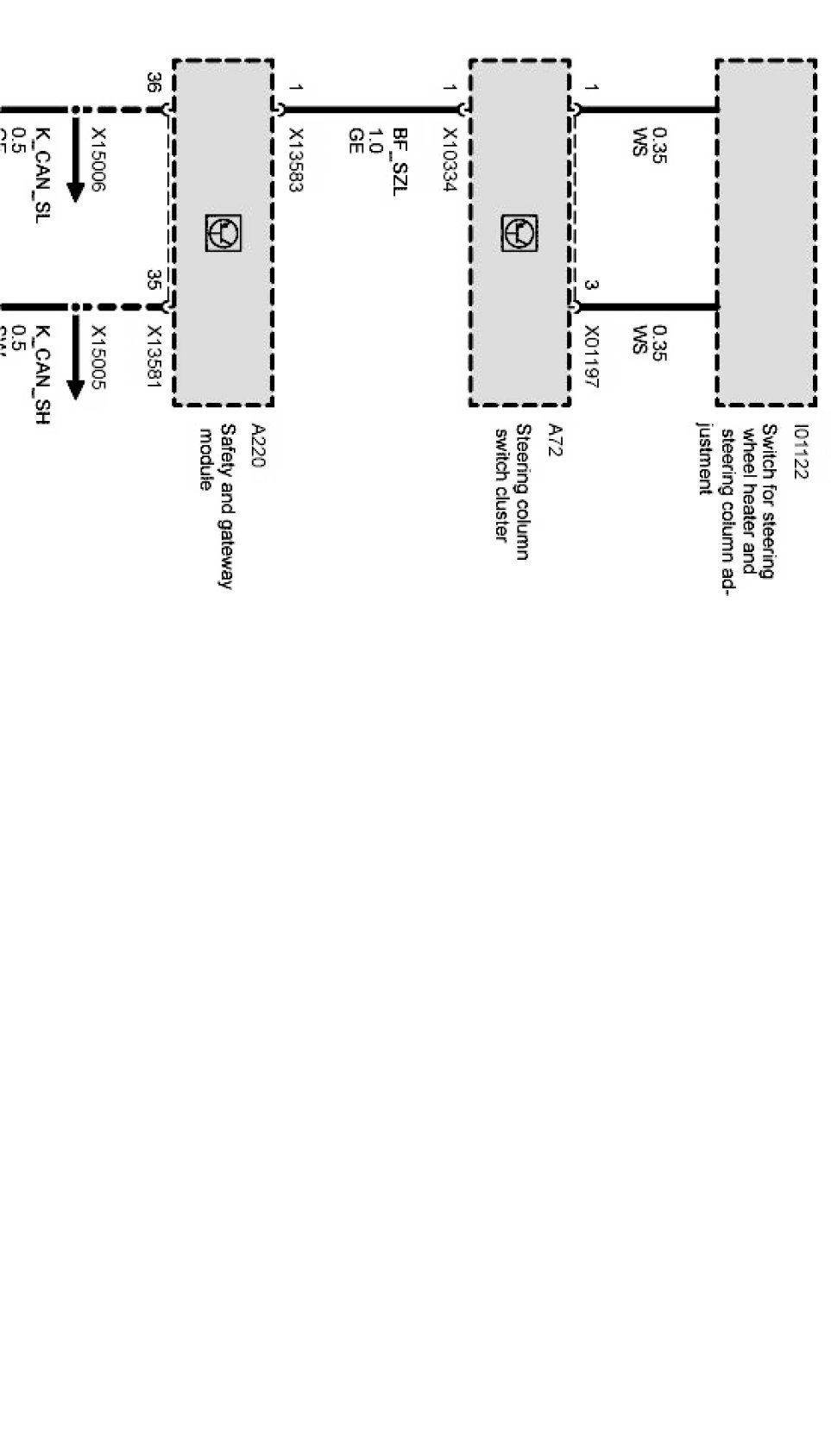

Fully electric steering column Part 2:

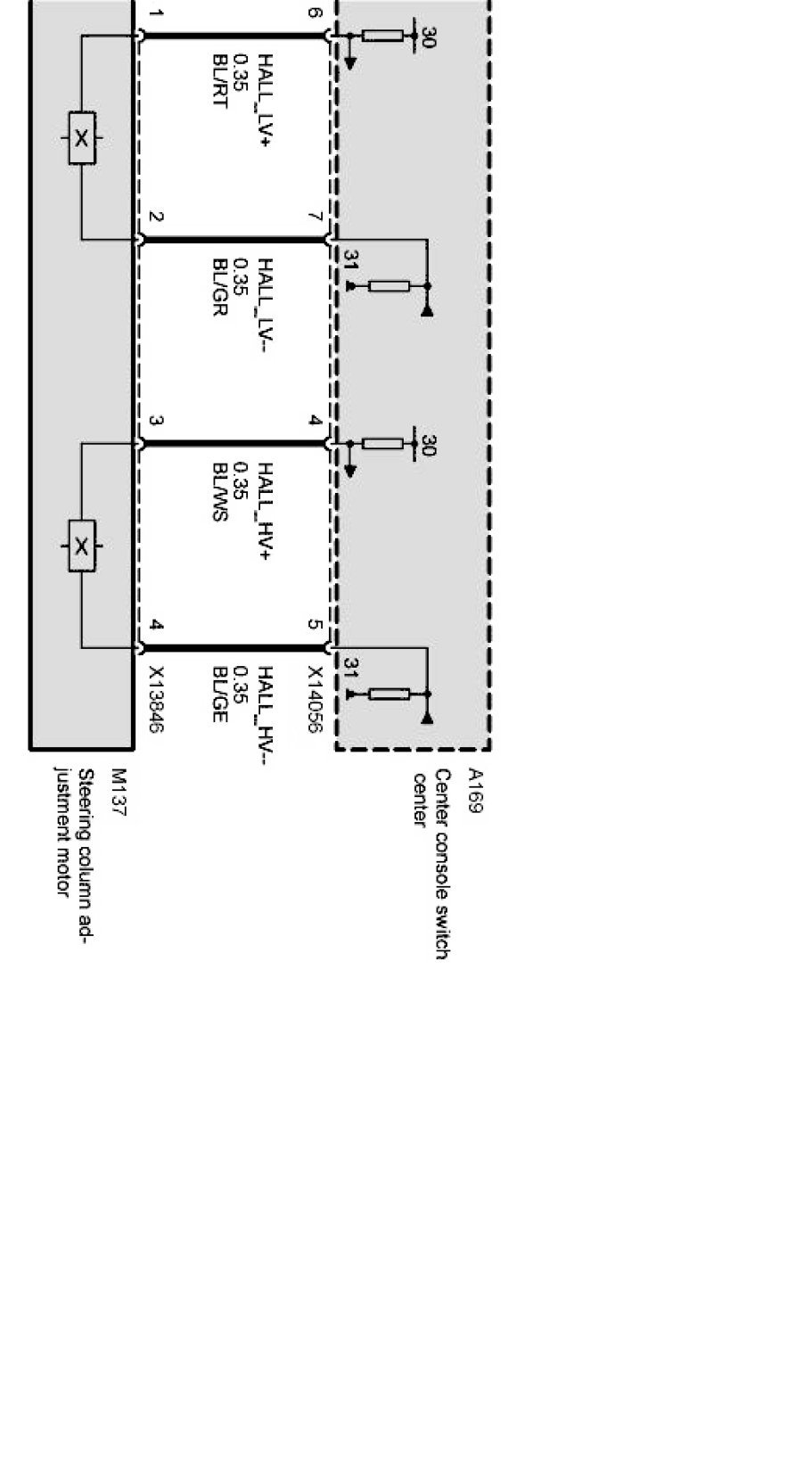

Fully electric steering column Part 3:
