Active Steering (As of 09/05)

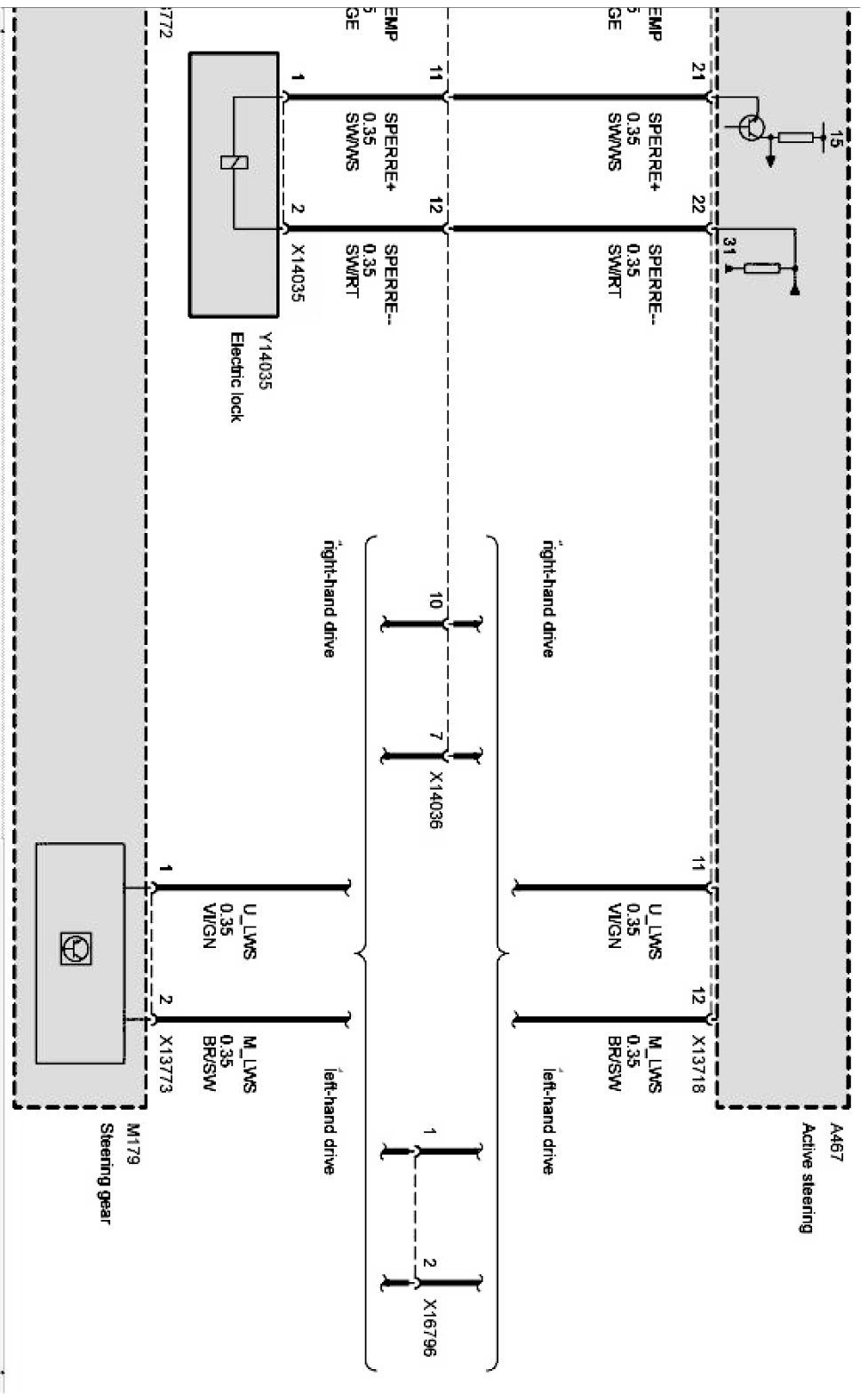

Active steering Part 1:

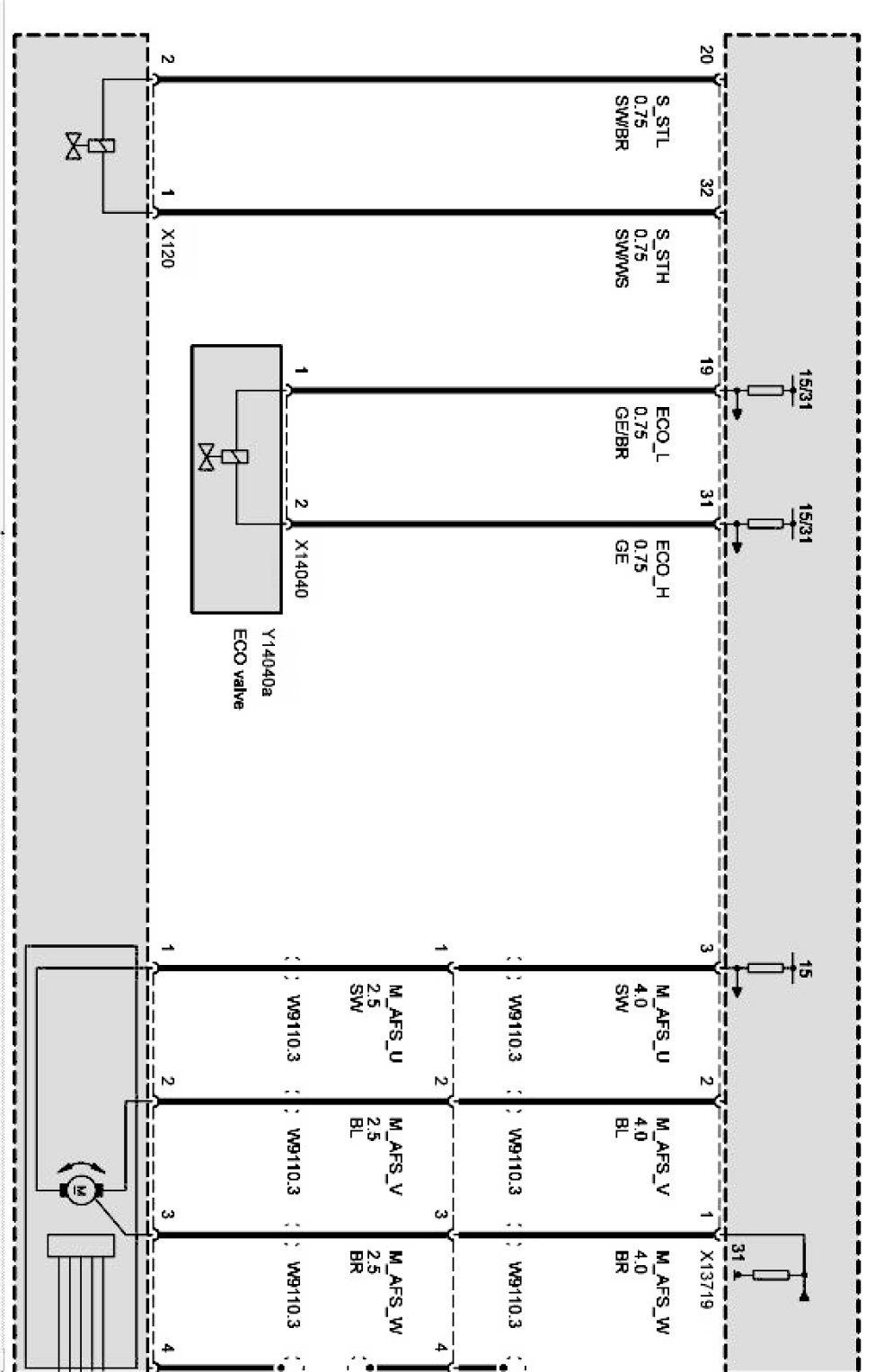

Active steering Part 2:

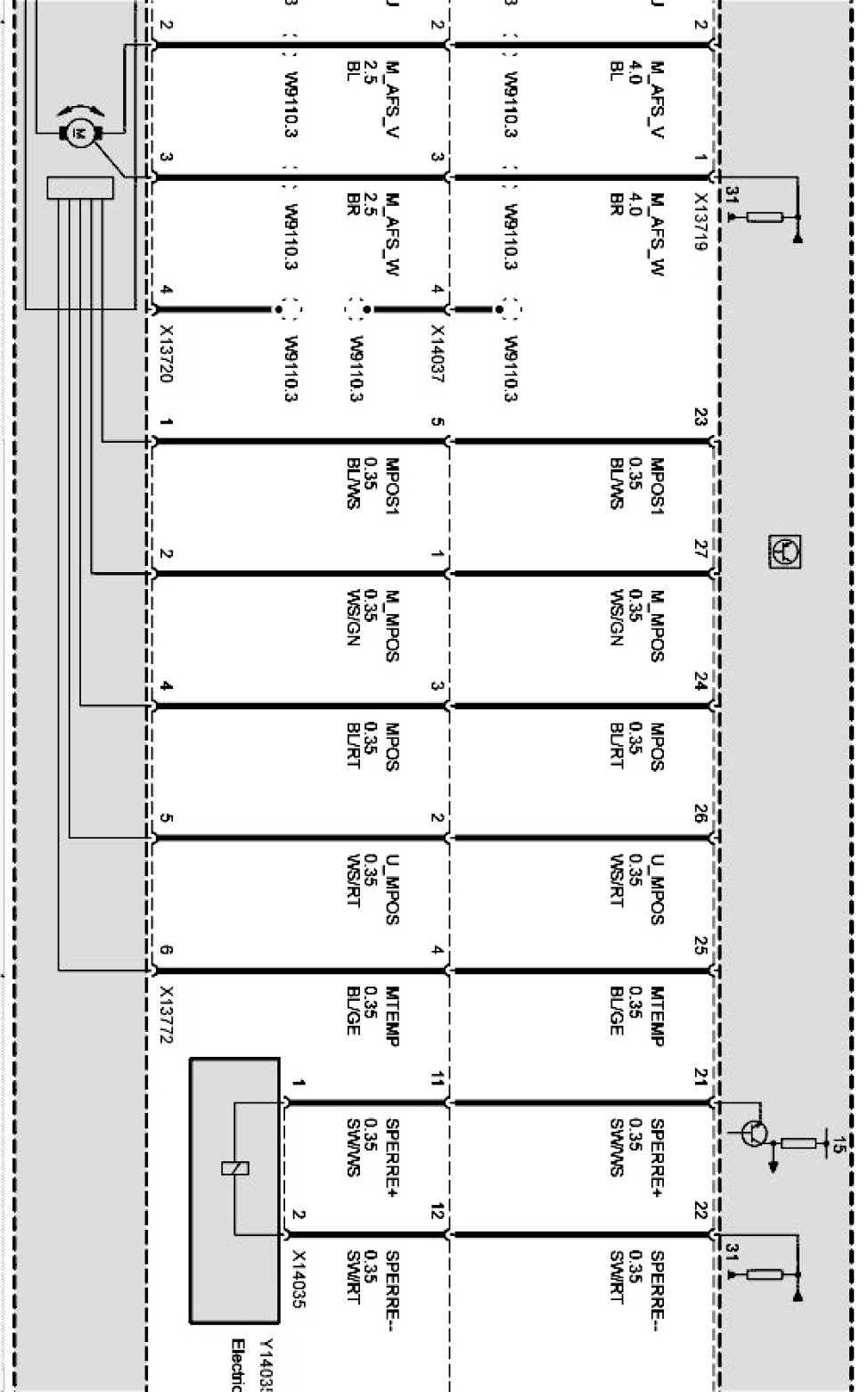

Active steering Part 3:
