Active Steering (As of 03/05 Up to 09/05)

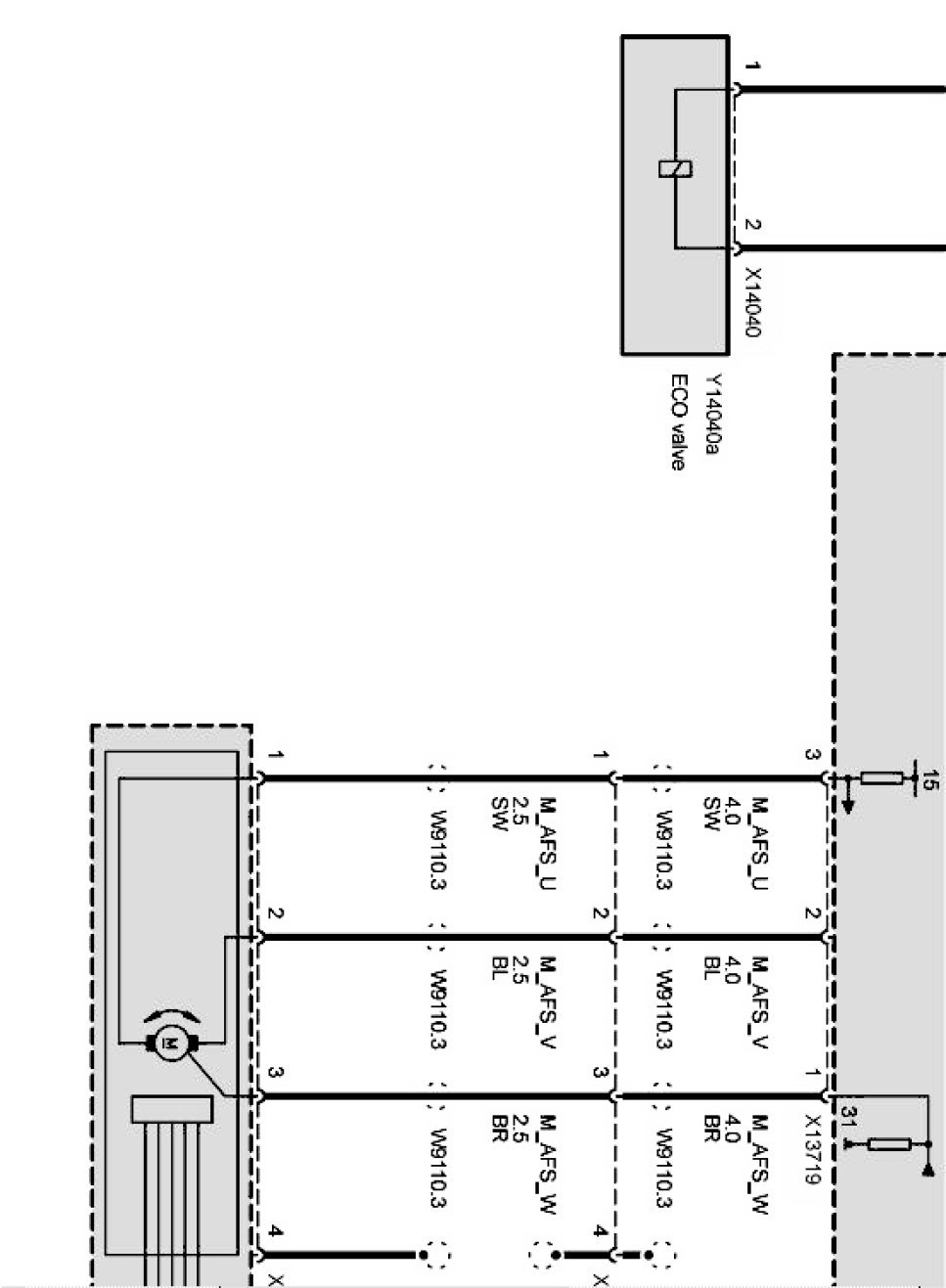

Active steering Part 1:

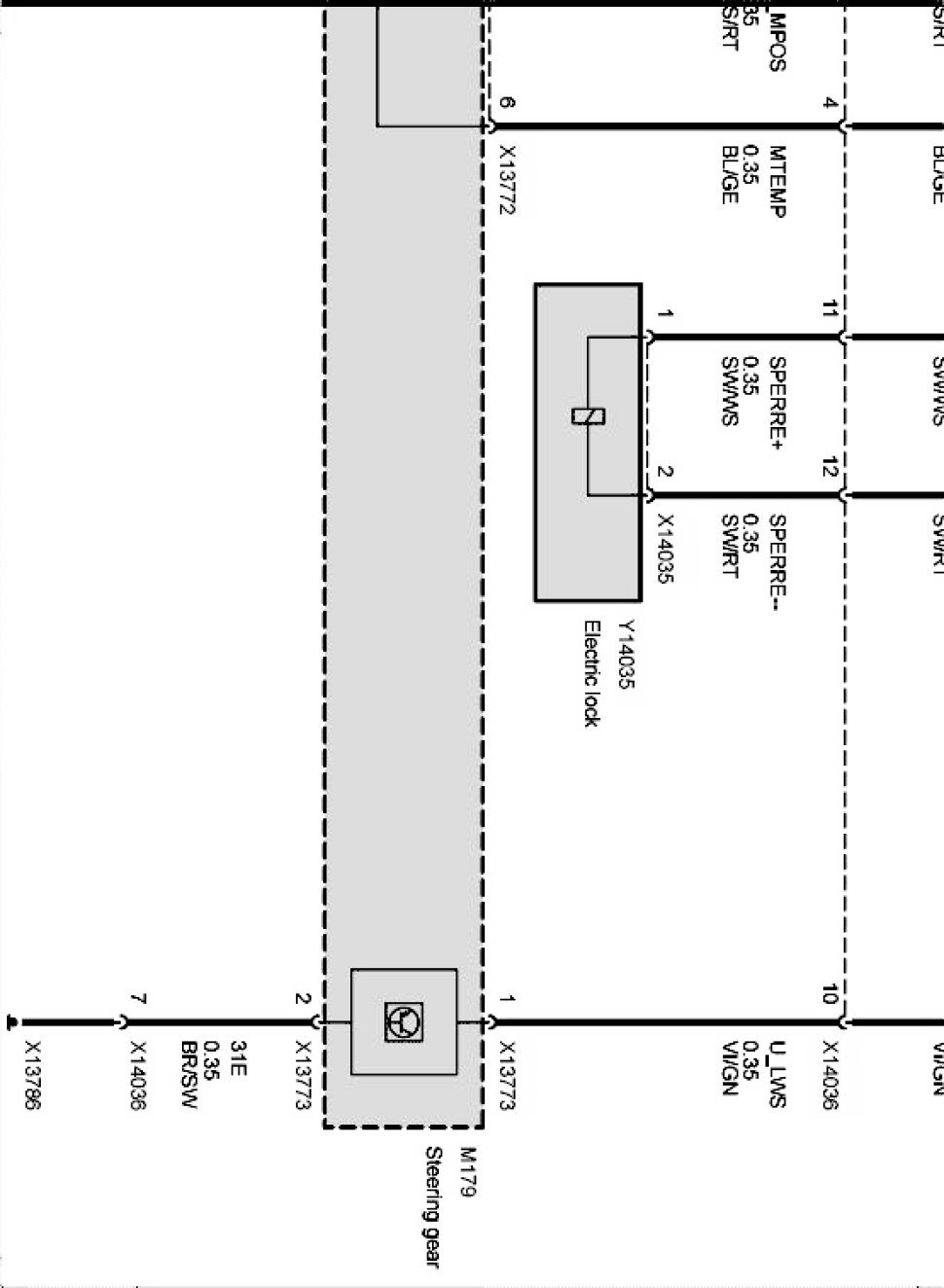

Active steering Part 2:

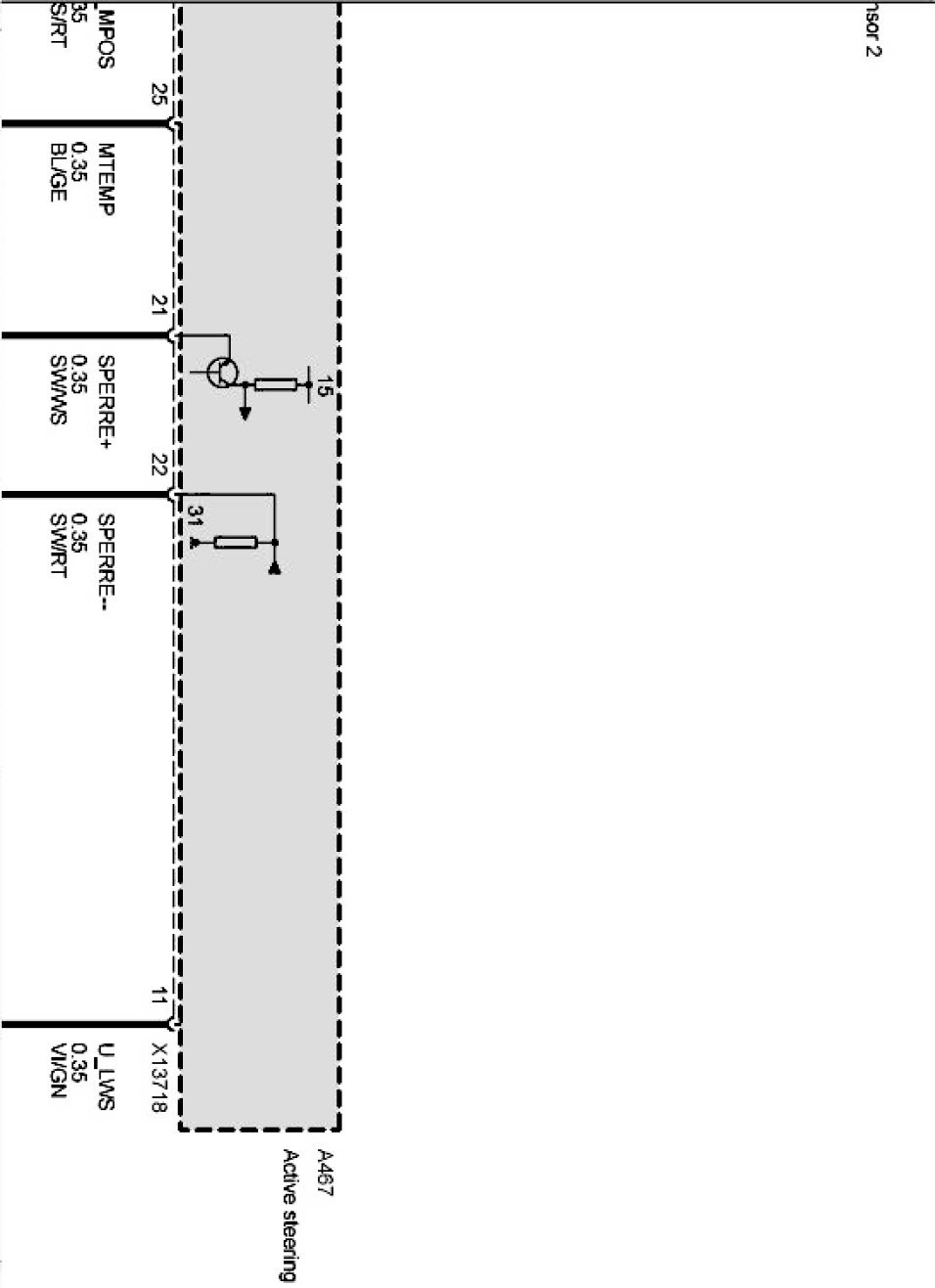

Active steering Part 3:



Active steering Part 4:



Active steering Part 5:



Active steering Part 6:
