Emergency Call (DSC Dynamic Stability Control Premium)

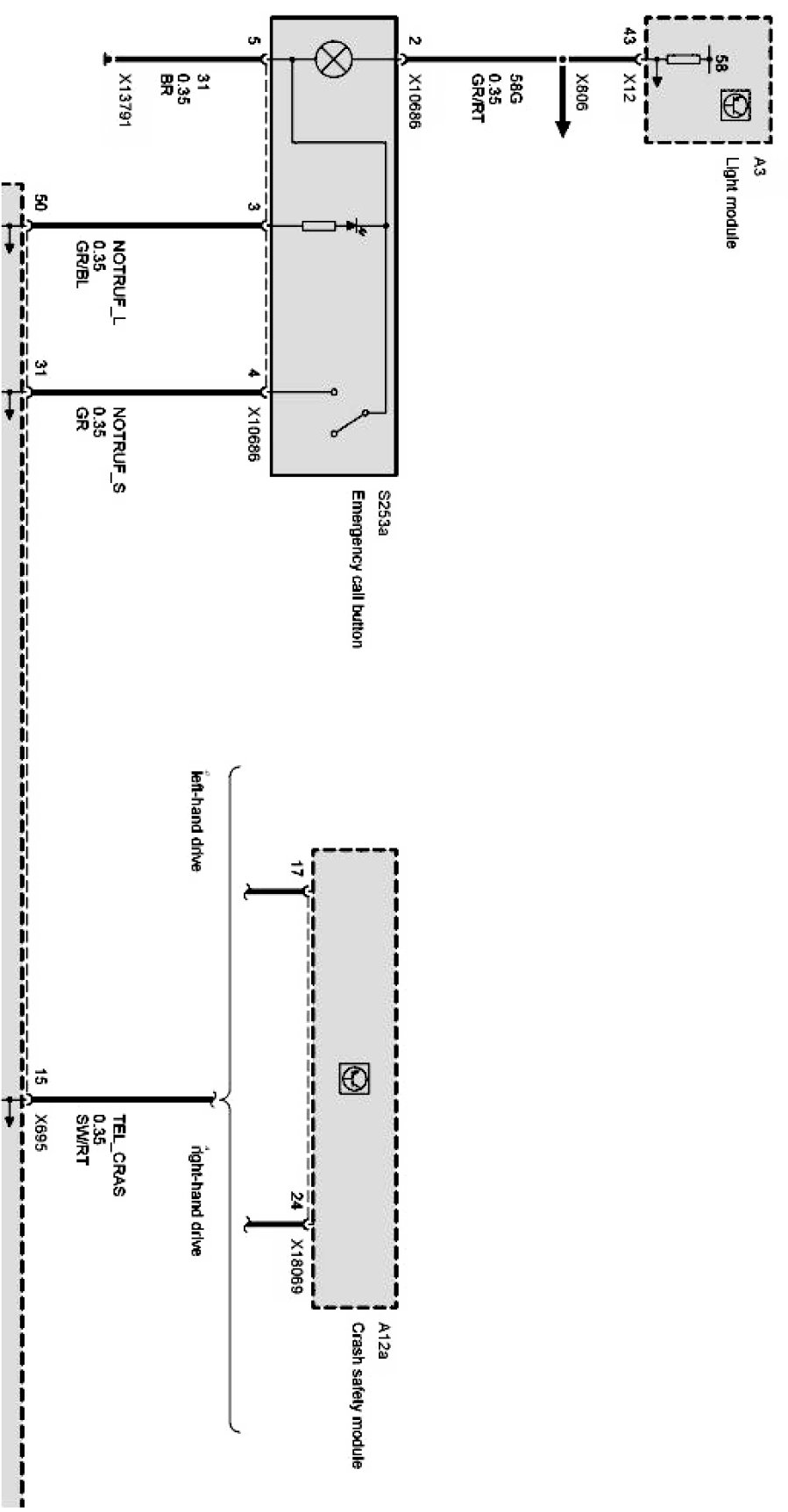

Emergency call Part 1:

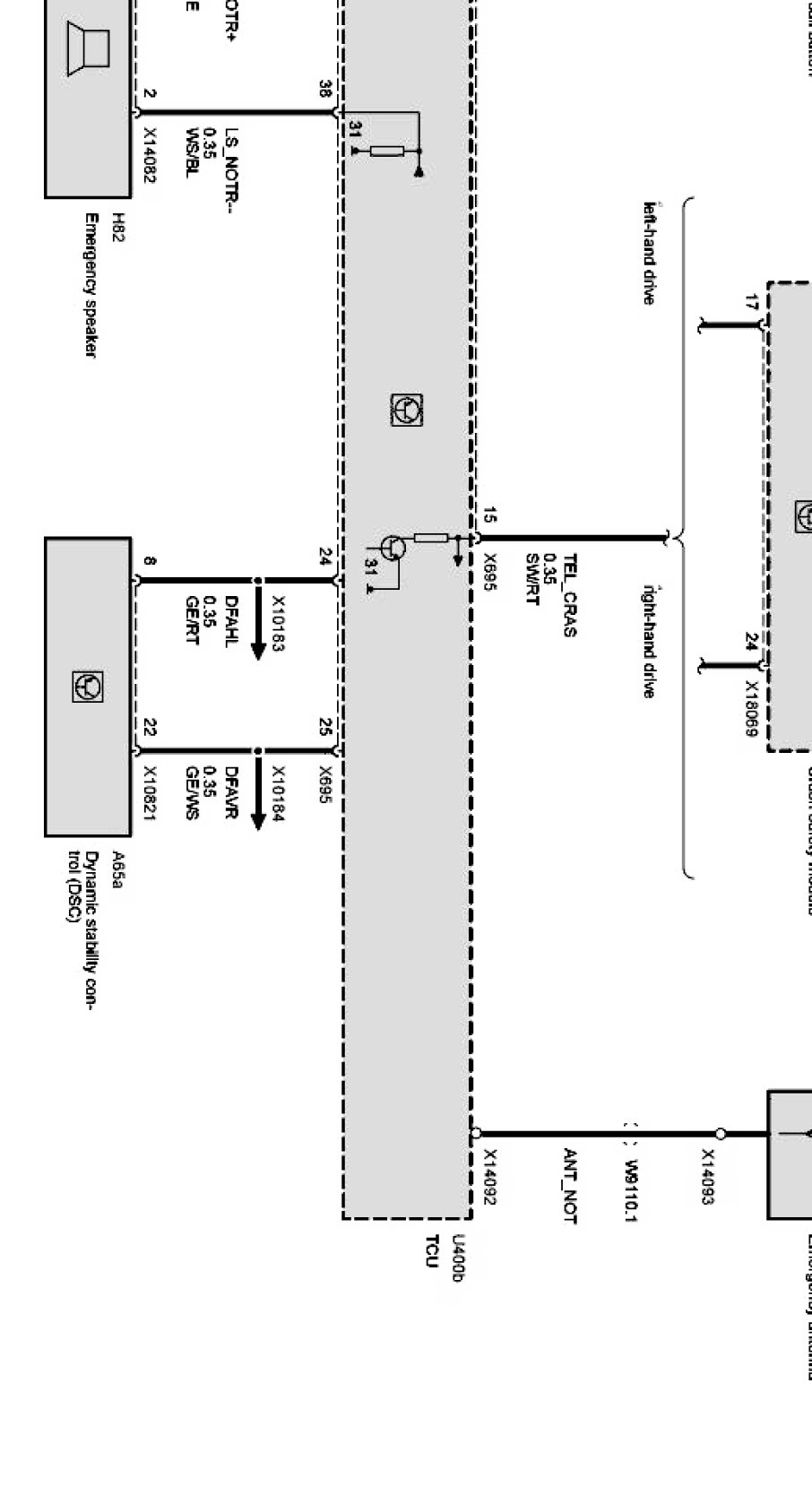

Emergency call Part 2:



Emergency call Part 3:
