Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Locking and Security Functions >> Trunk Lid >> Trunk Module, Supply (HKL Rear-Lid Lift)

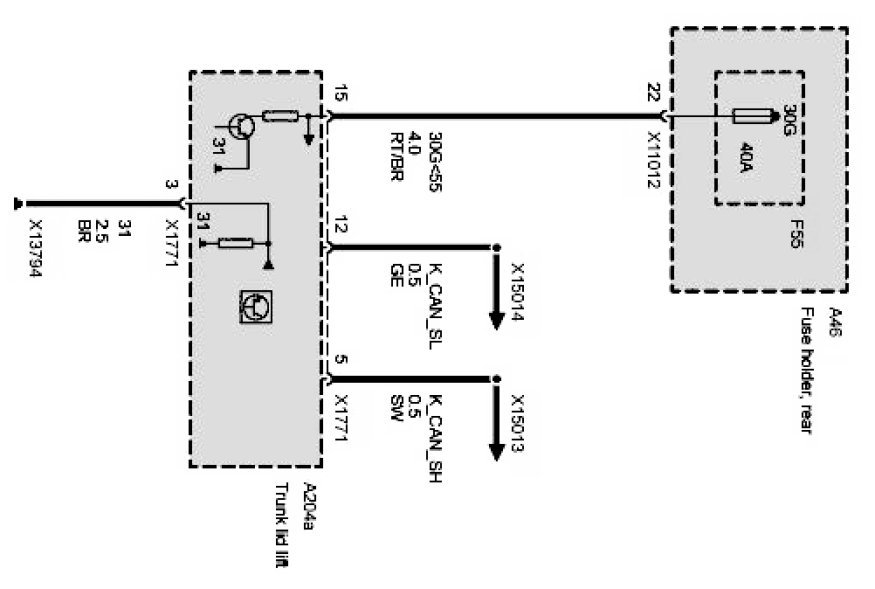

Trunk Module, Supply (HKL Rear-Lid Lift)

Supply, trunk lid/tailgate module:
