Central Locking, Trunk Lid/Tailgate (Saloon or Coupe)

Central locking, trunk lid/tailgate Part 1:



Central locking, trunk lid/tailgate Part 2:



Central locking, trunk lid/tailgate Part 3:



Central locking, trunk lid/tailgate Part 4:

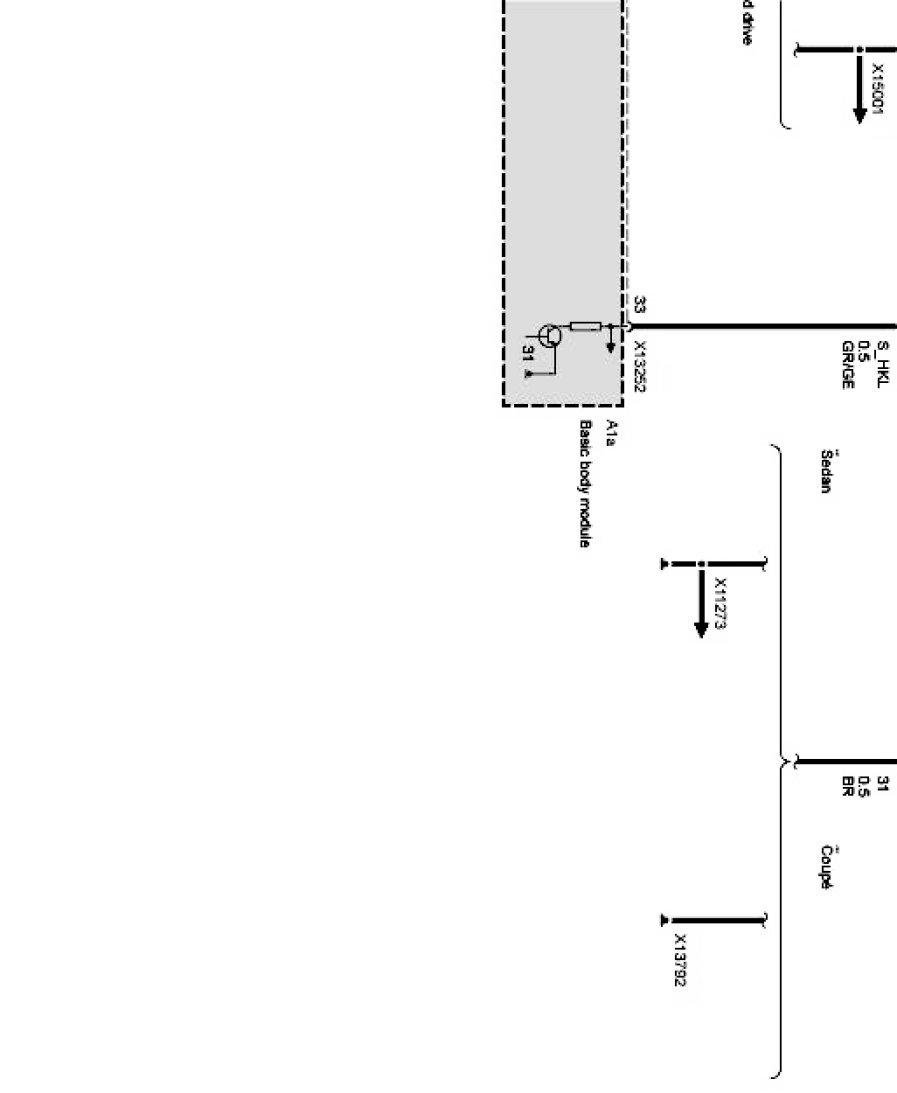

Central locking, trunk lid/tailgate Part 5:
