Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Locking and Security Functions >> Trunk Lid >> Automatic Trunk Lid/Tailgate (Touring With Hkl Rear-Lid Lift As of 09/05)

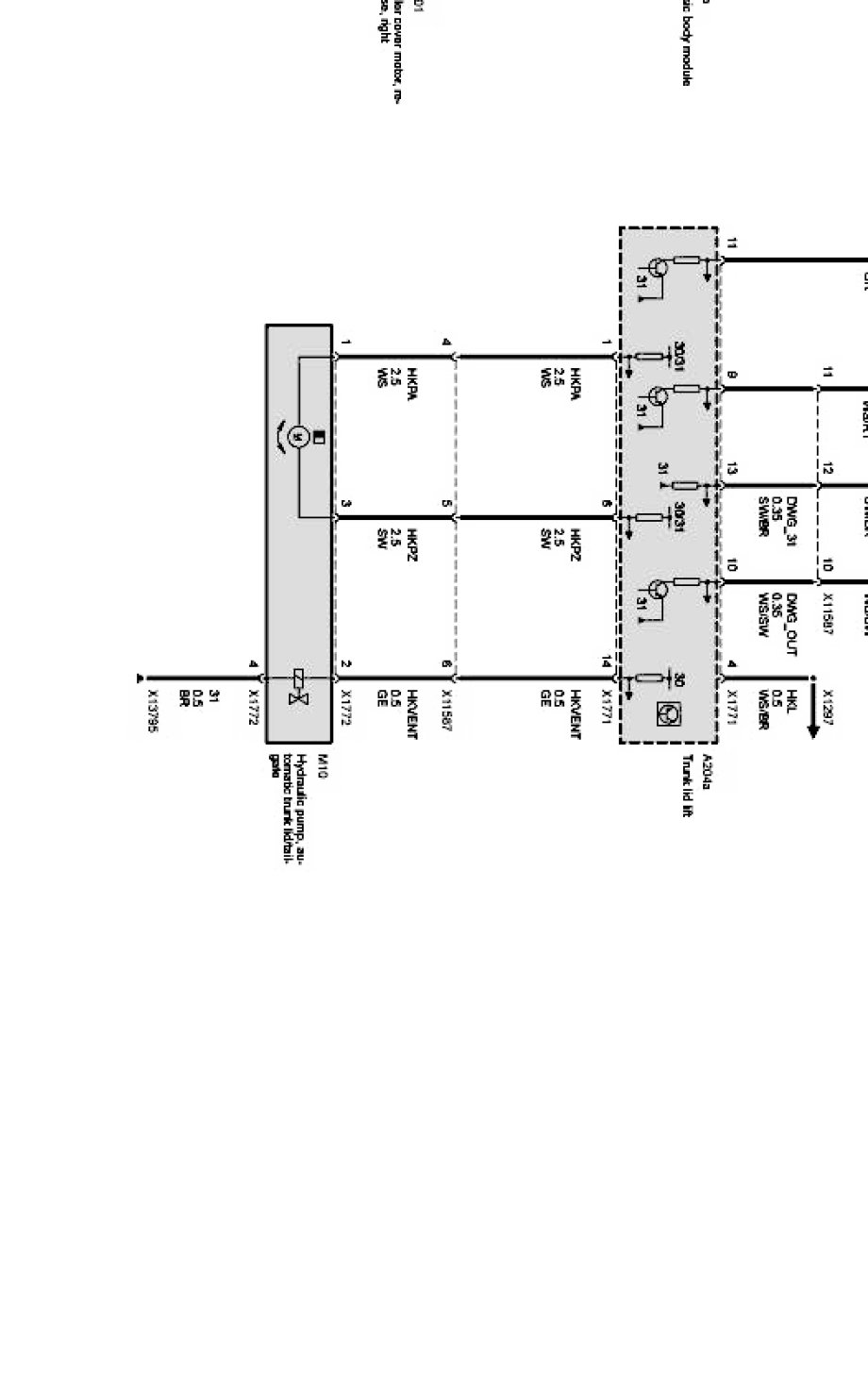

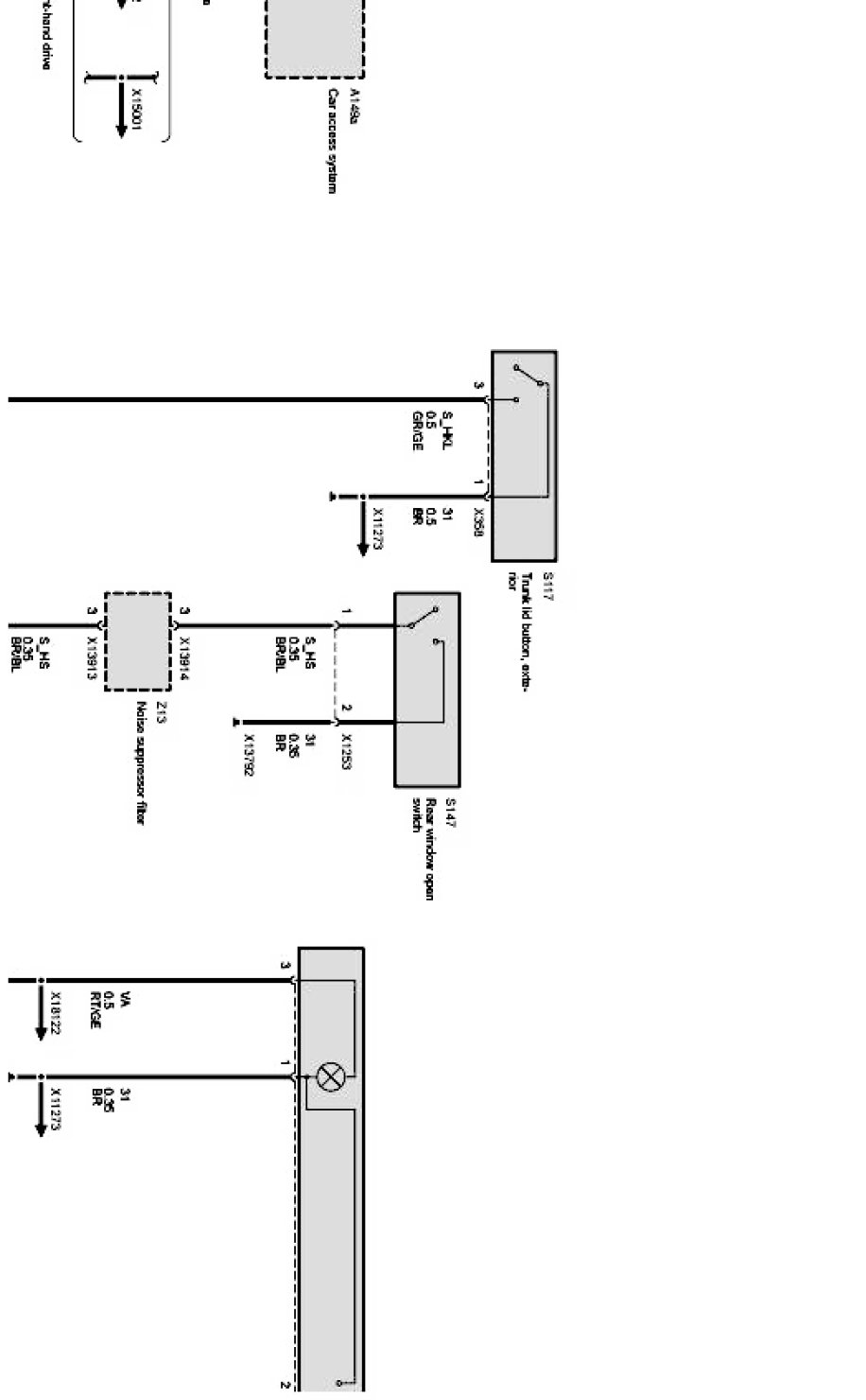

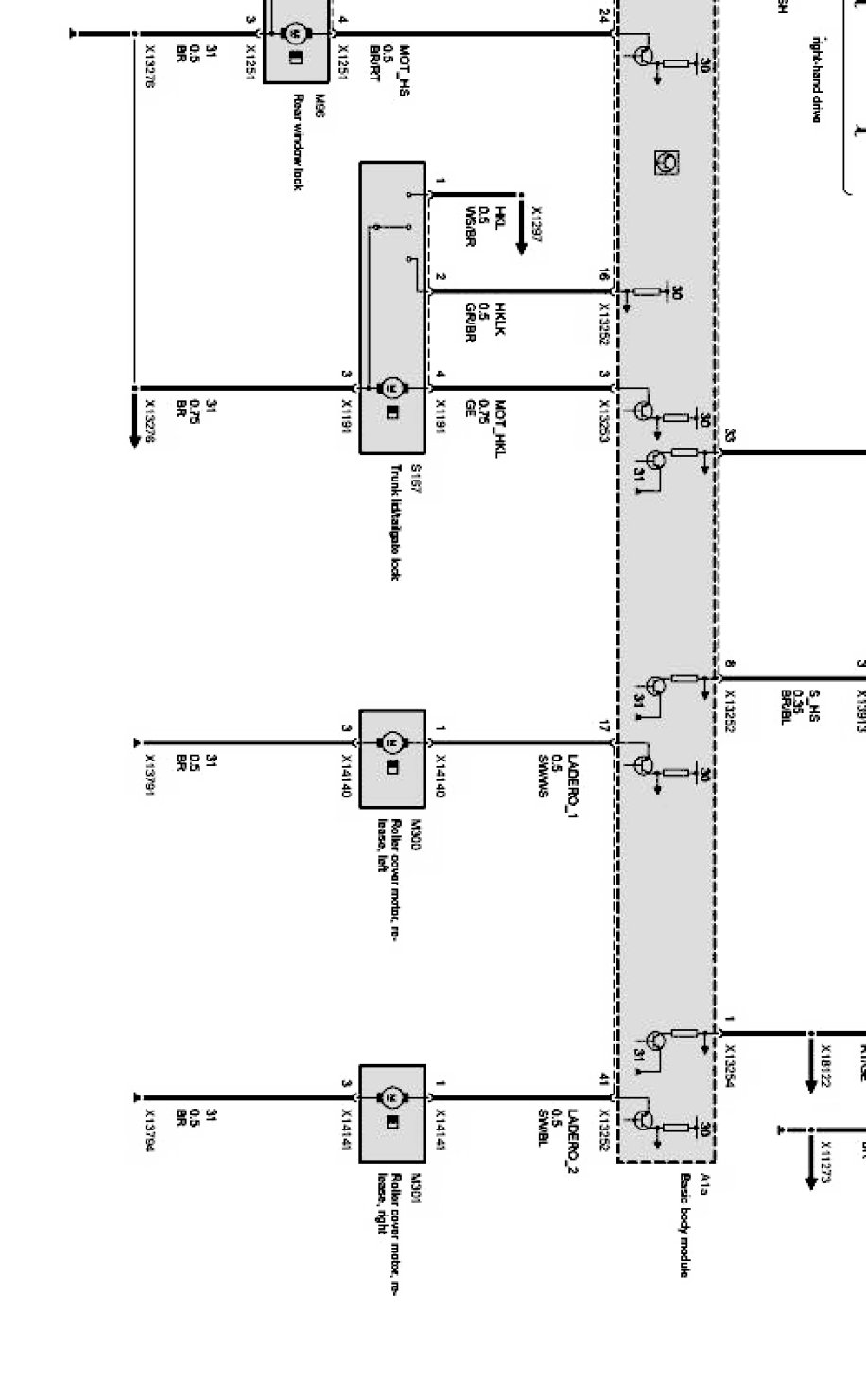

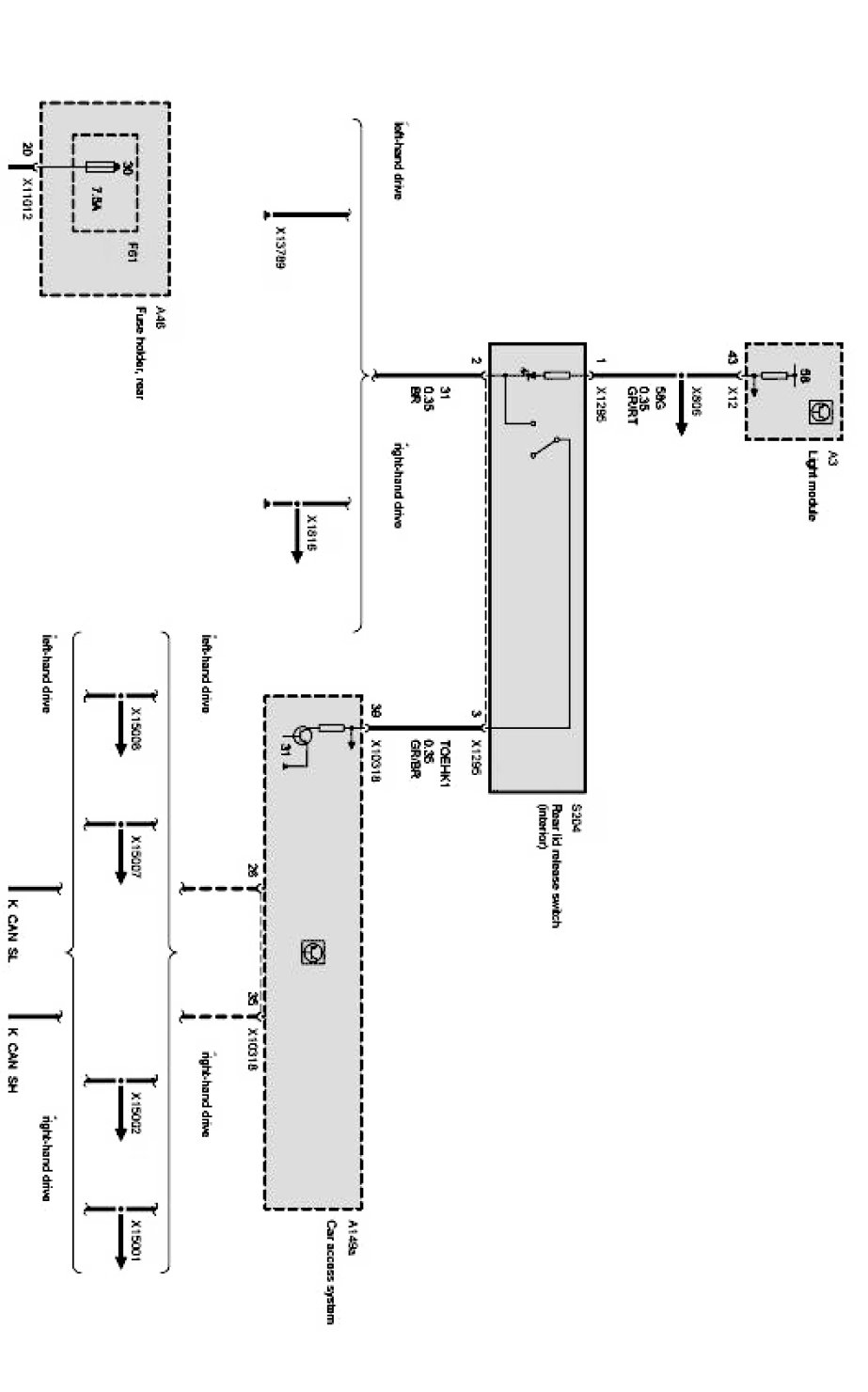

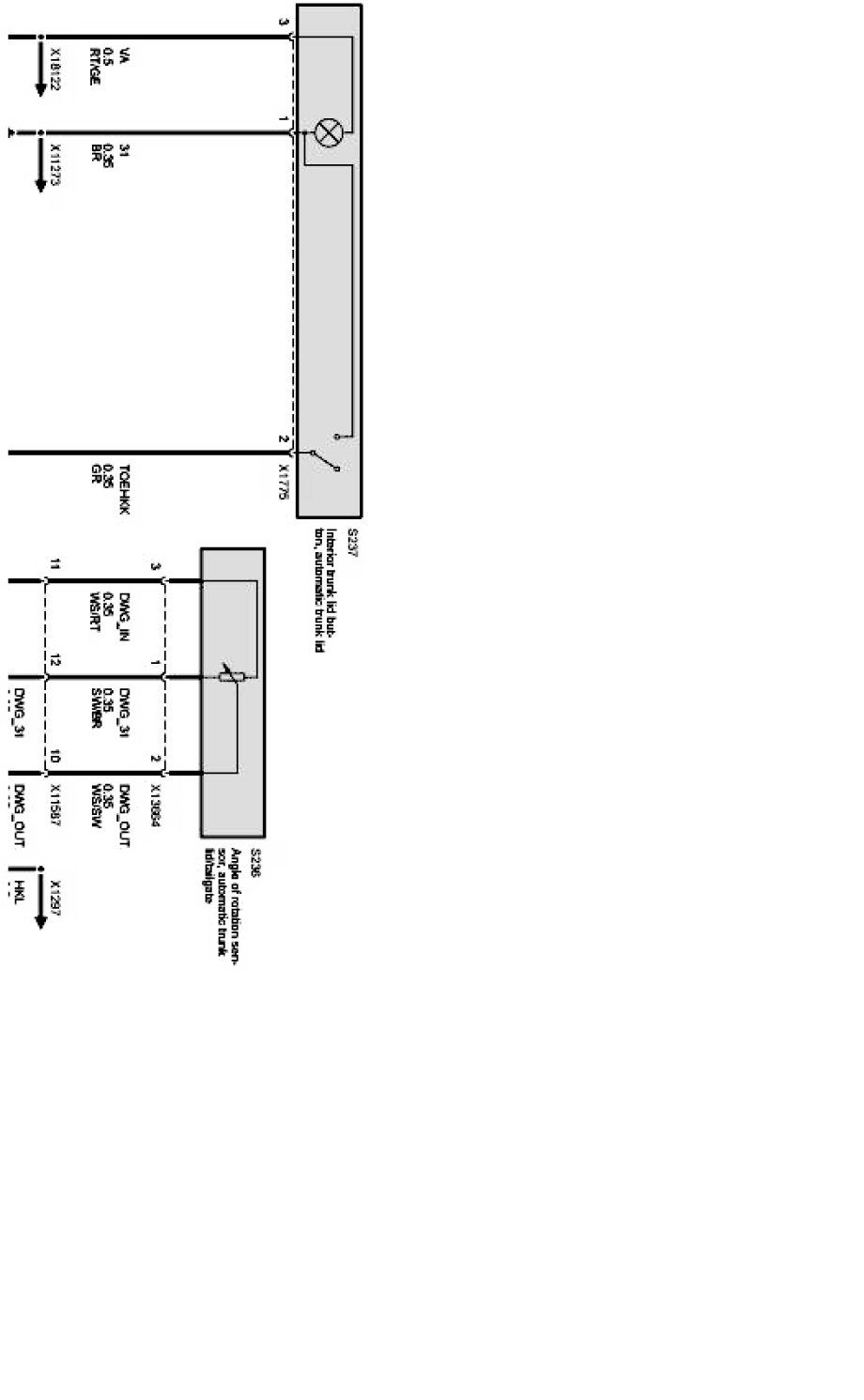

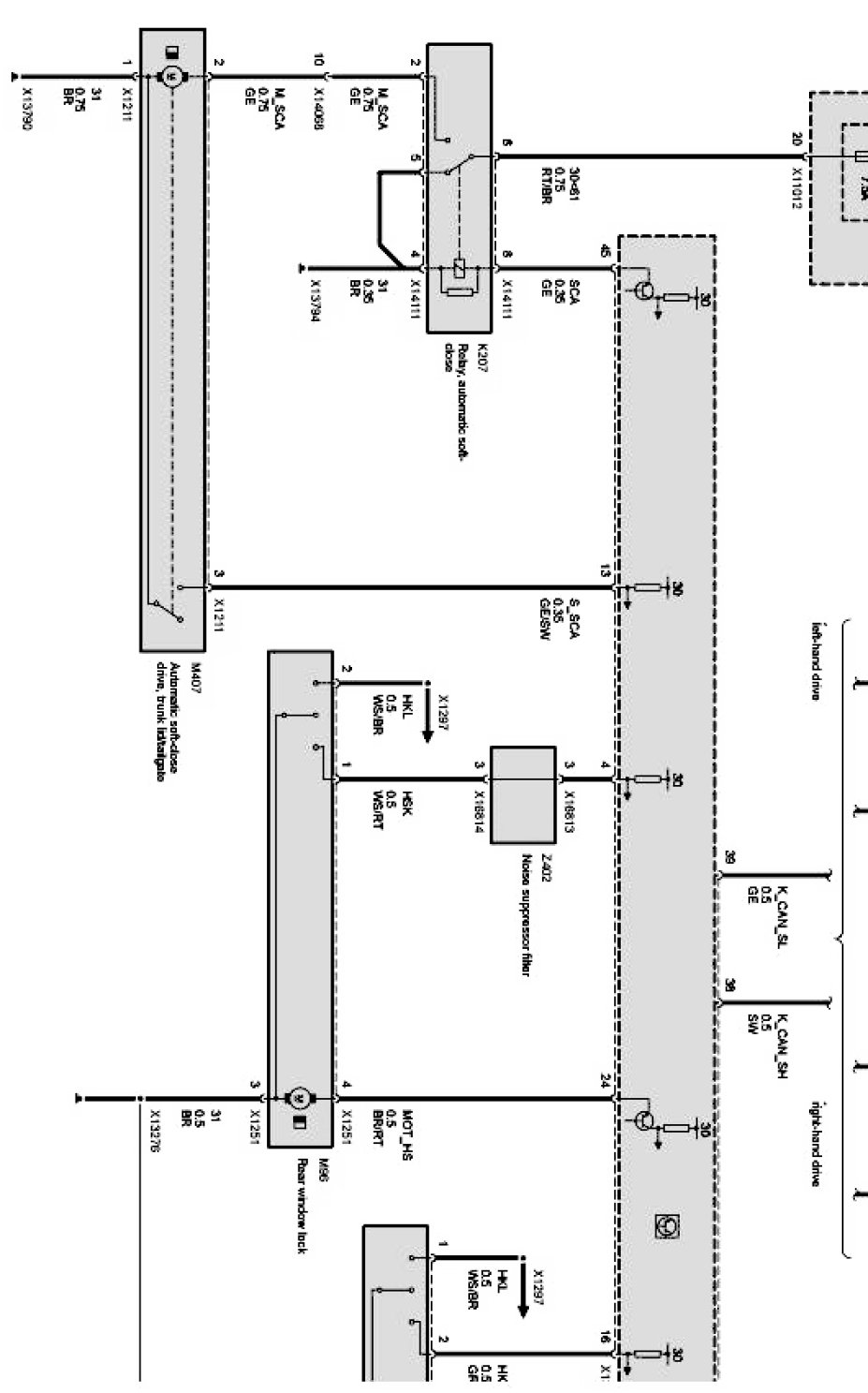

Automatic Trunk Lid/Tailgate (Touring With Hkl Rear-Lid Lift As of 09/05)
