Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Locking and Security Functions >> Sunroof (SHD Sliding/Tilting Sunroof or SHD Slide/Tilt Sunroof 2) >> Electric Sunroof (Saloon As of 09/05)

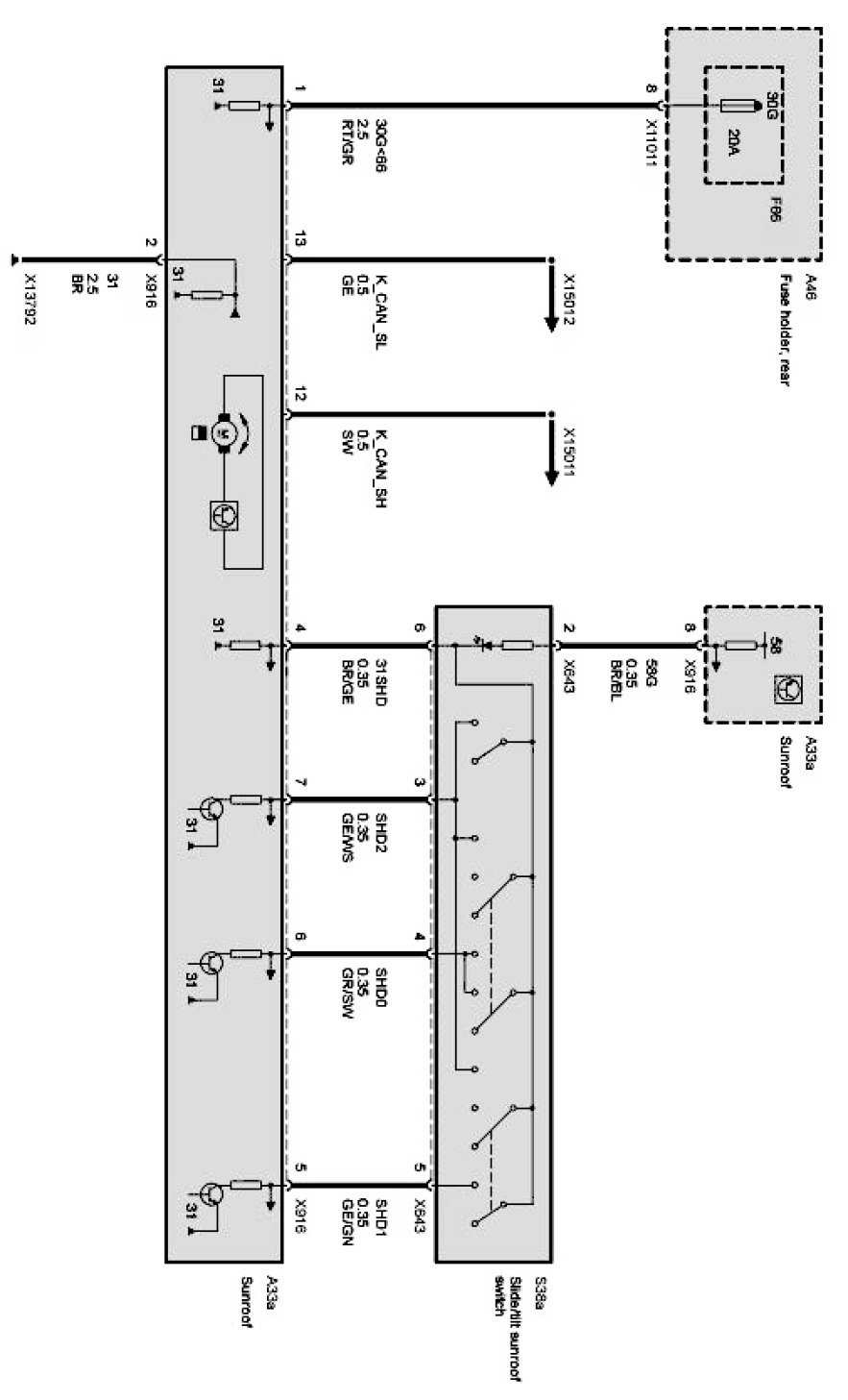

Electric Sunroof (Saloon As of 09/05)

Electric sunroof:
