Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Locking and Security Functions >> Power Window >> Rear Right >> Power Window, Rear Right Door

Power Window, Rear Right Door

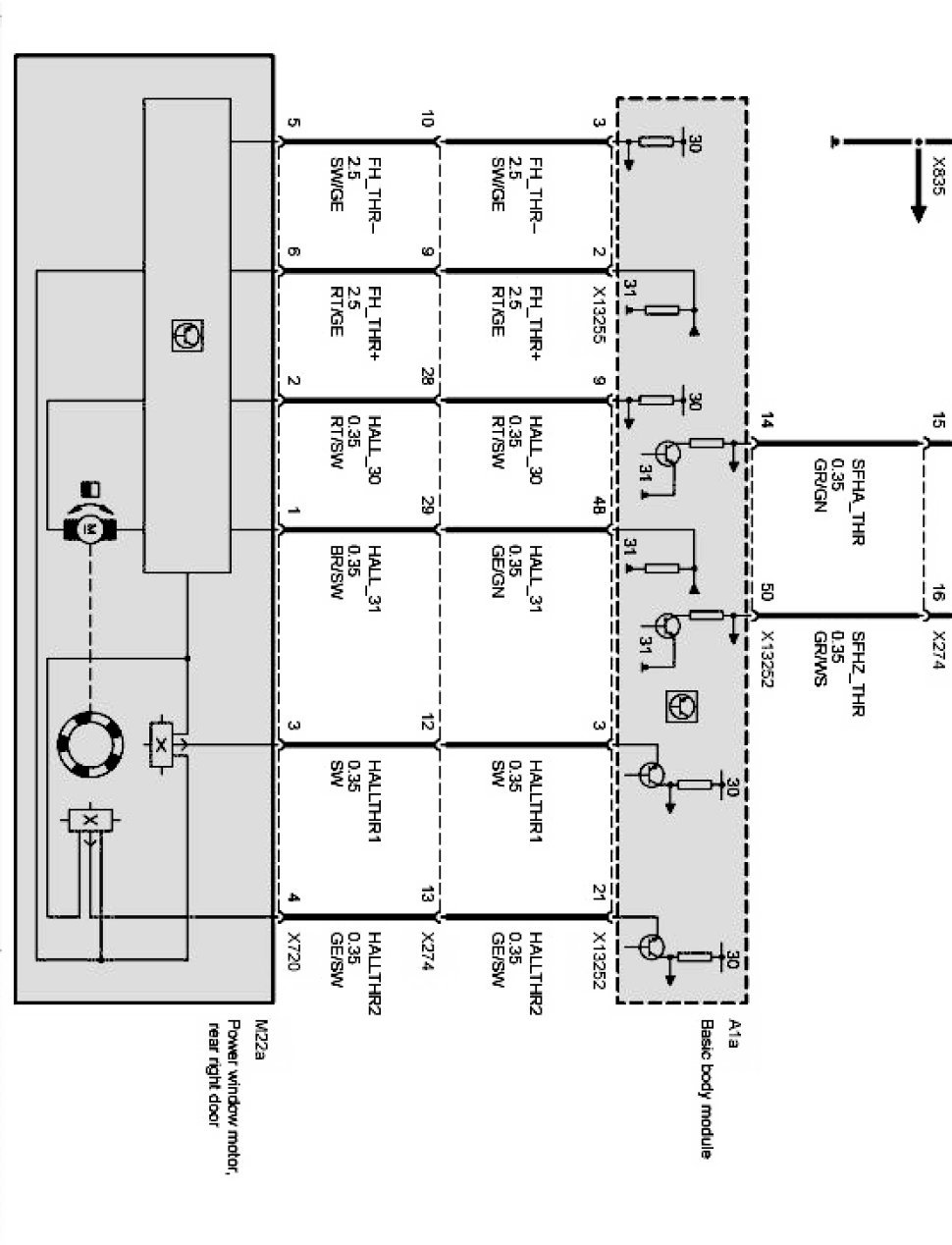

Power window, rear right door Part 1:

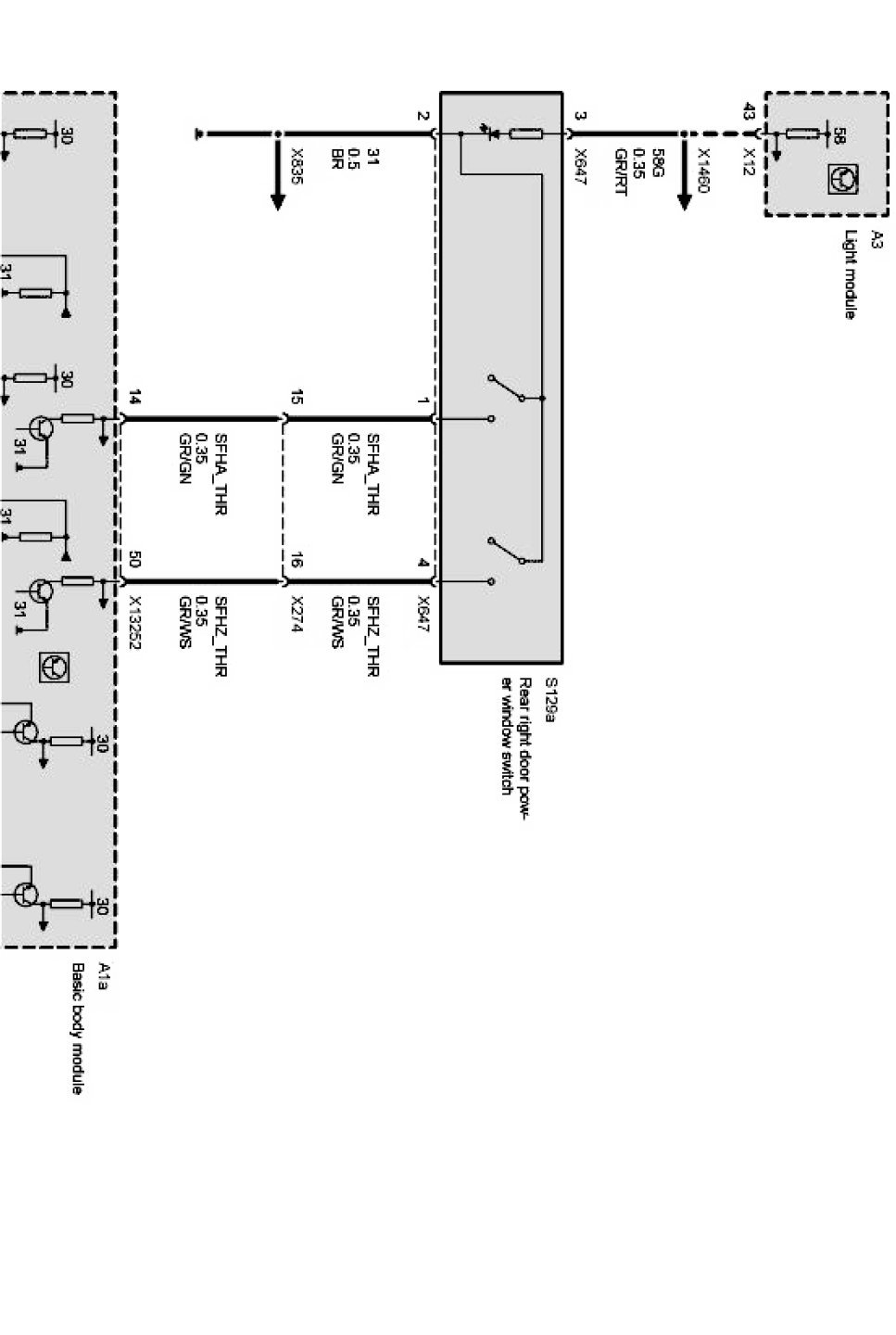

Power window, rear right door Part 2:
