Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Locking and Security Functions >> Power Window >> Rear Left >> Power Window, Rear Left Door

Power Window, Rear Left Door

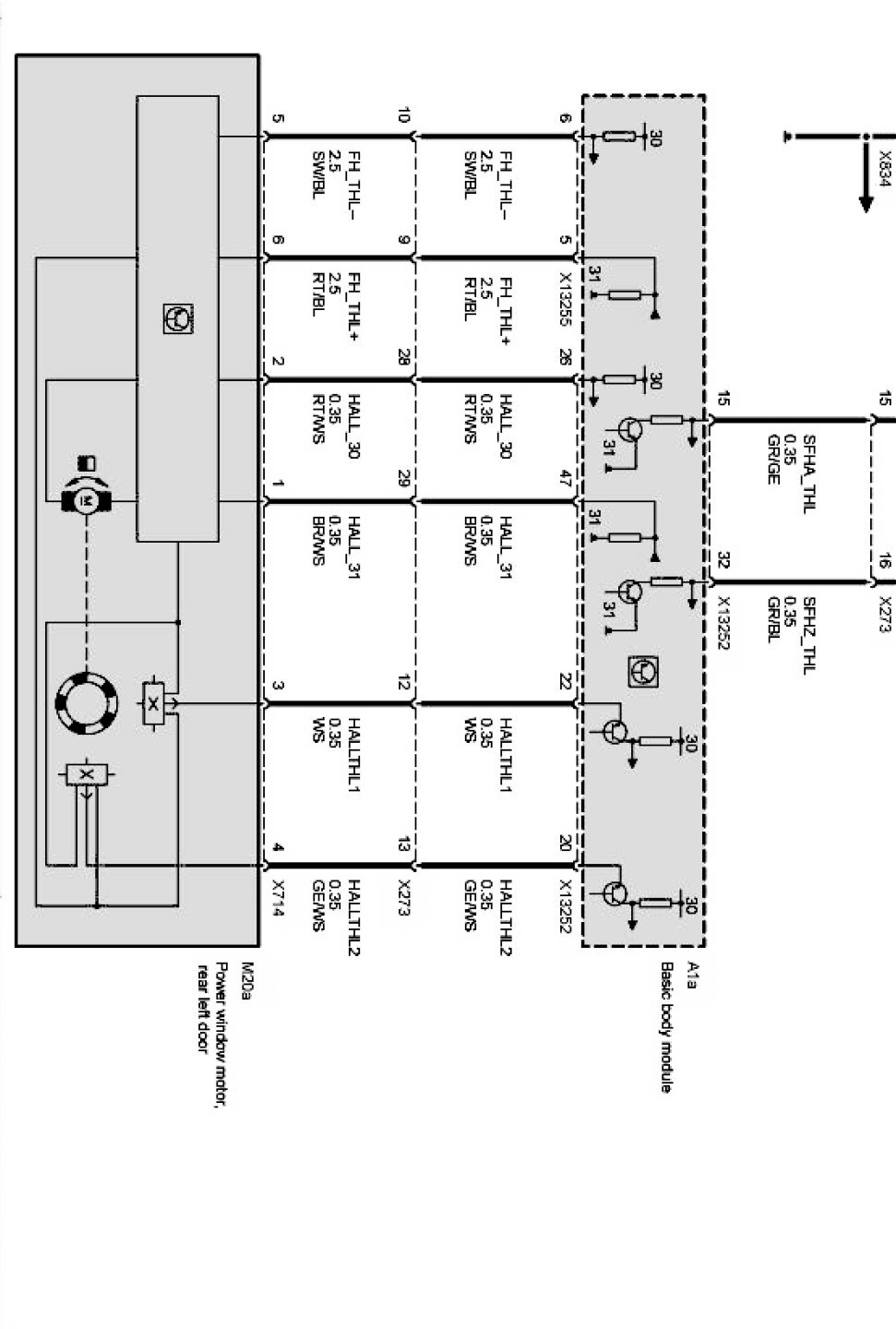

Power window, rear left door Part 1:

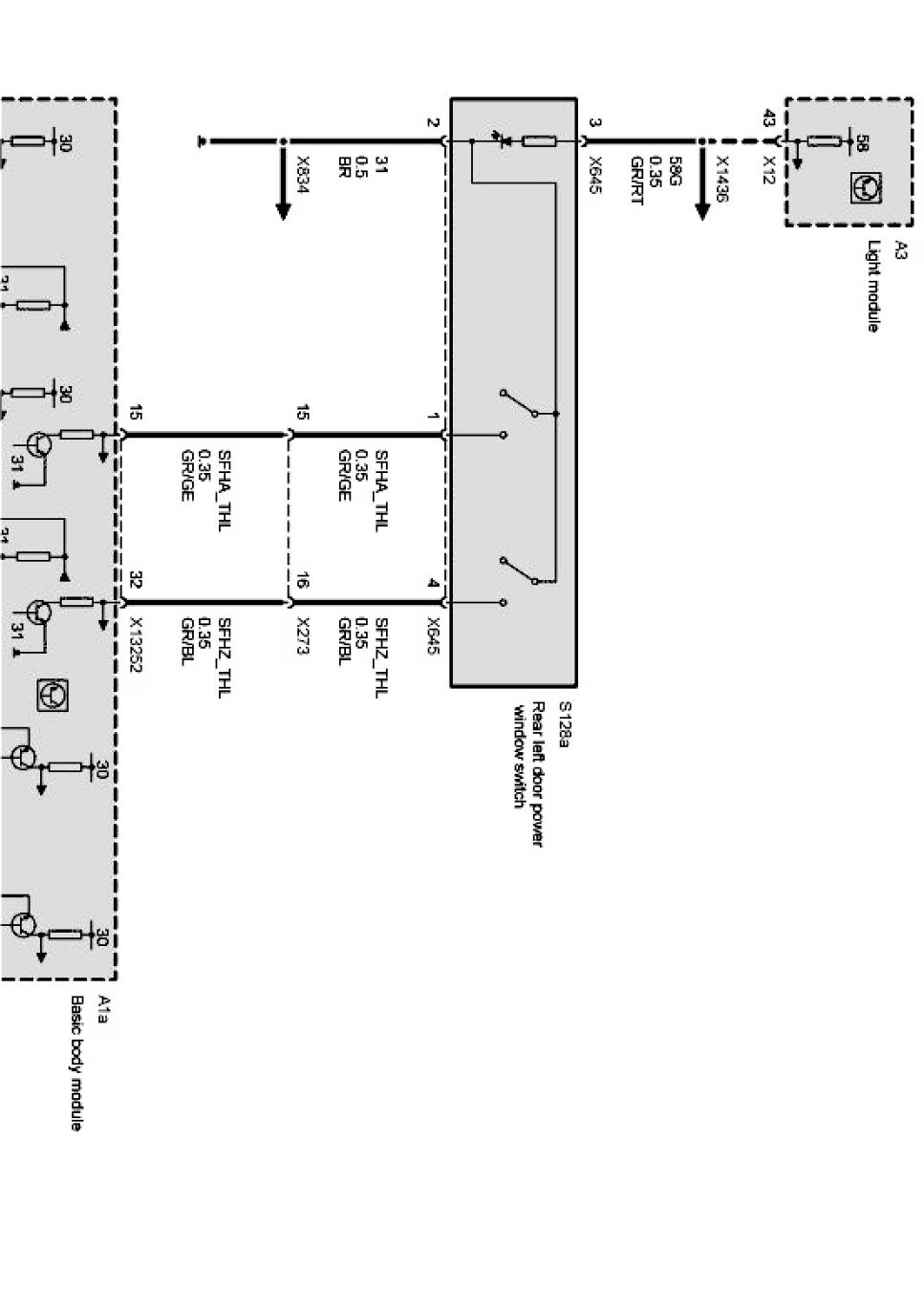

Power window, rear left door Part 2:
