Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Locking and Security Functions >> Power Window >> Passenger's Door (KGM Body Gateway Module) >> Shutdown, Closed-Circuit Current Infringement

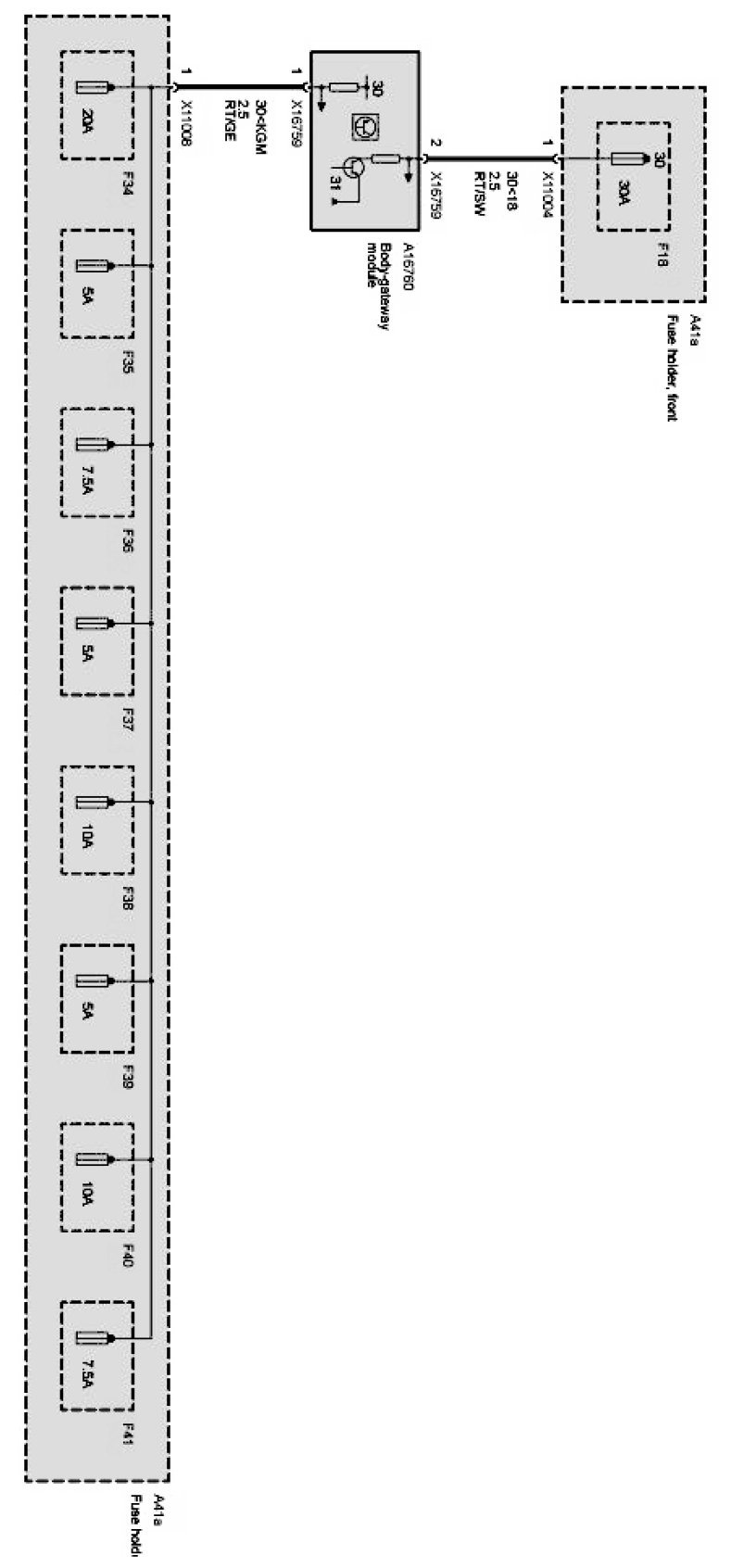

Shutdown, Closed-Circuit Current Infringement

Shutdown, closed-circuit current infringement:
