Remote Control (Without Convertible)

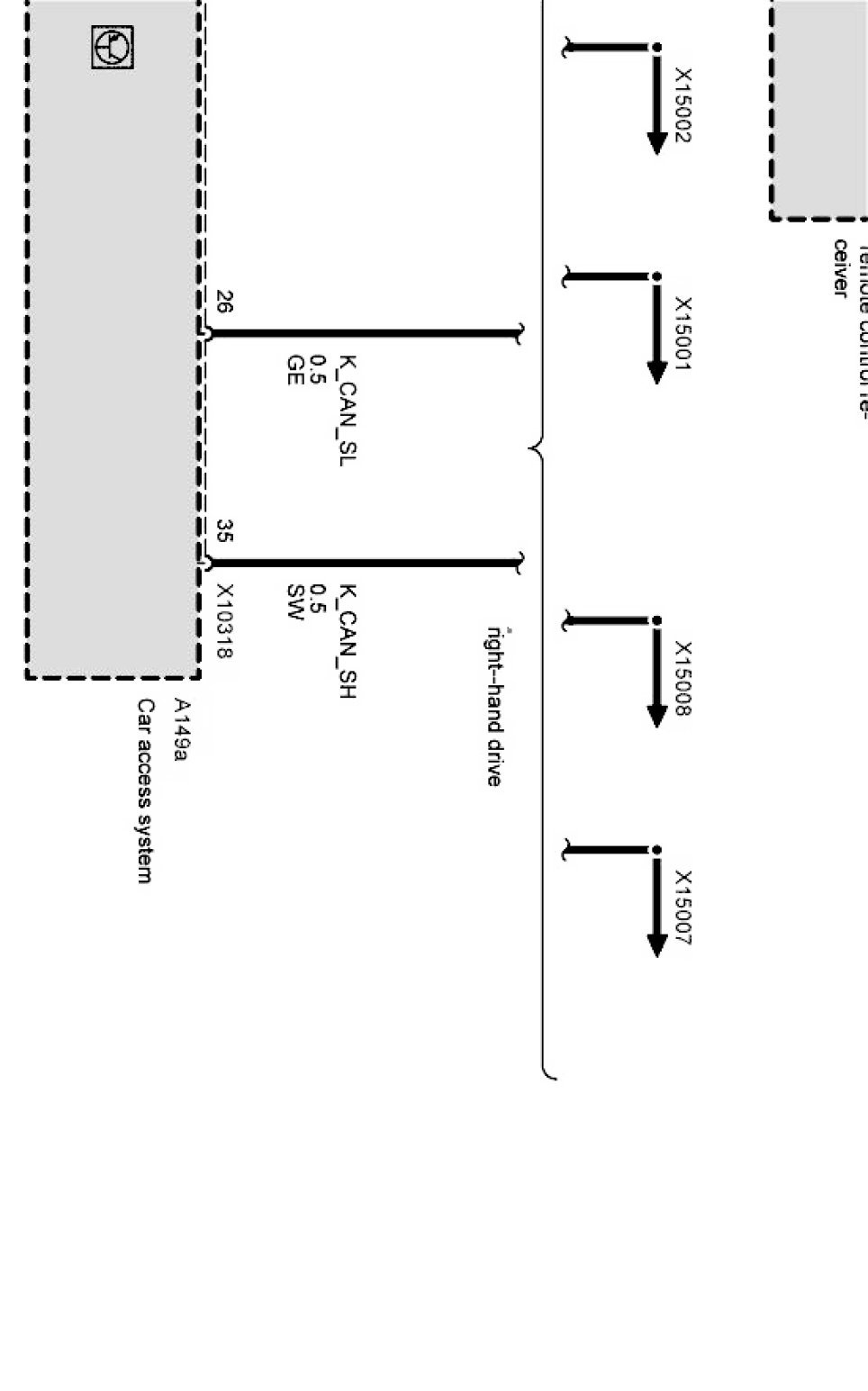

Remote control Part 1:

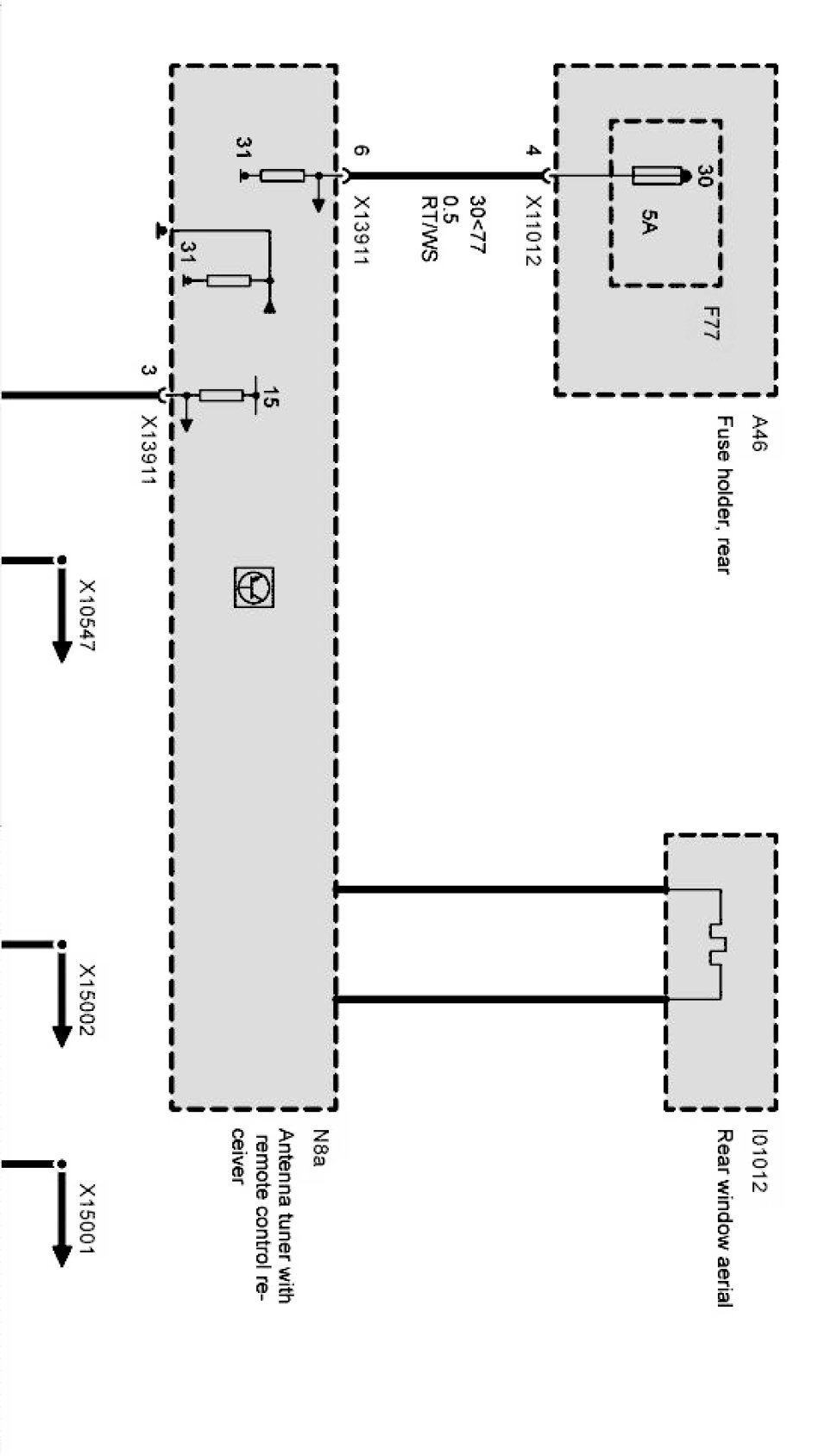

Remote control Part 2:

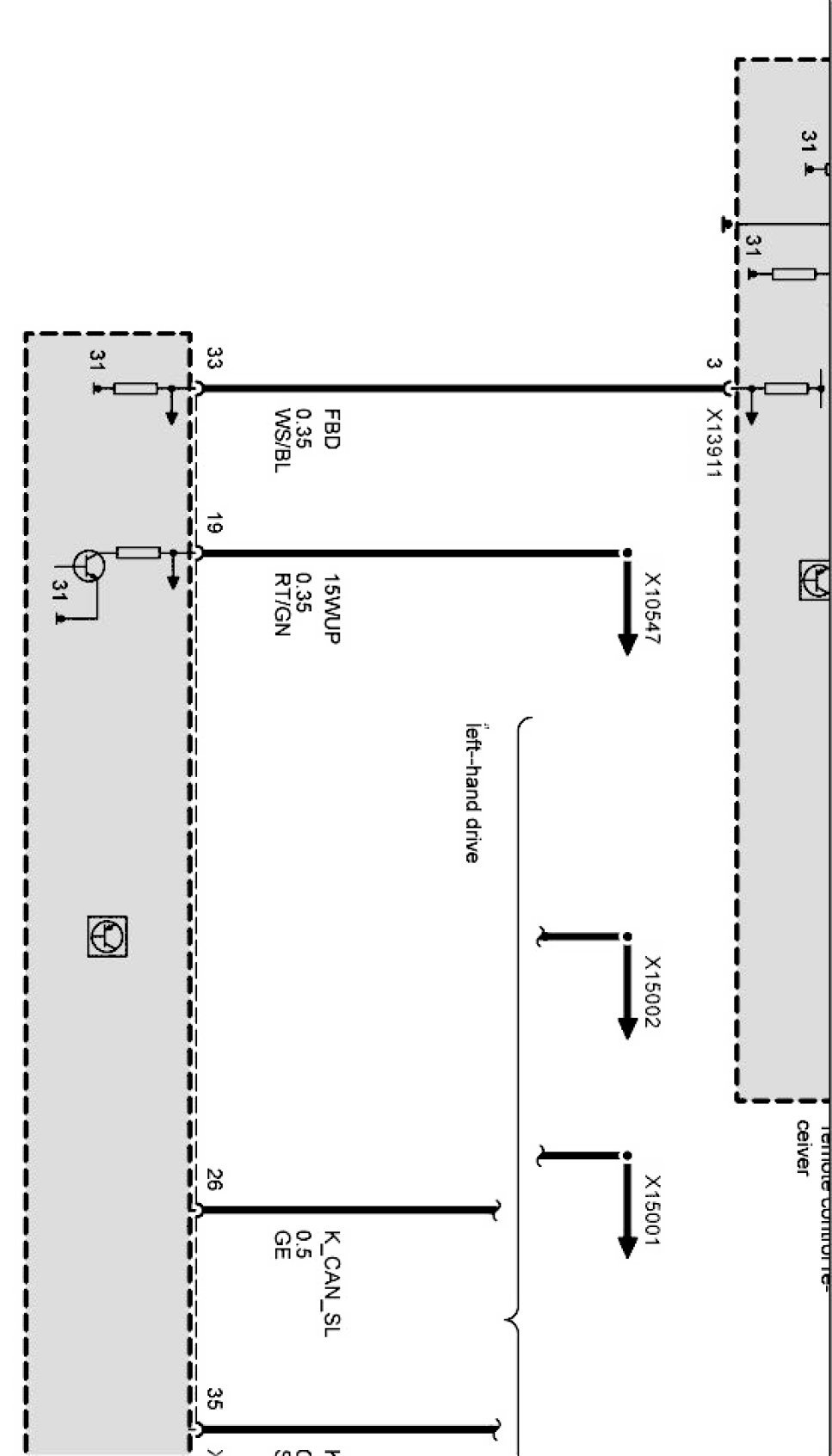

Remote control Part 3:
