Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Locking and Security Functions >> Comfort Access System (As of 09/05) >> Transmitting Aerial (6 Series)

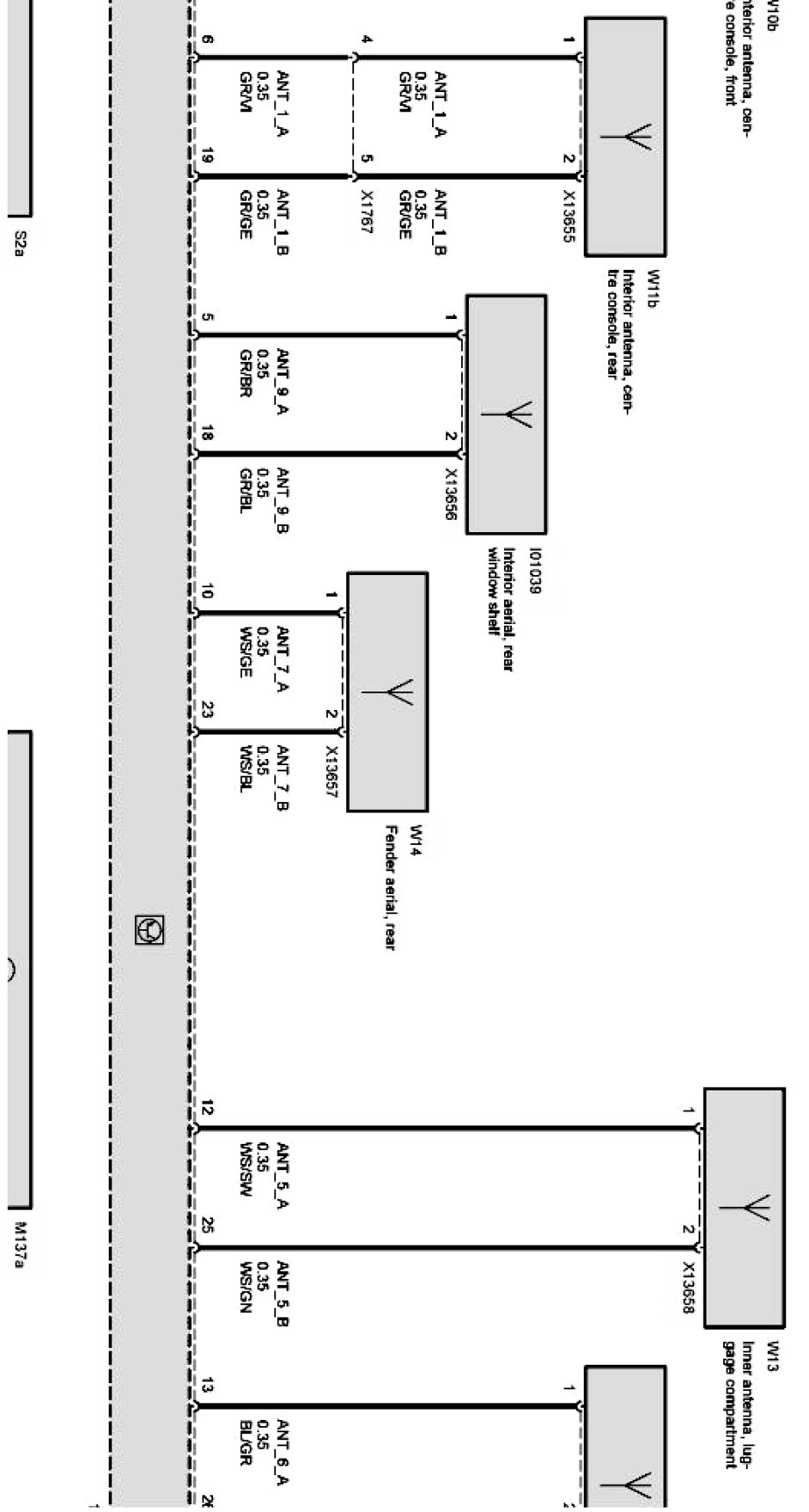

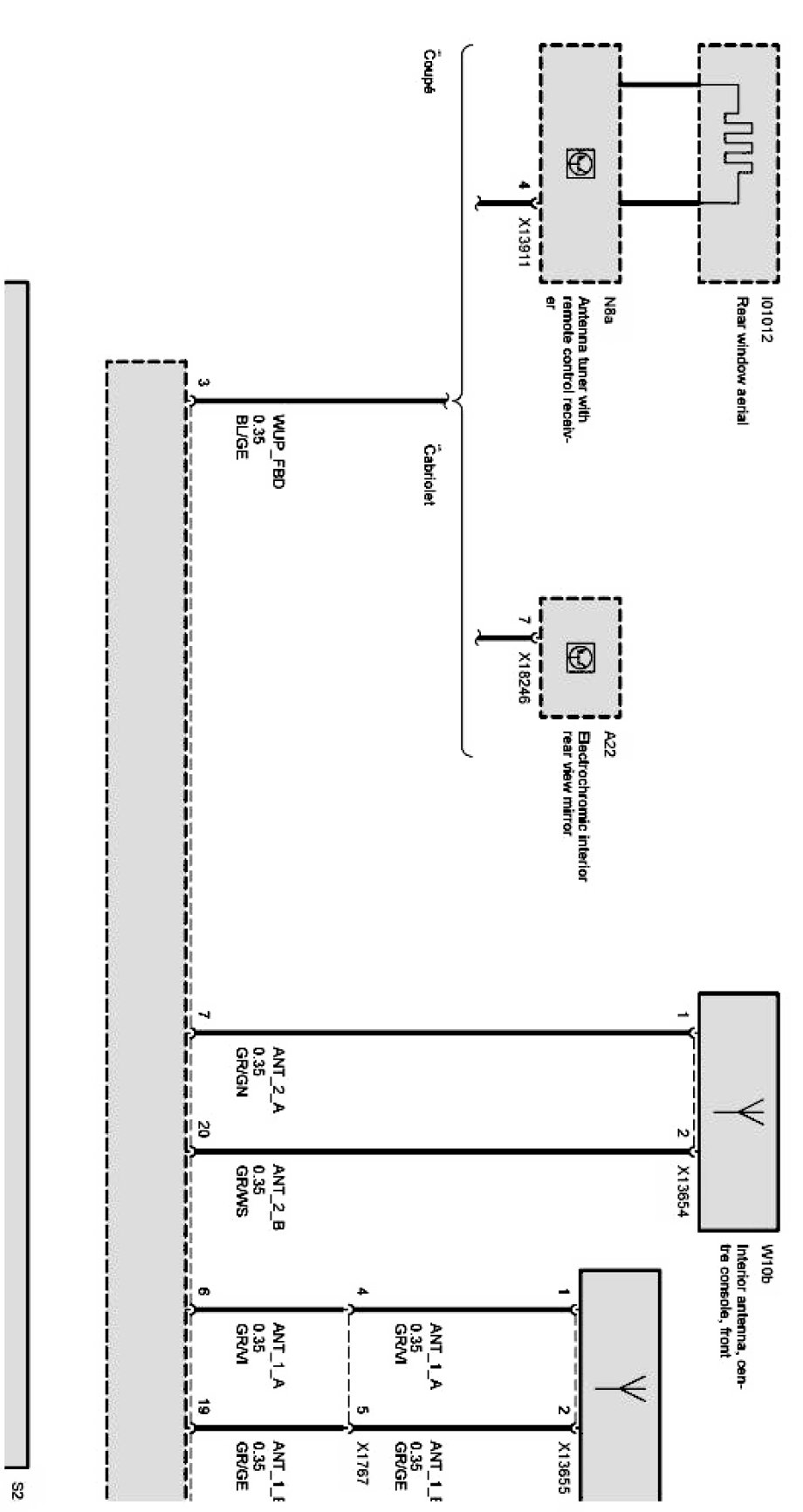

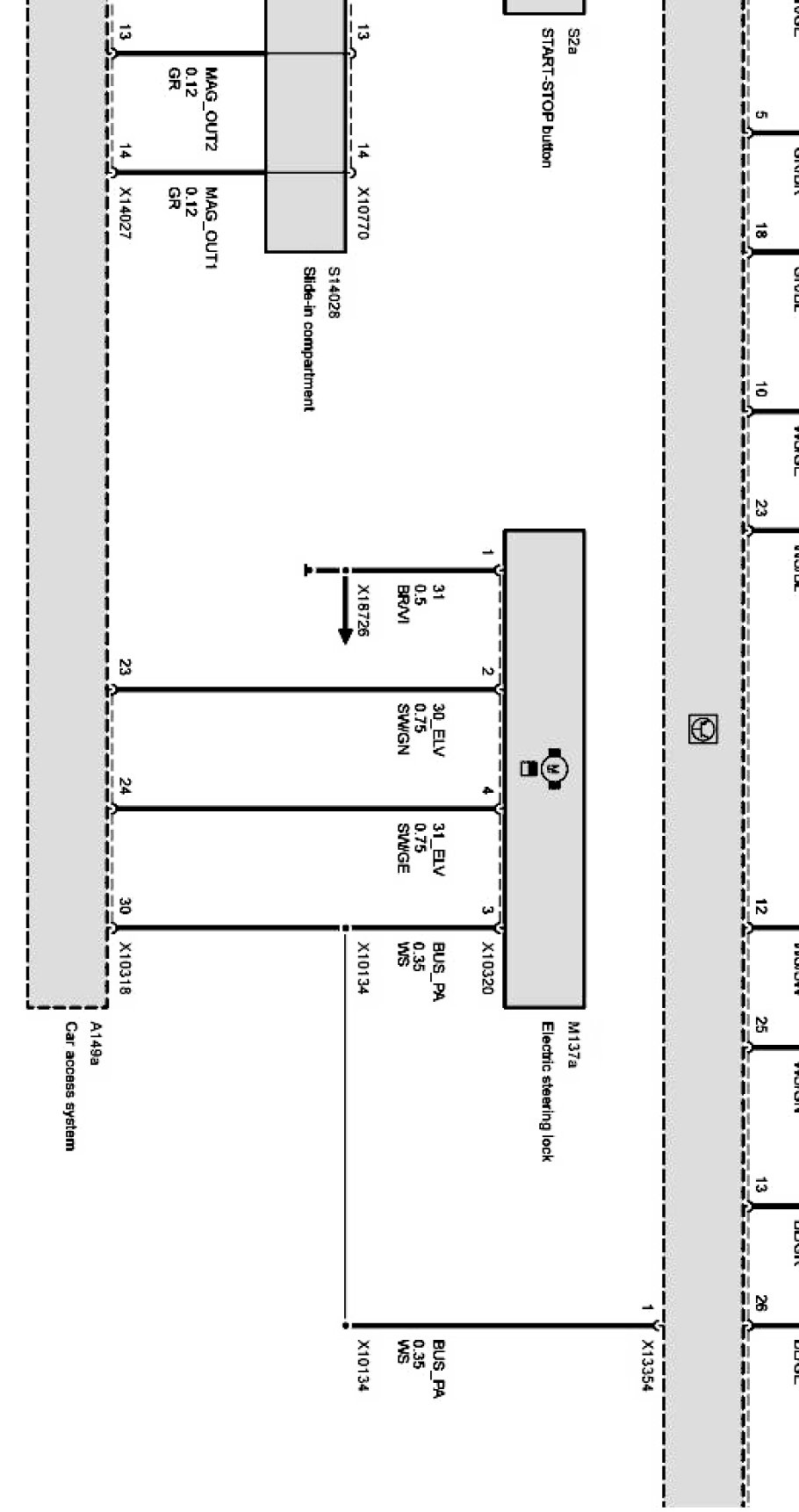

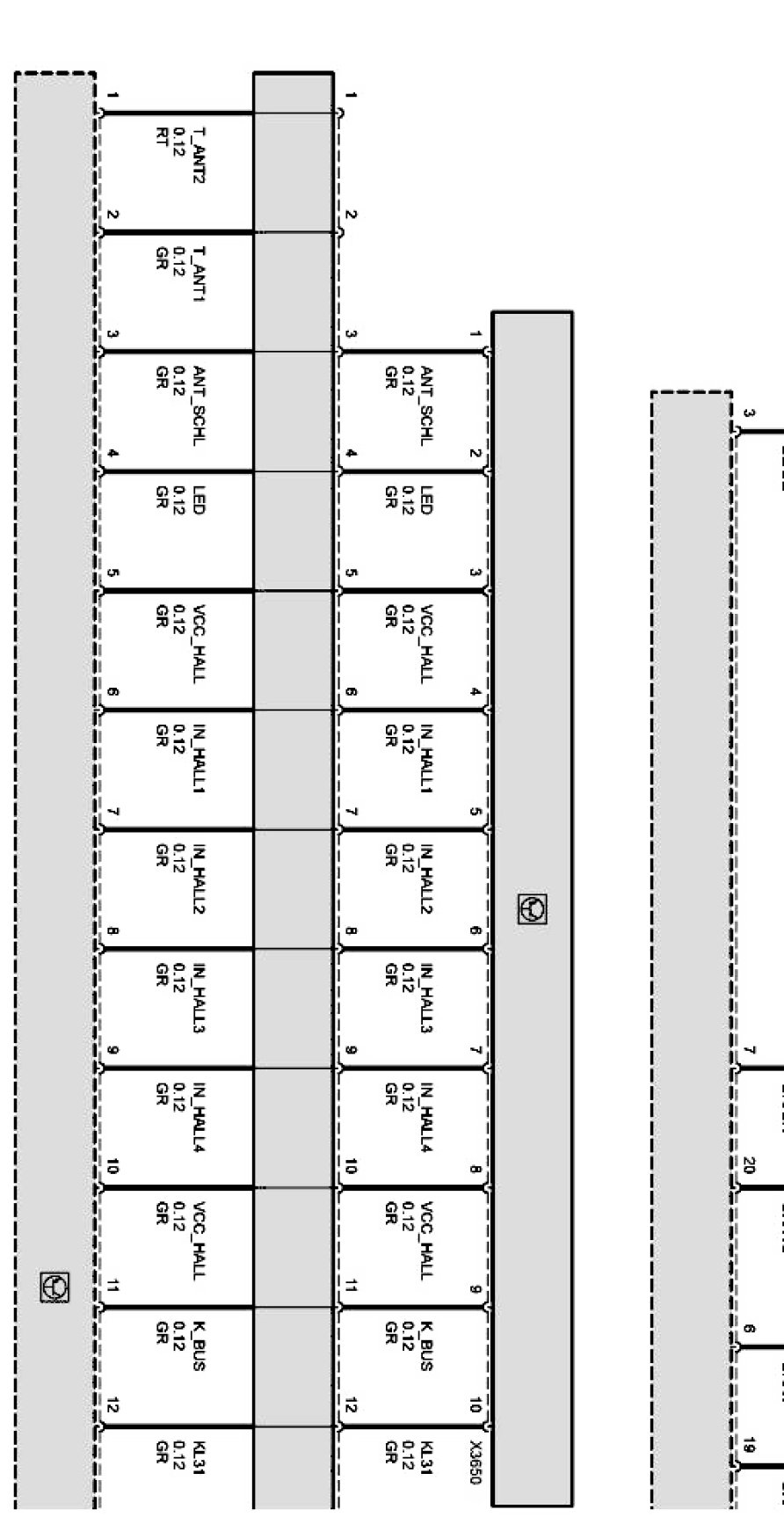

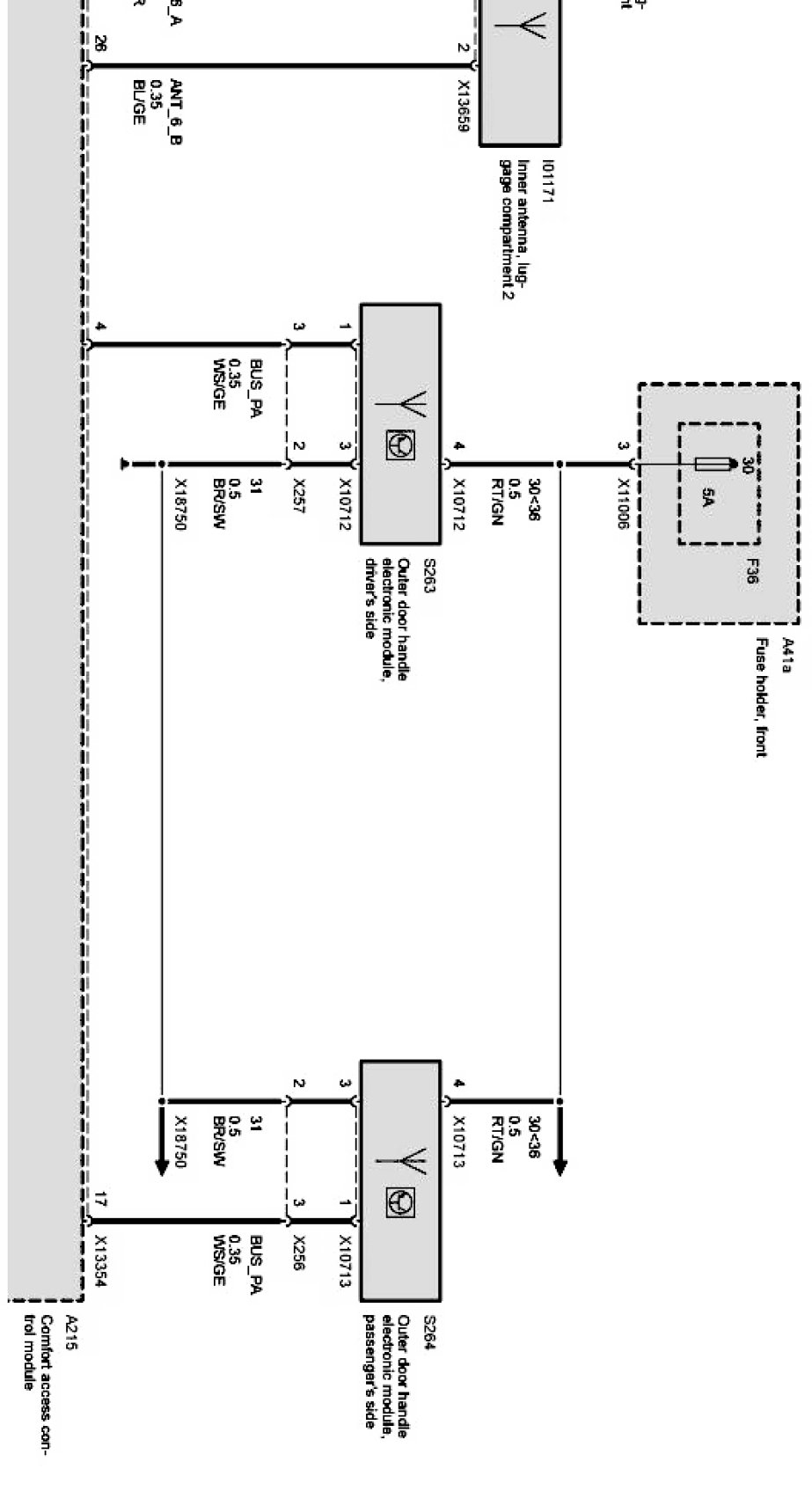

Transmitting Aerial (6 Series)
