Interior Lights (Touring With SHD Slide/Tilt Sunroof 2)

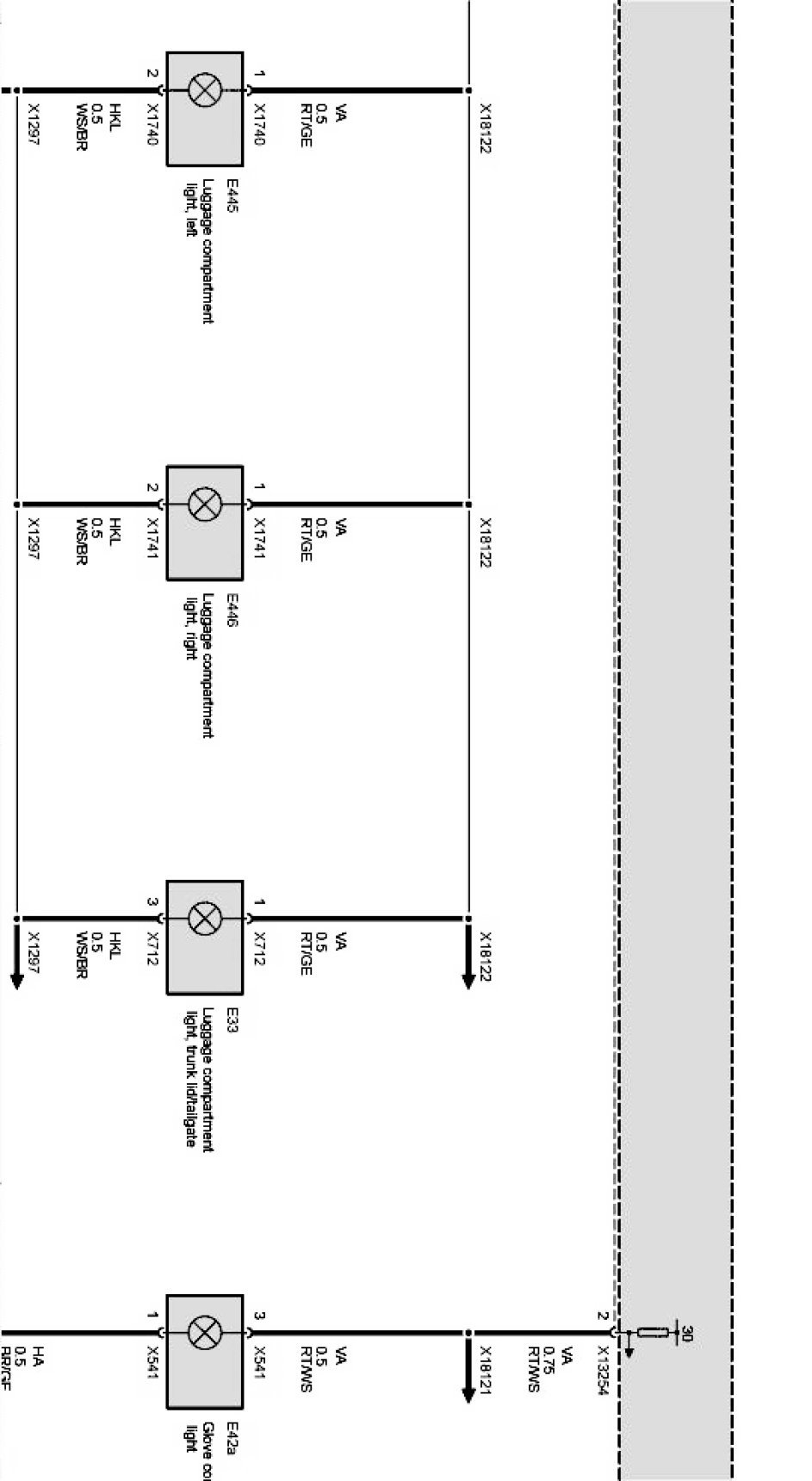

Interior lights Part 1:

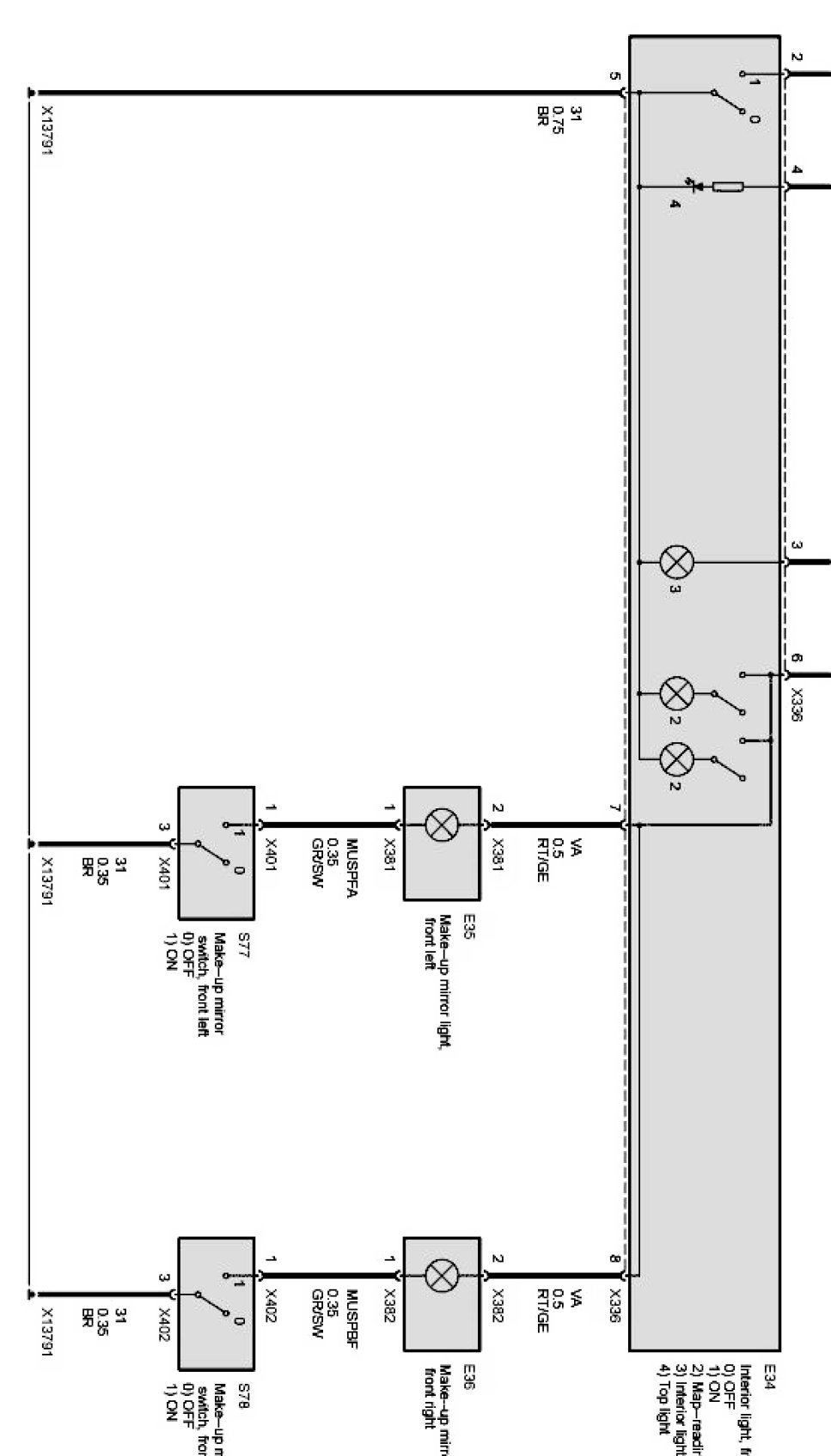

Interior lights Part 2:

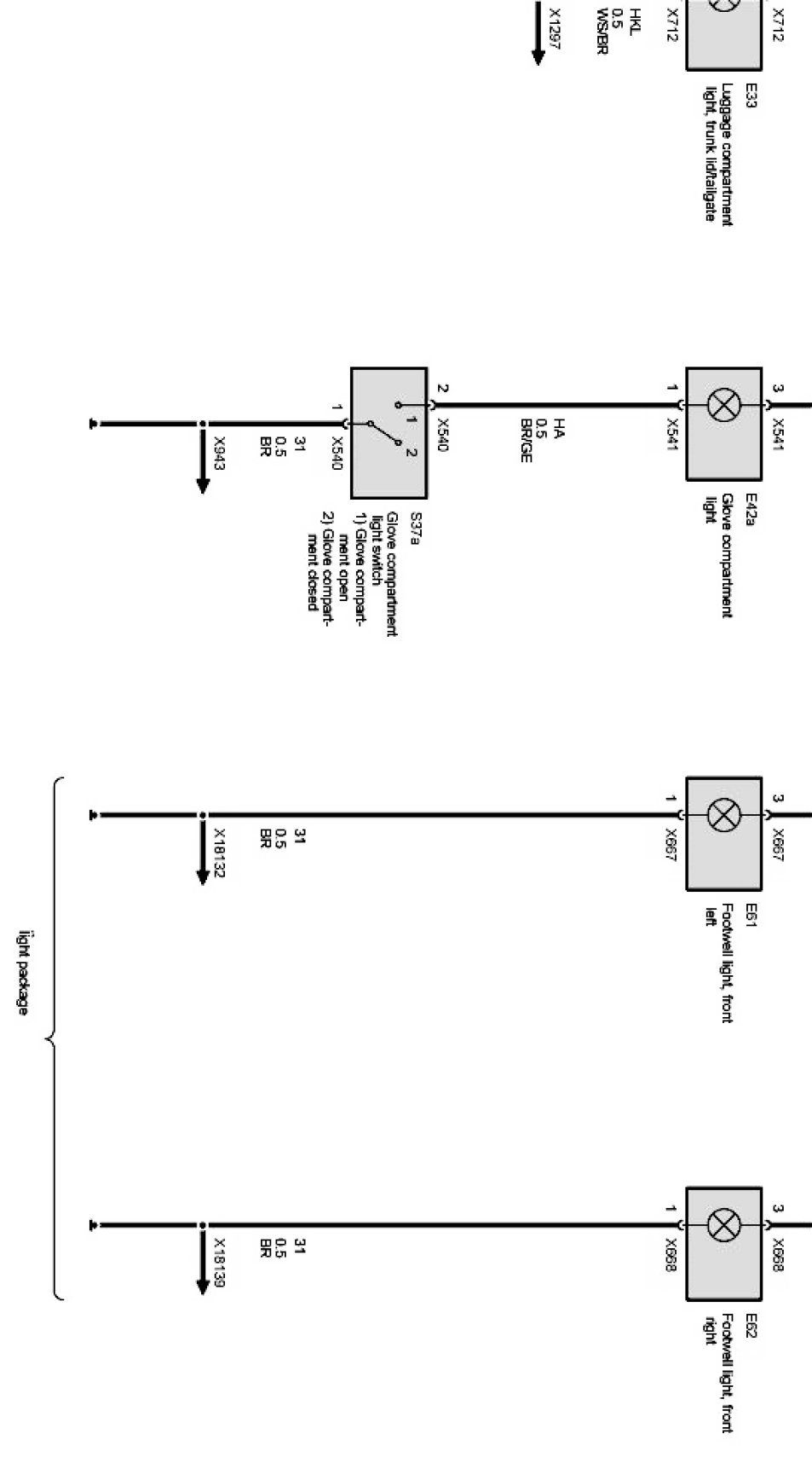

Interior lights Part 3:

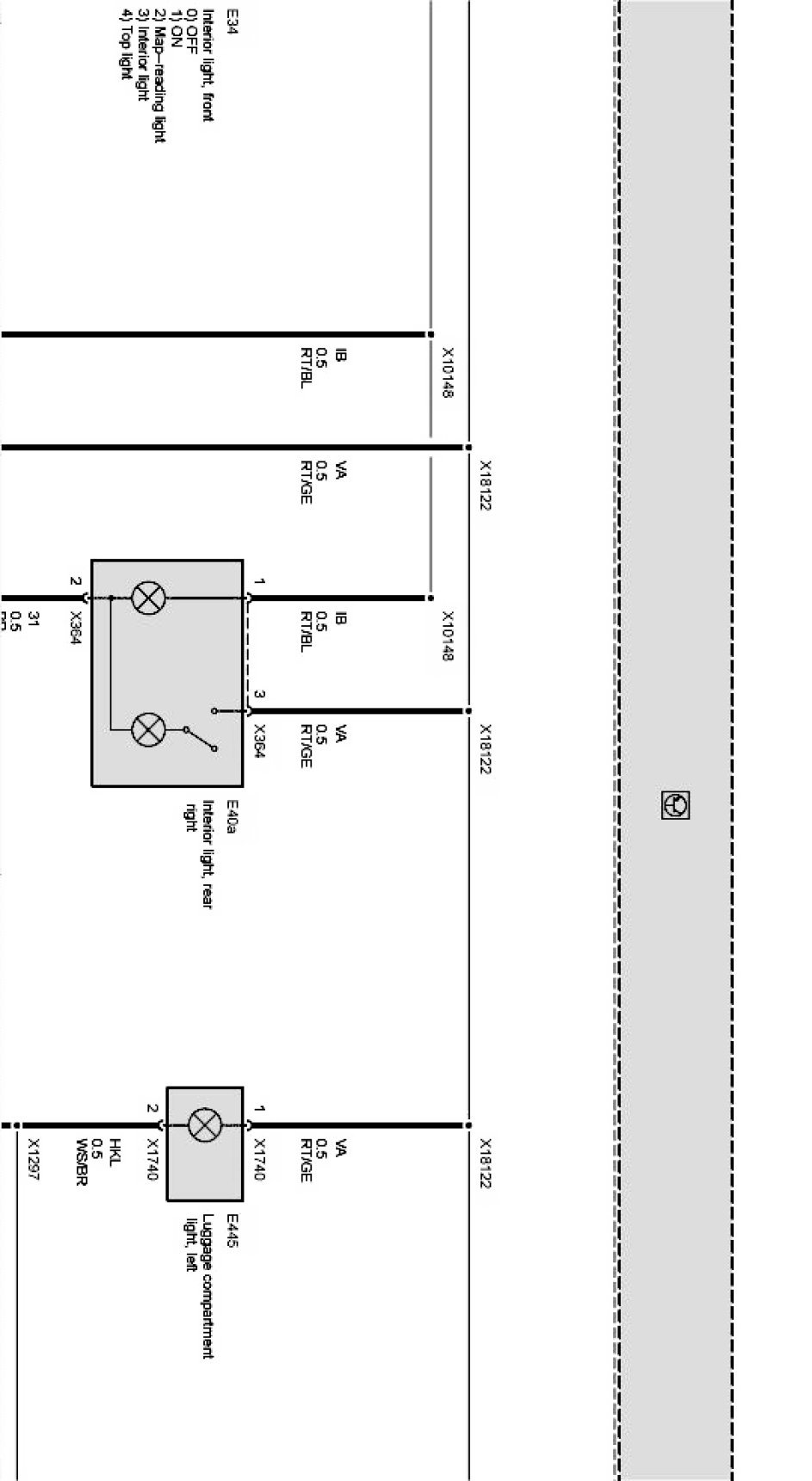

Interior lights Part 4:

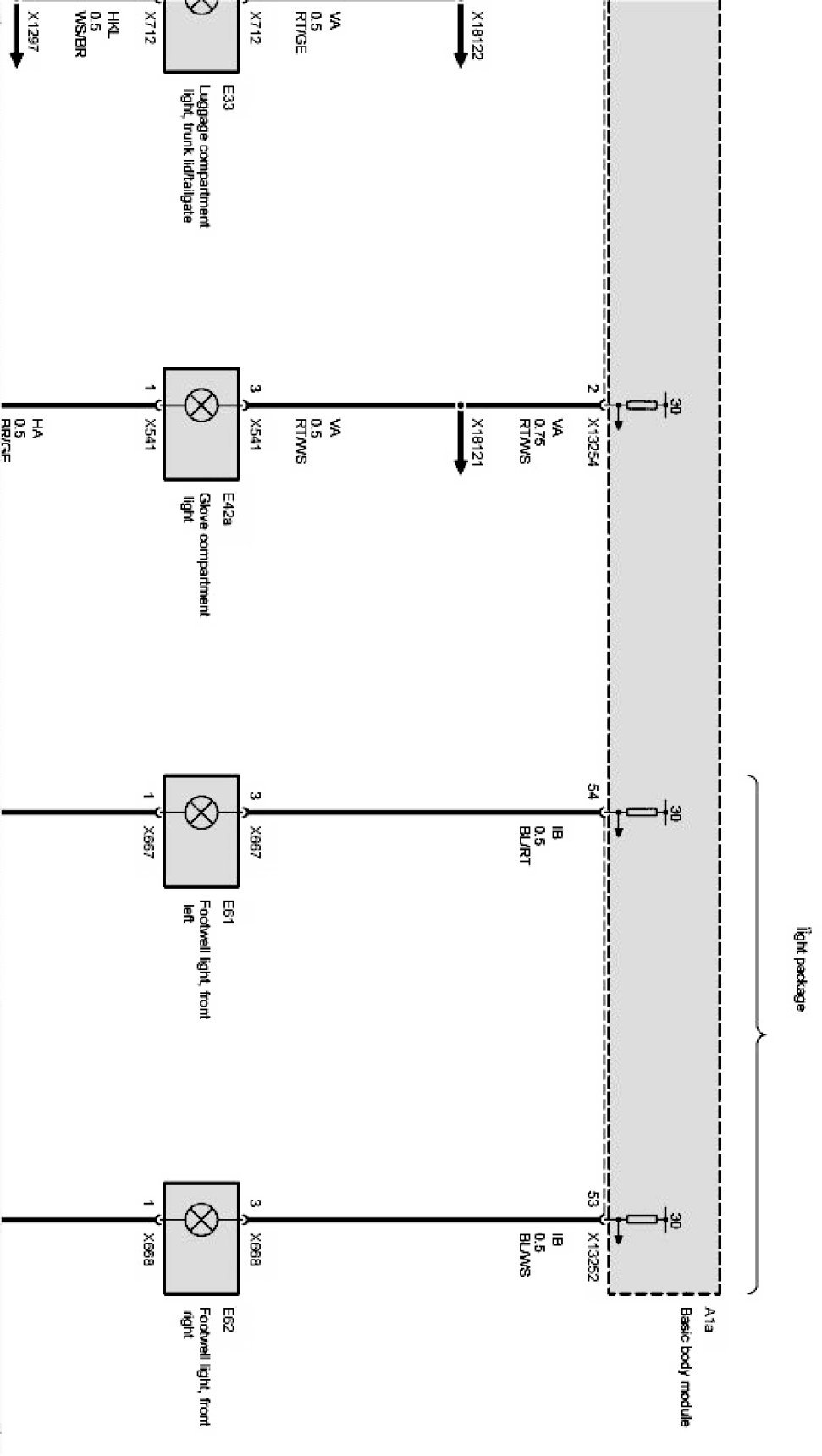

Interior lights Part 5:

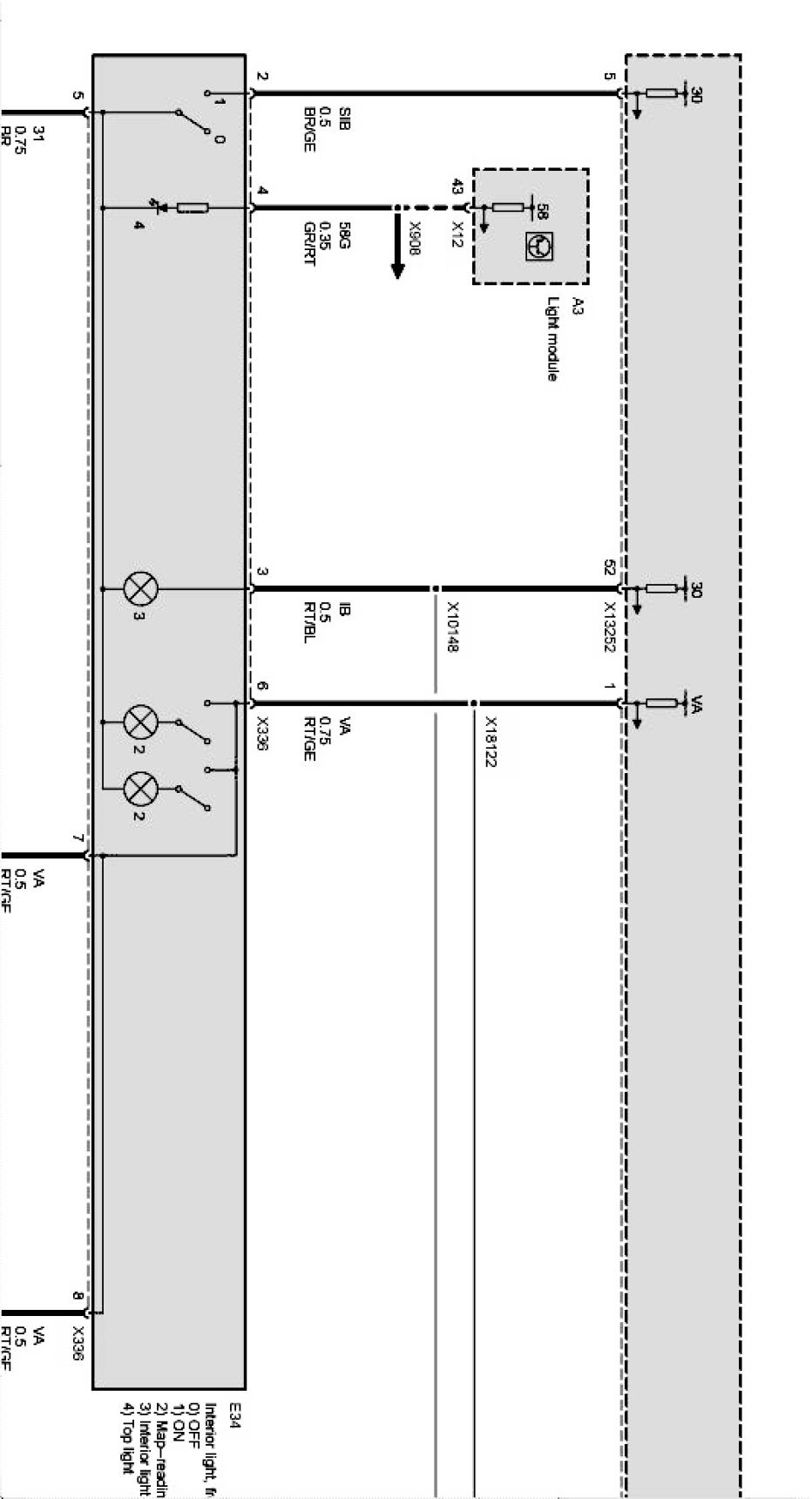

Interior lights Part 6:

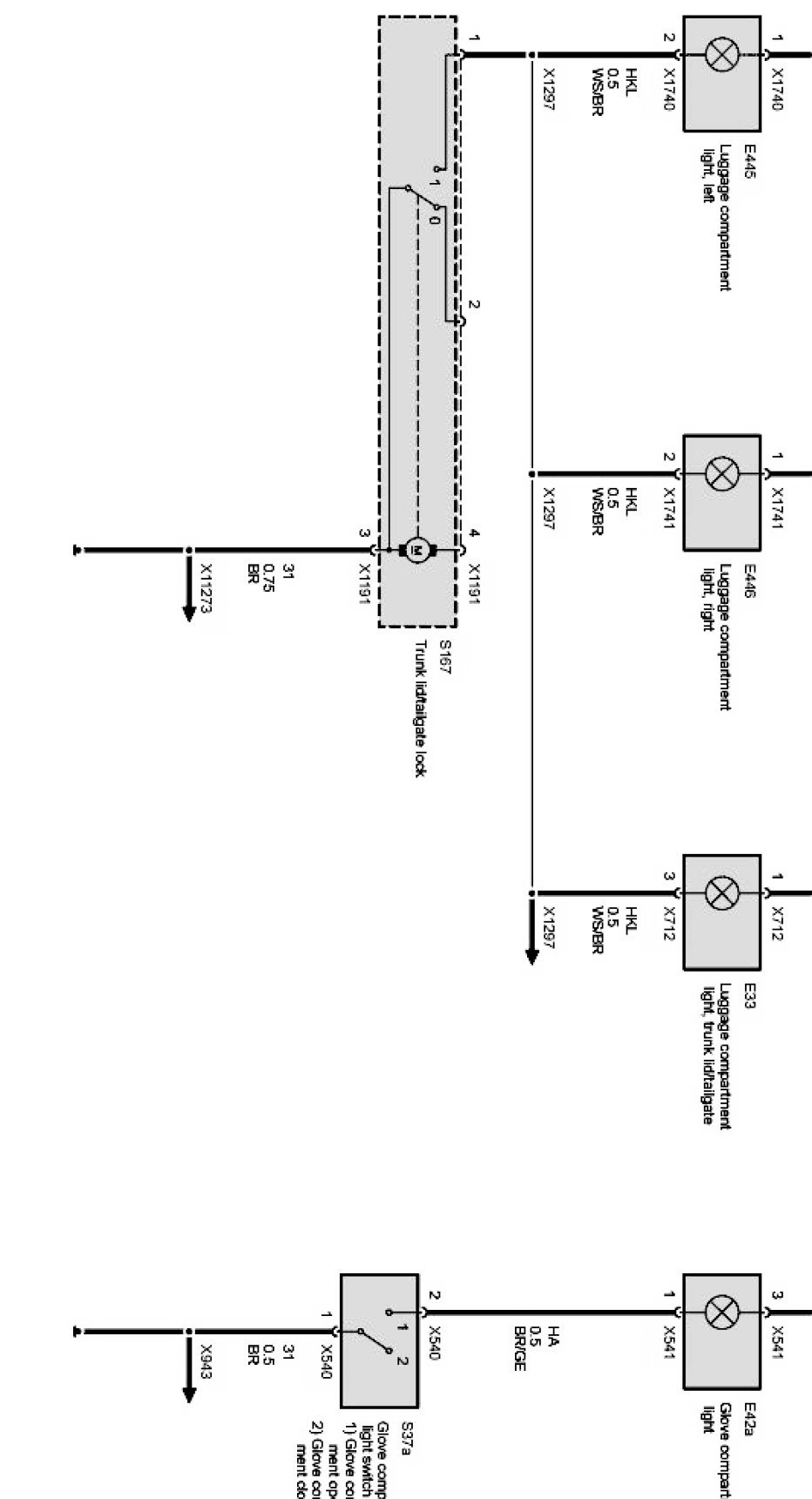

Interior lights Part 7:



Interior lights Part 8:
