Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Lighting >> Home Lamps >> Light Module Supply >> Supply, Light Module (Up to 03/05)

Supply, Light Module (Up to 03/05)

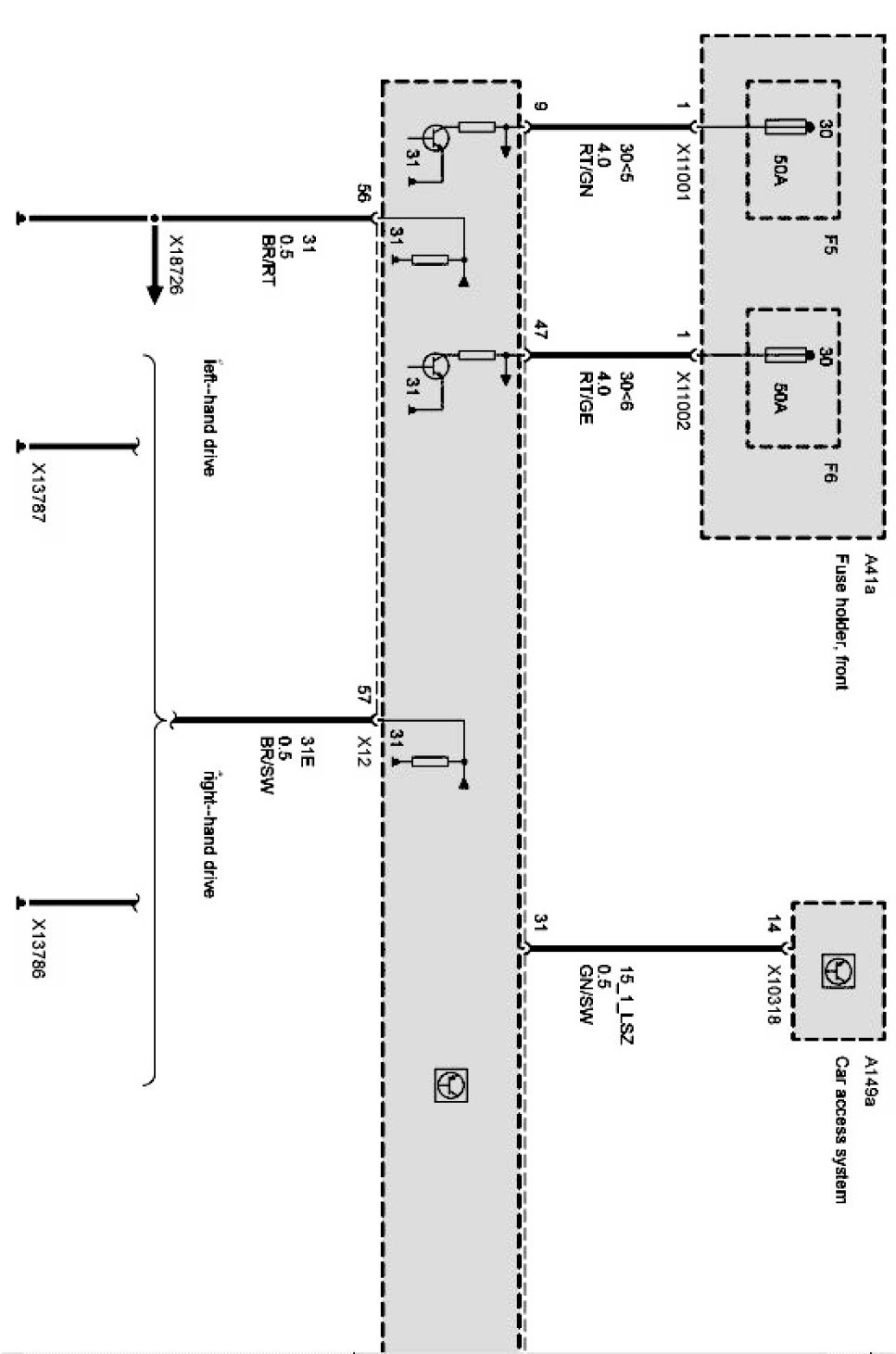

Supply, light module Part 1:

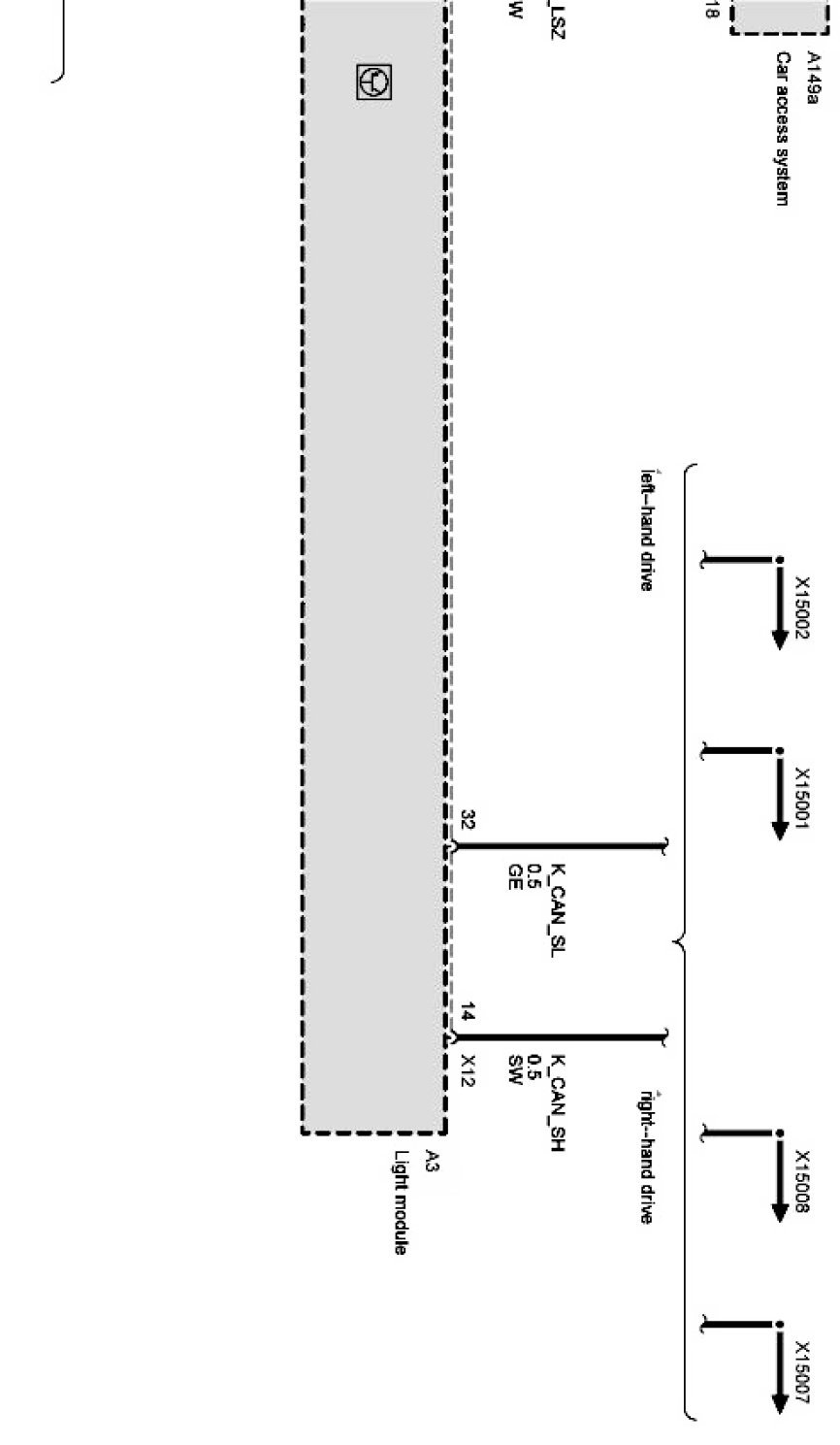

Supply, light module Part 2:
