Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Lighting >> High Beam Assist (FLA High Beam Assist) >> Electrochromic Mirror (5 Series)

Electrochromic Mirror (5 Series)

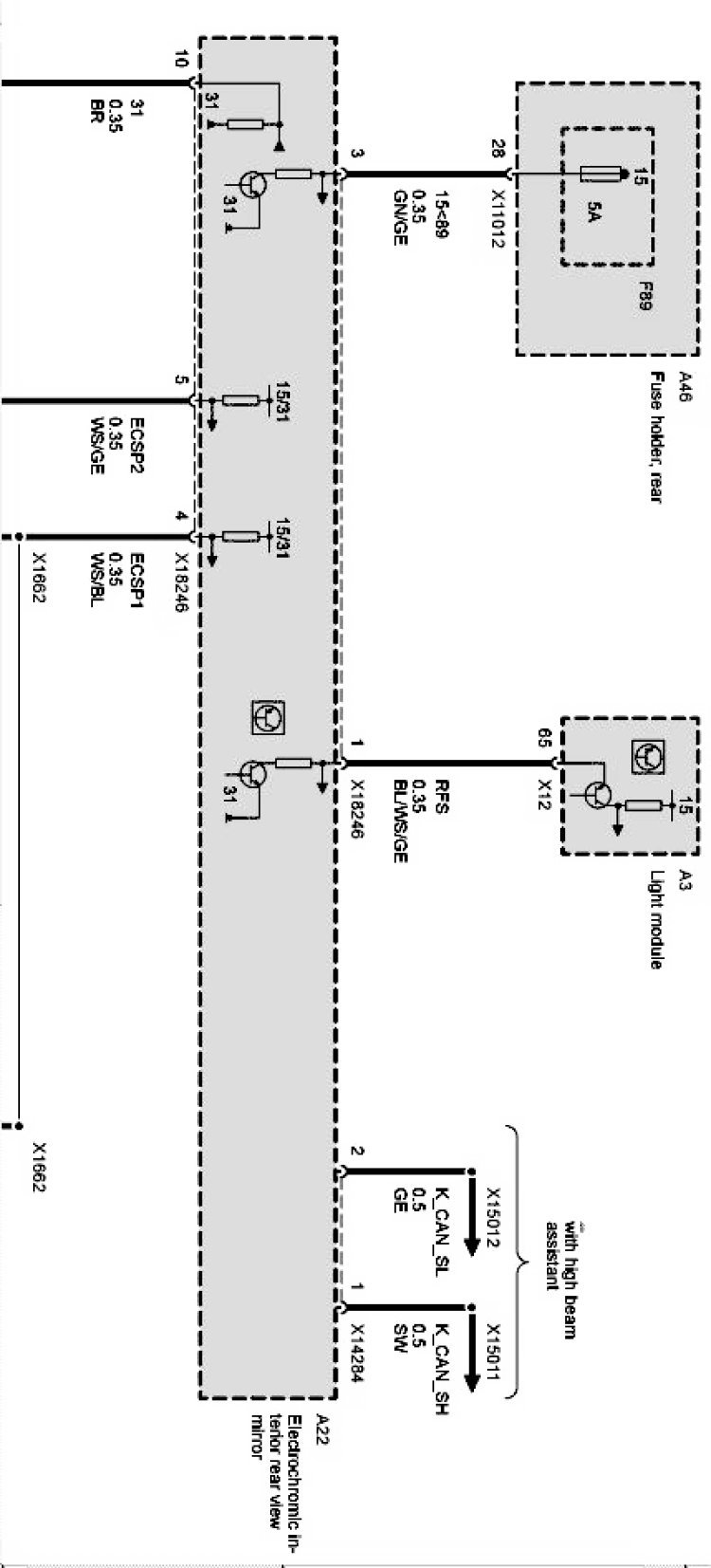

Electrochromic mirror Part 1:

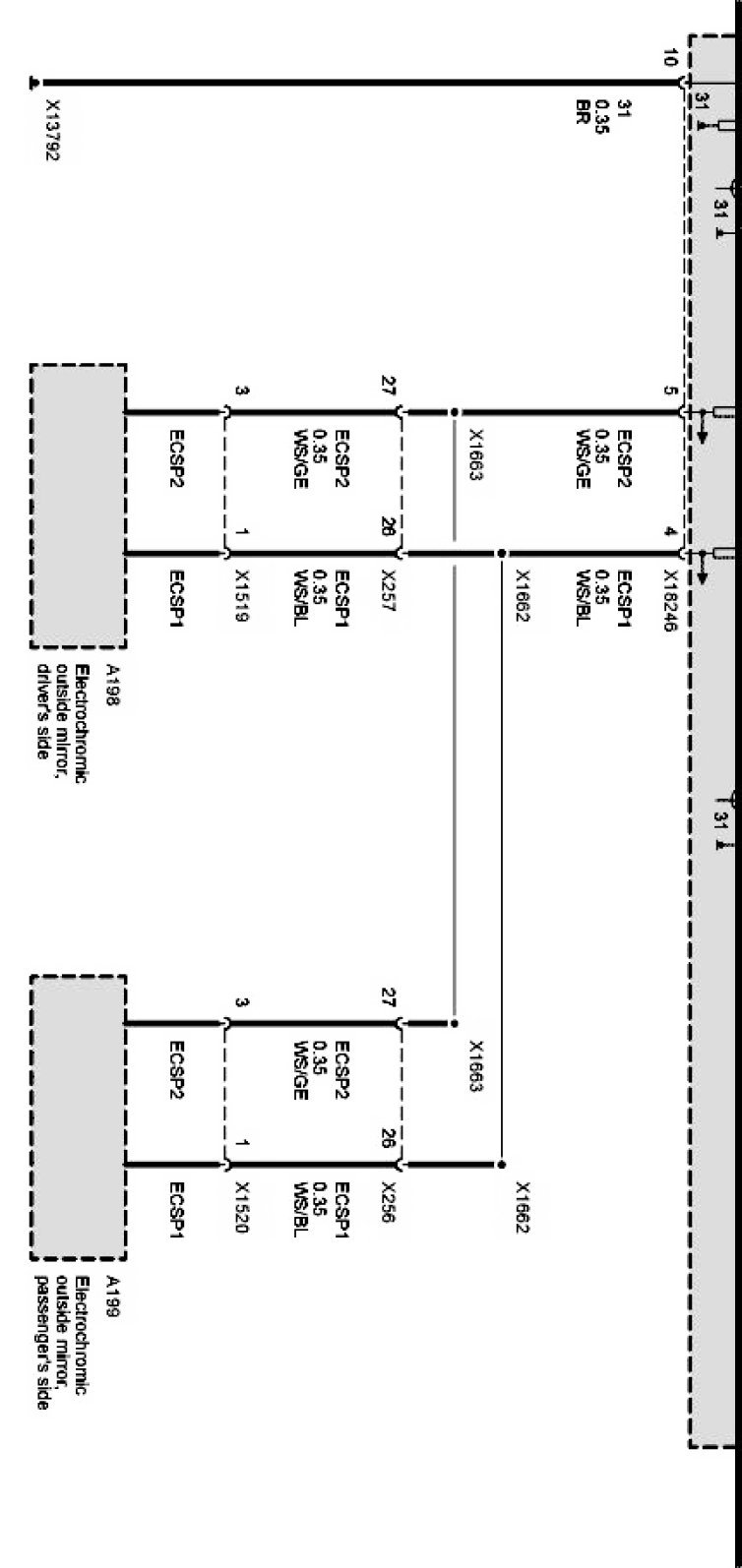

Electrochromic mirror Part 2:
