Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Lighting >> Fog Lights >> Front Fog Lights and Rear Fog Lights (Touring As of 03/05 Up to 03/07)

Front Fog Lights and Rear Fog Lights (Touring As of 03/05 Up to 03/07)

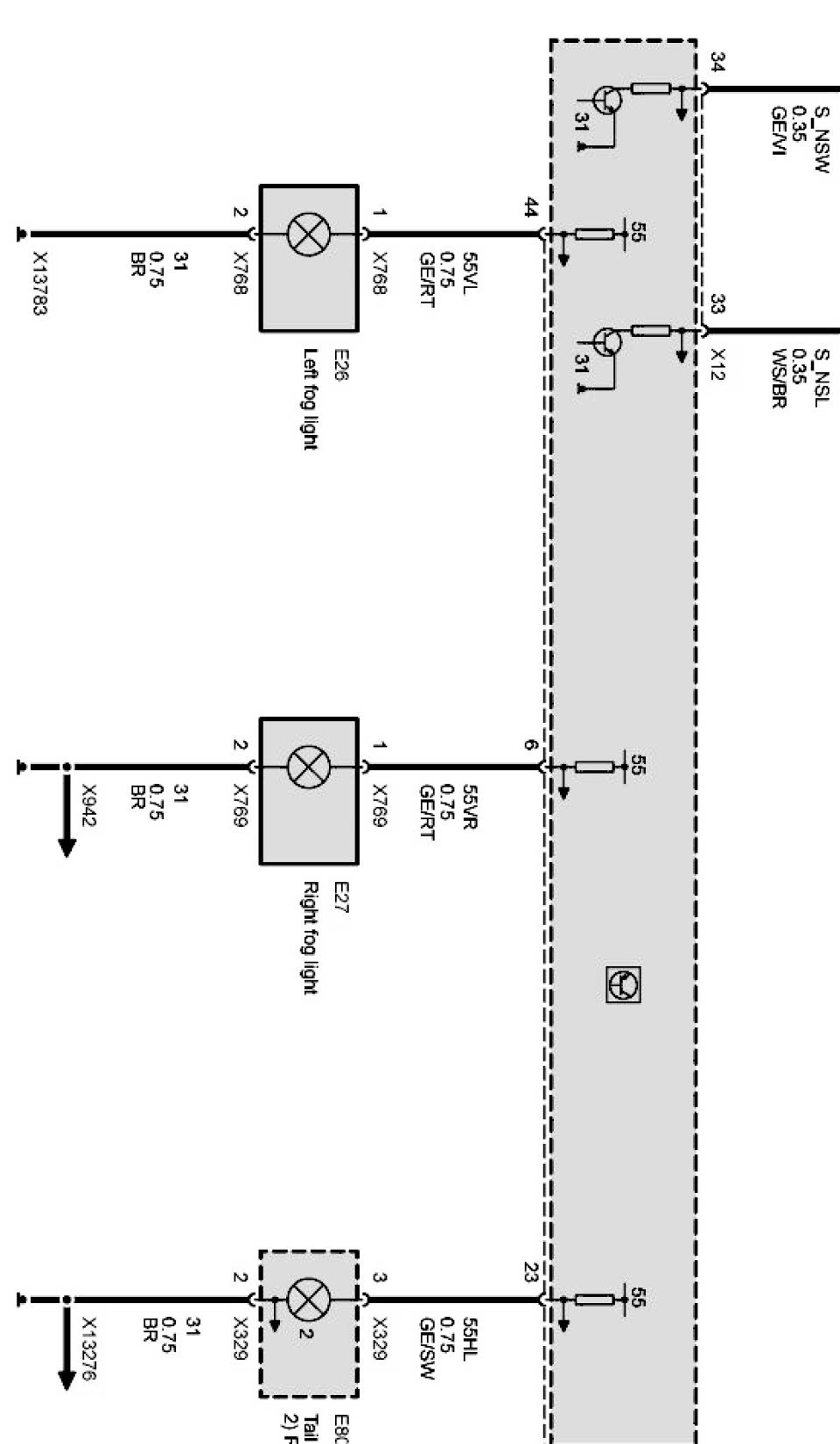

Front fog lights and rear fog lights Part 1:

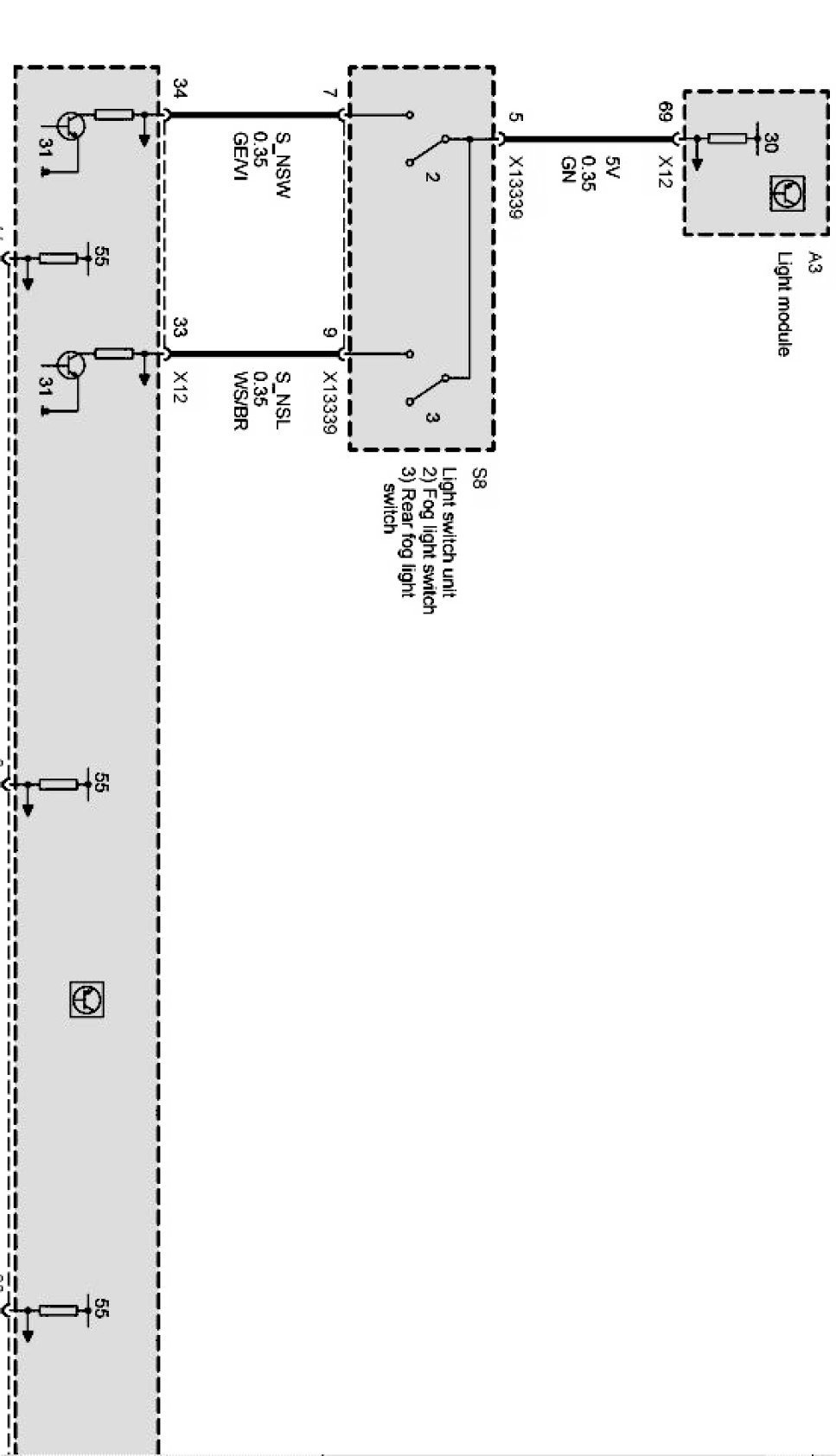

Front fog lights and rear fog lights Part 2:

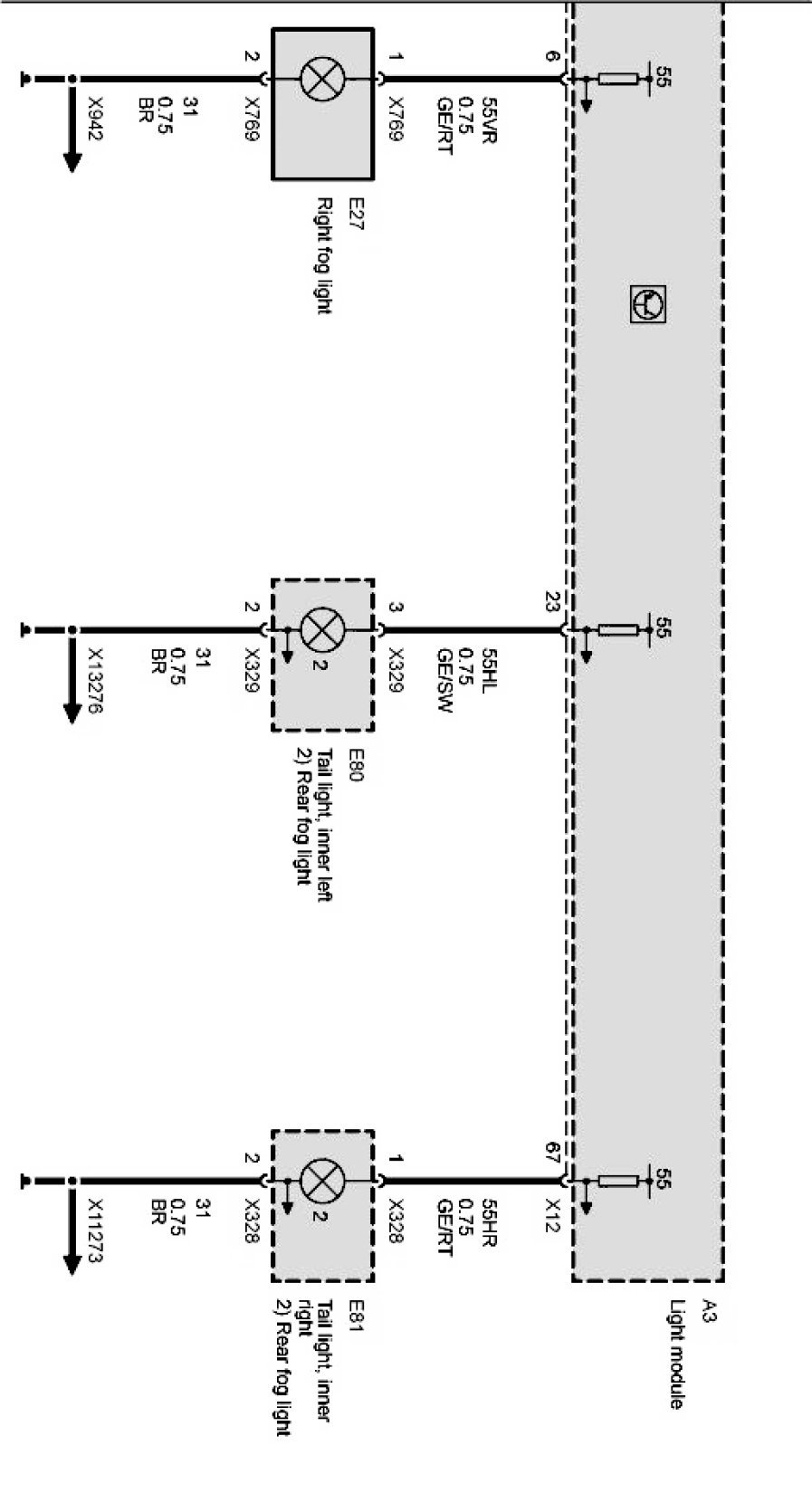

Front fog lights and rear fog lights Part 3:
