Low Beam/High Beam (6 Series As of 09/05 Up to 09/07)

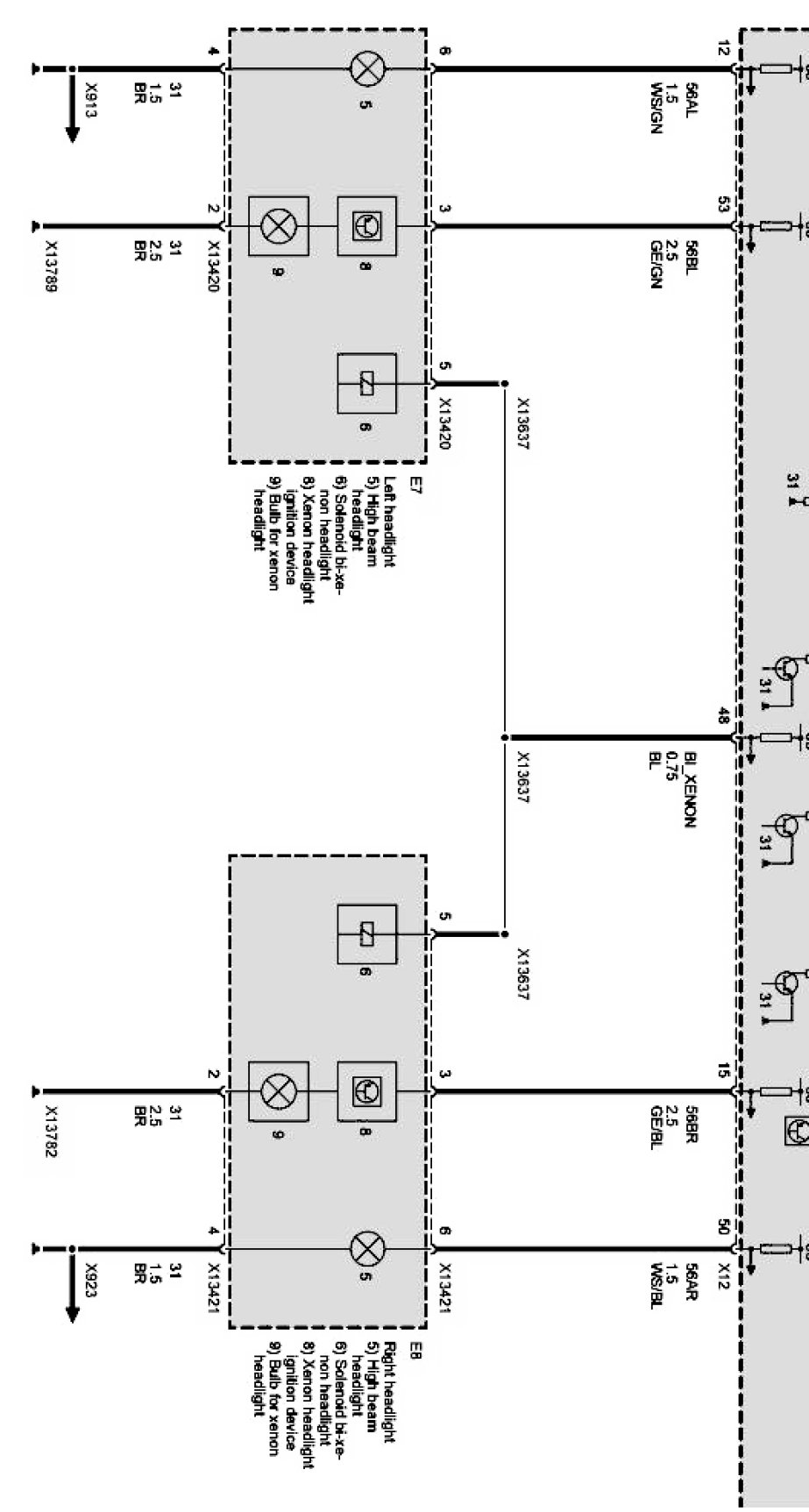

Low beam/high beam Part 1:

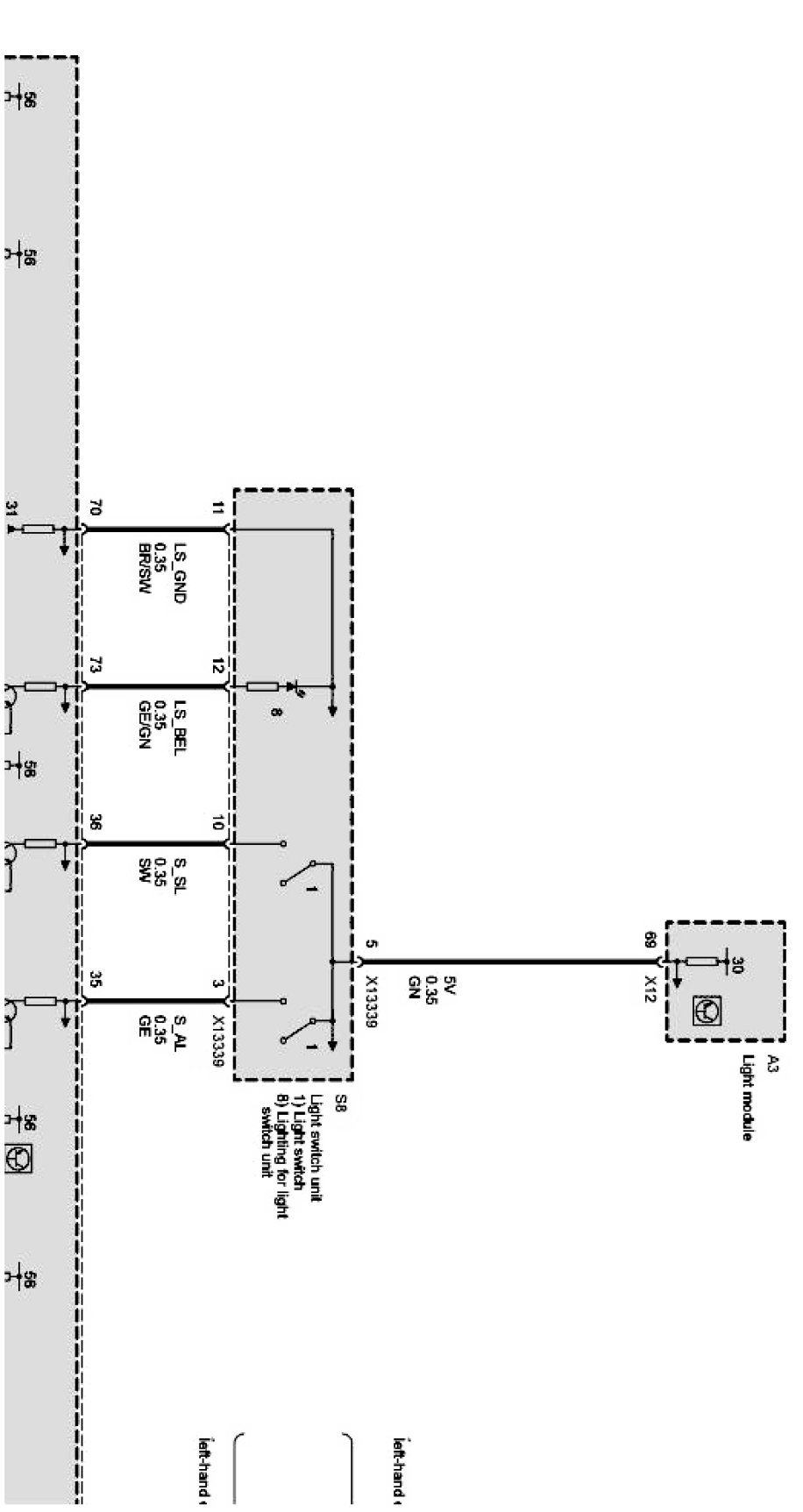

Low beam/high beam Part 2:

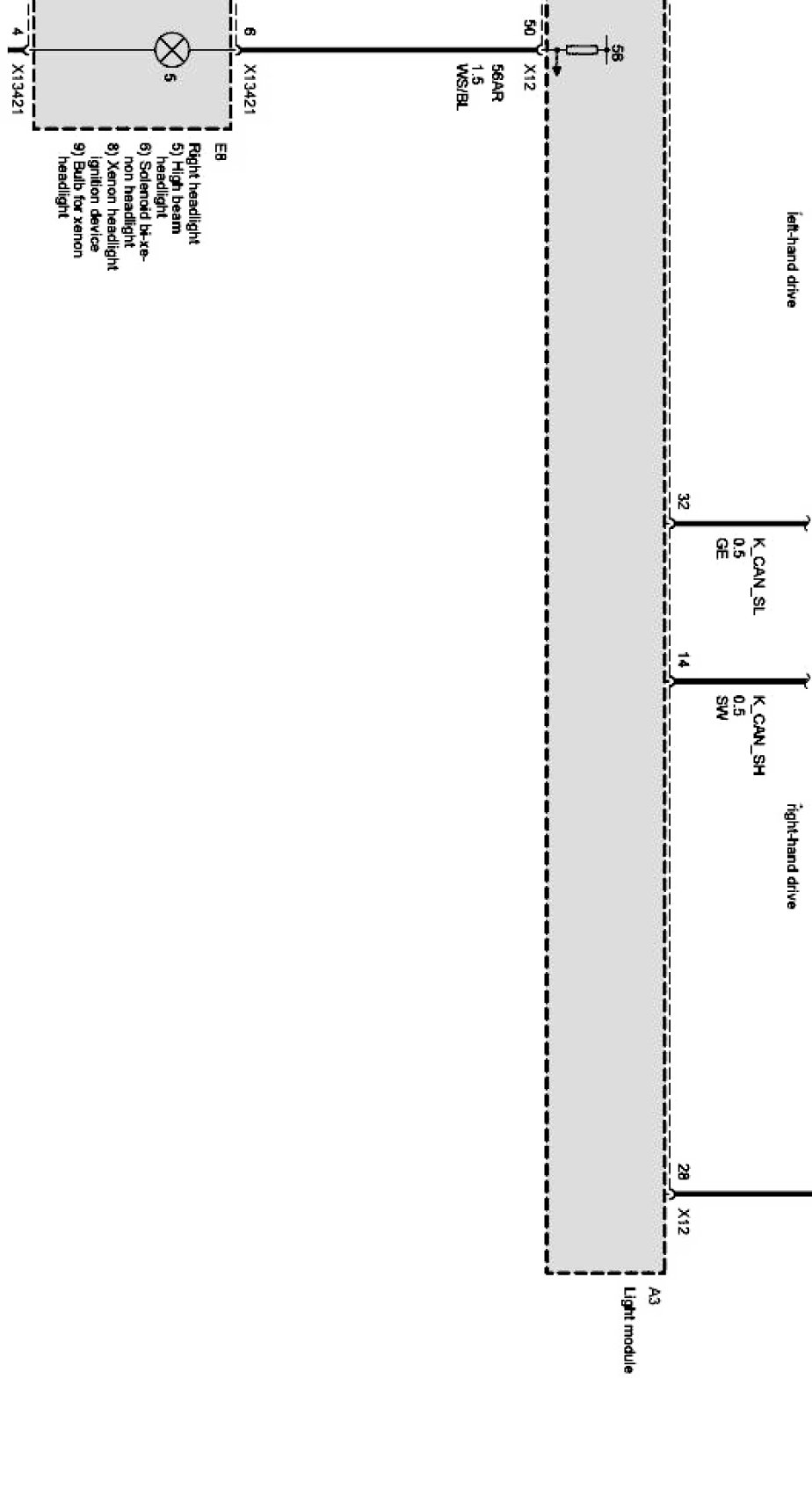

Low beam/high beam Part 3:
Low beam/high beam Part 4:
