Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Lighting >> Automatic Driving Lights >> Rain/Driving Lights Sensor (RLS Rain/Light Sensor) >> Low Beam/Rain Sensor (As of 03/05 Up to 09/05)

Low Beam/Rain Sensor (As of 03/05 Up to 09/05)

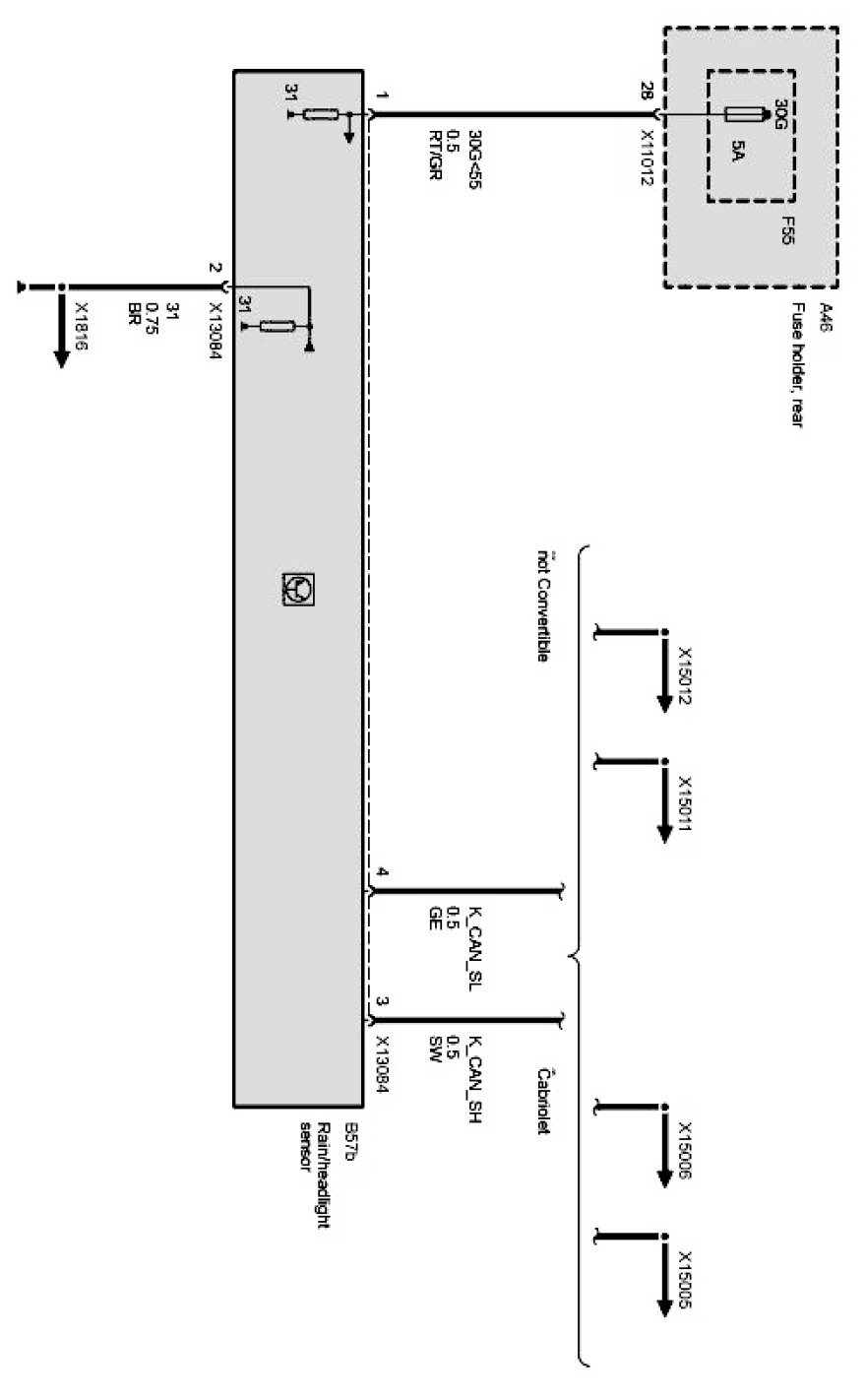

Low beam/rain sensor:
