Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Heating and Air Conditioning Functions >> Washer Nozzle Heating

Washer Nozzle Heating

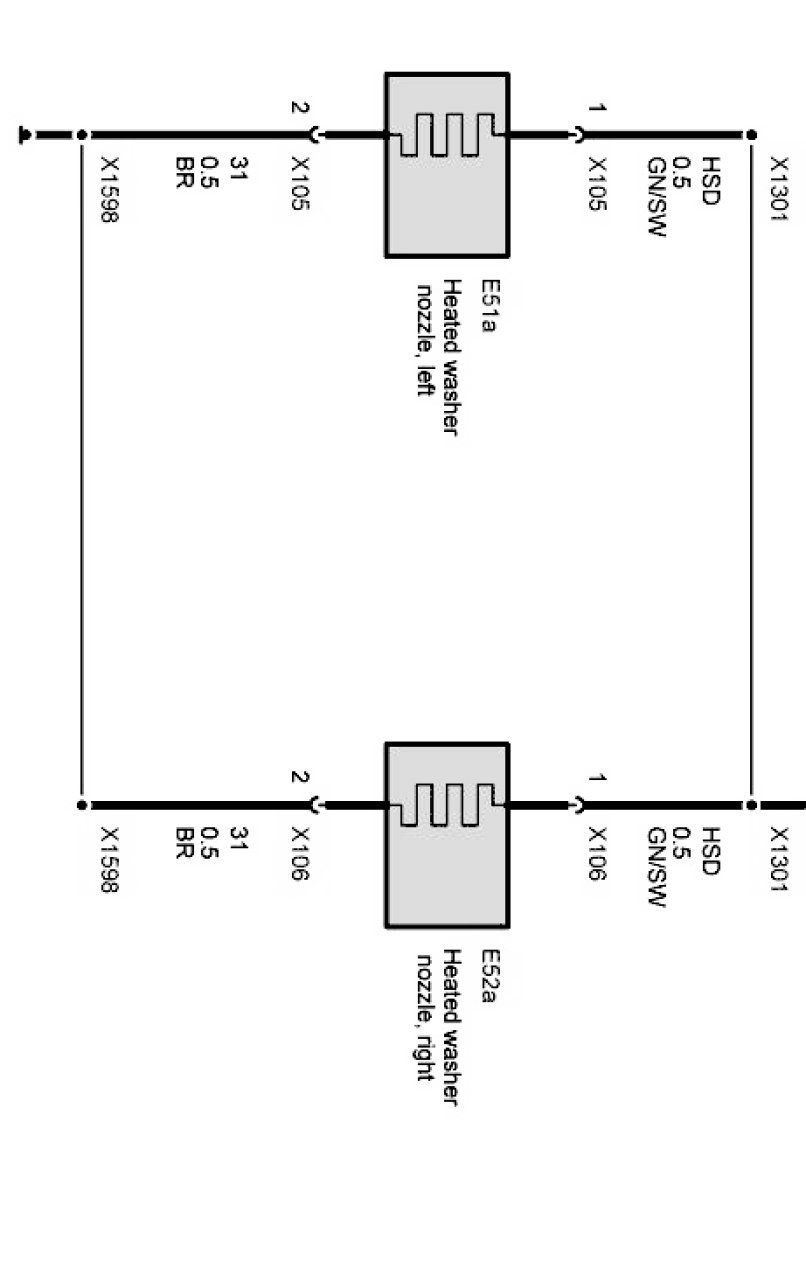

Heated windshield water jets Part 1:

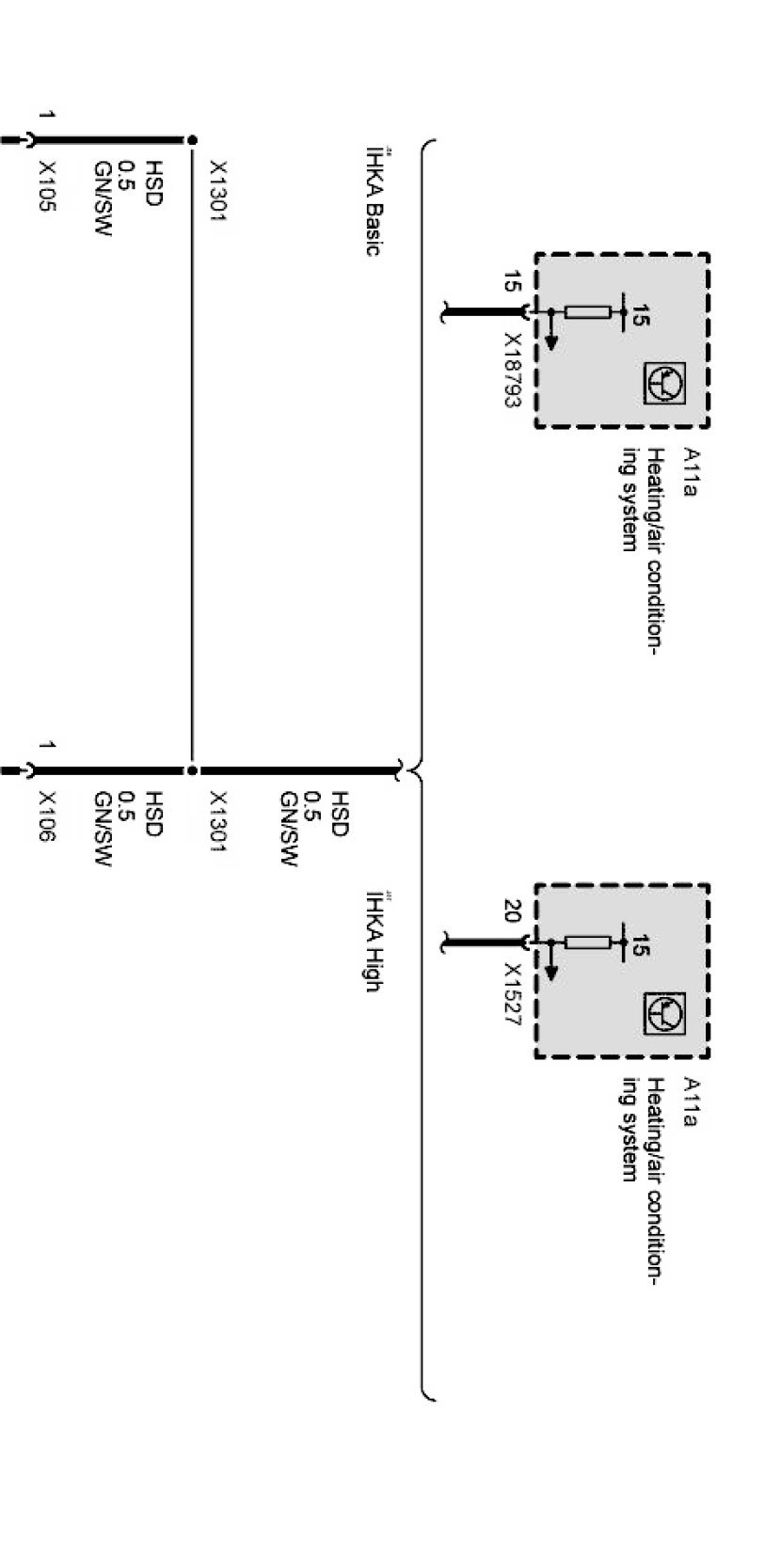

Heated windshield water jets Past 2:
