Temperature Control (IHKA High With (N62 or N62TU) As of 03/05 Up to 03/07)

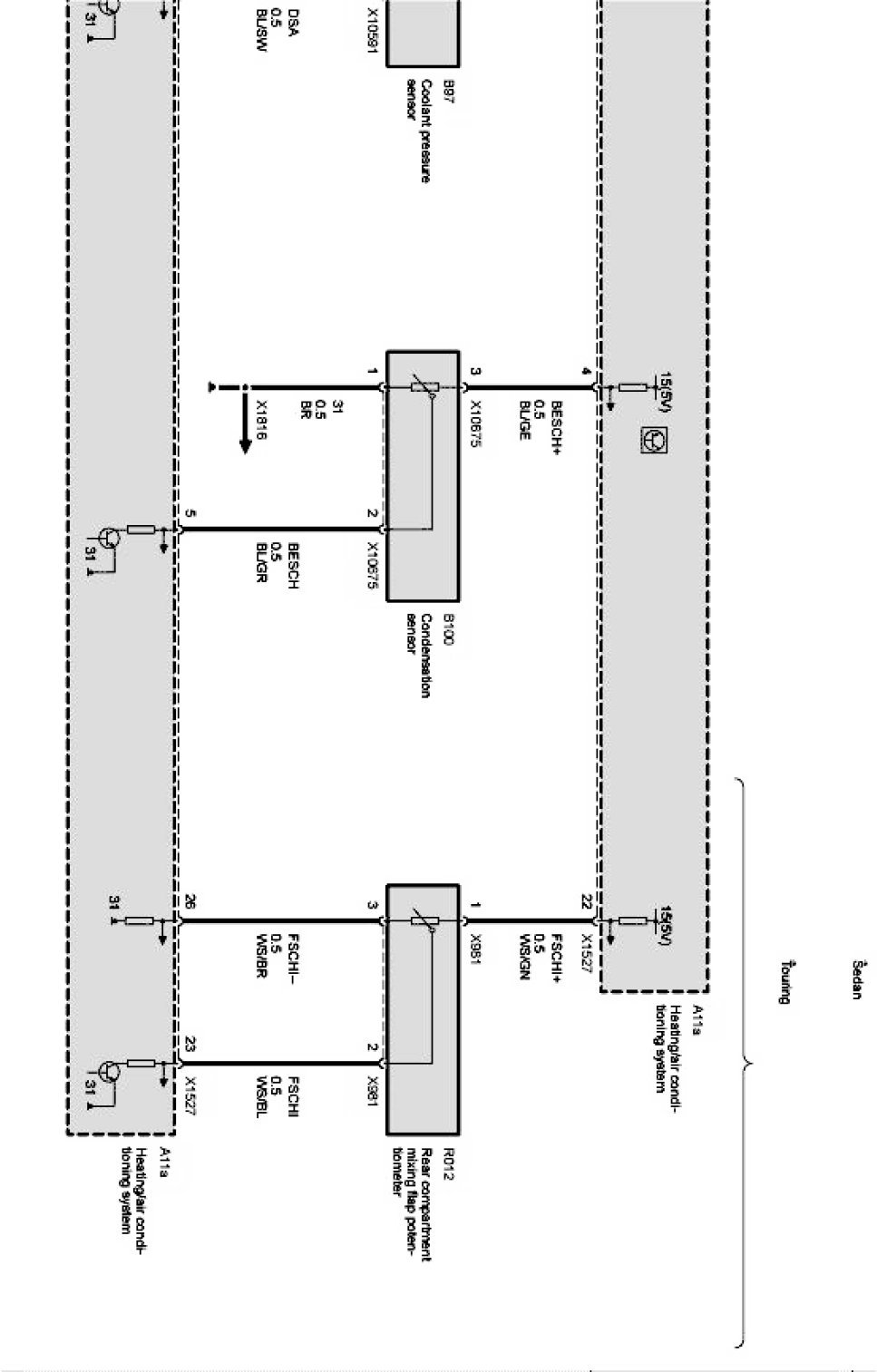

Temperature control Part 1:

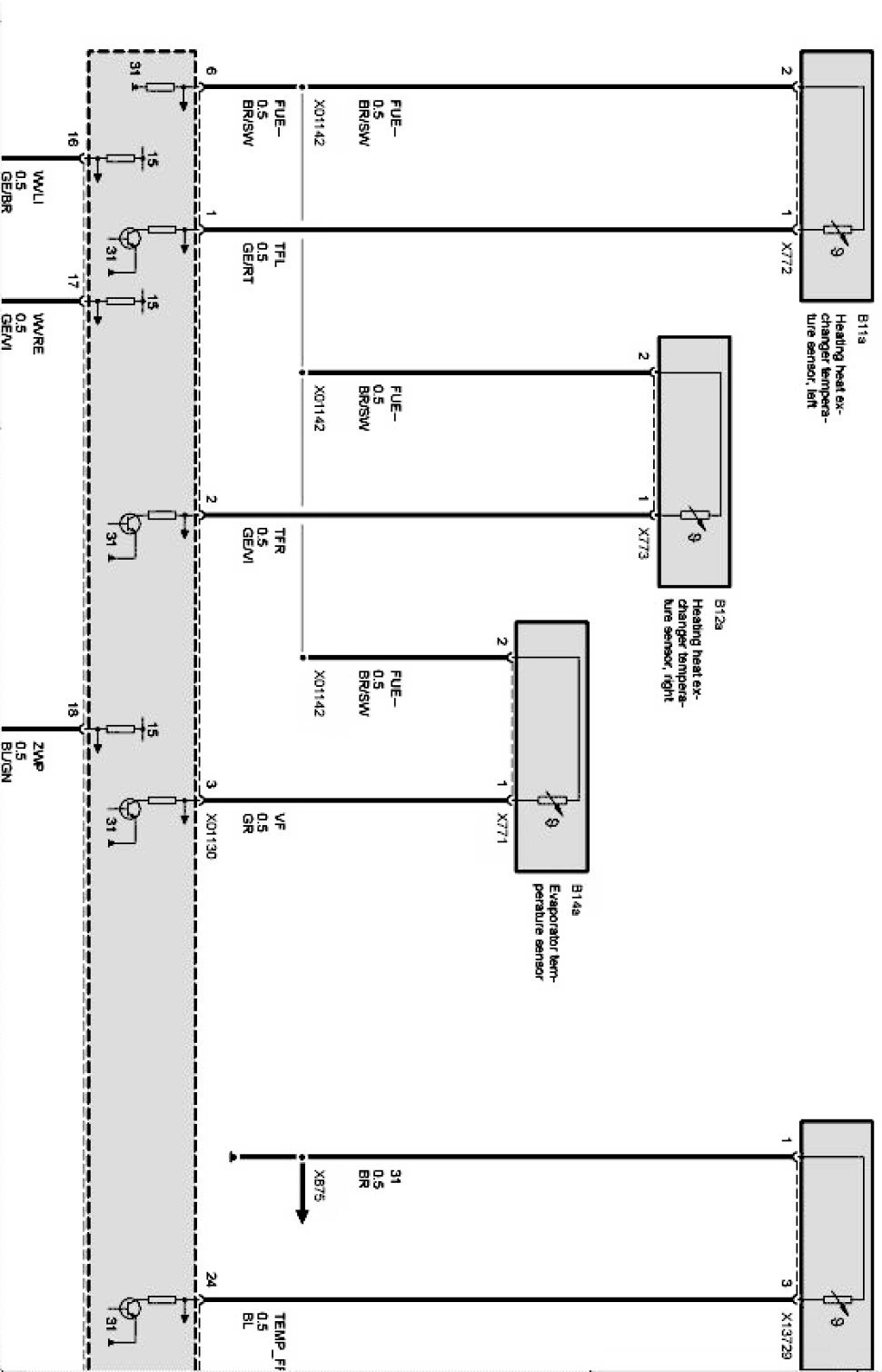

Temperature control Part 2:

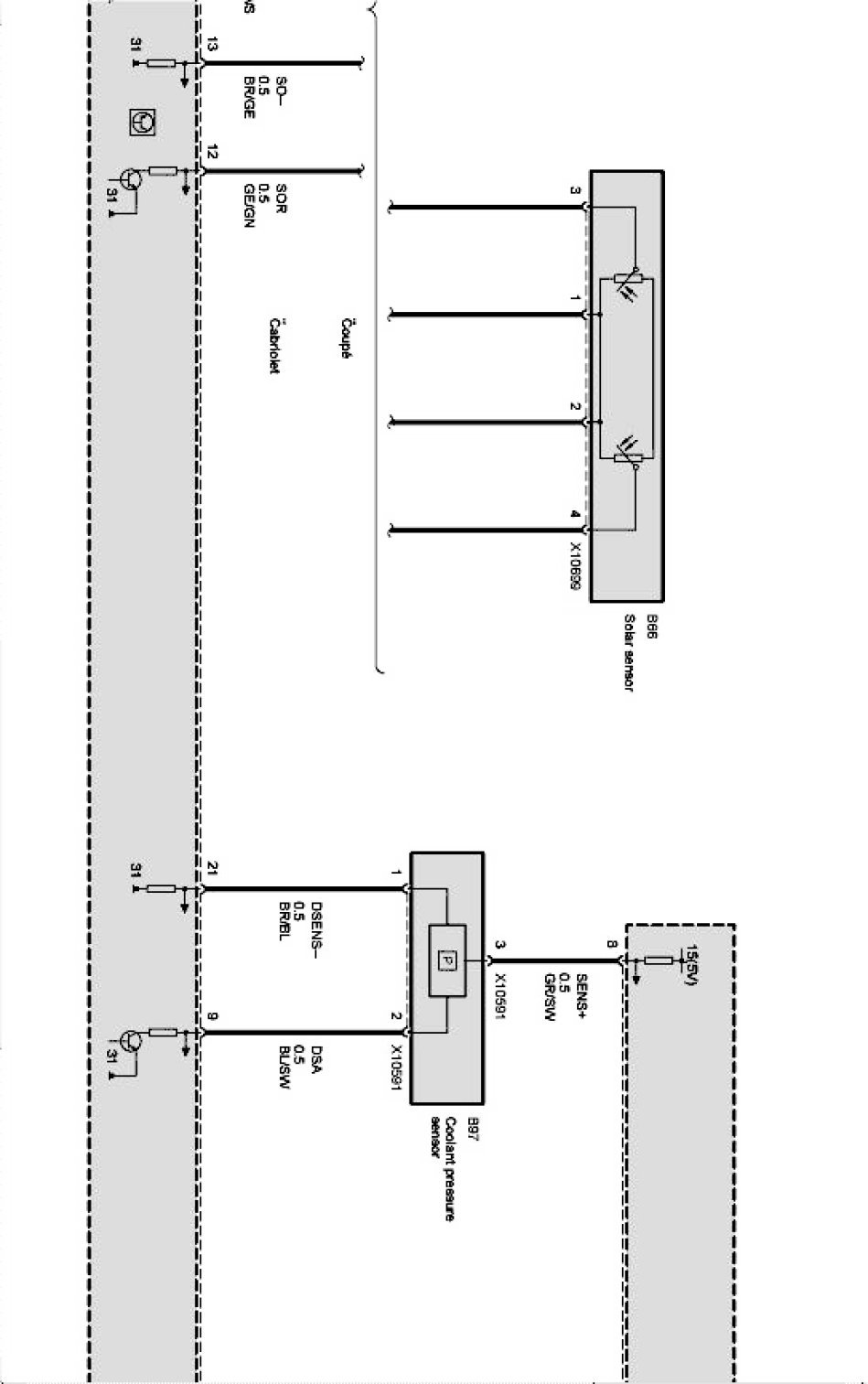

Temperature control Part 3:

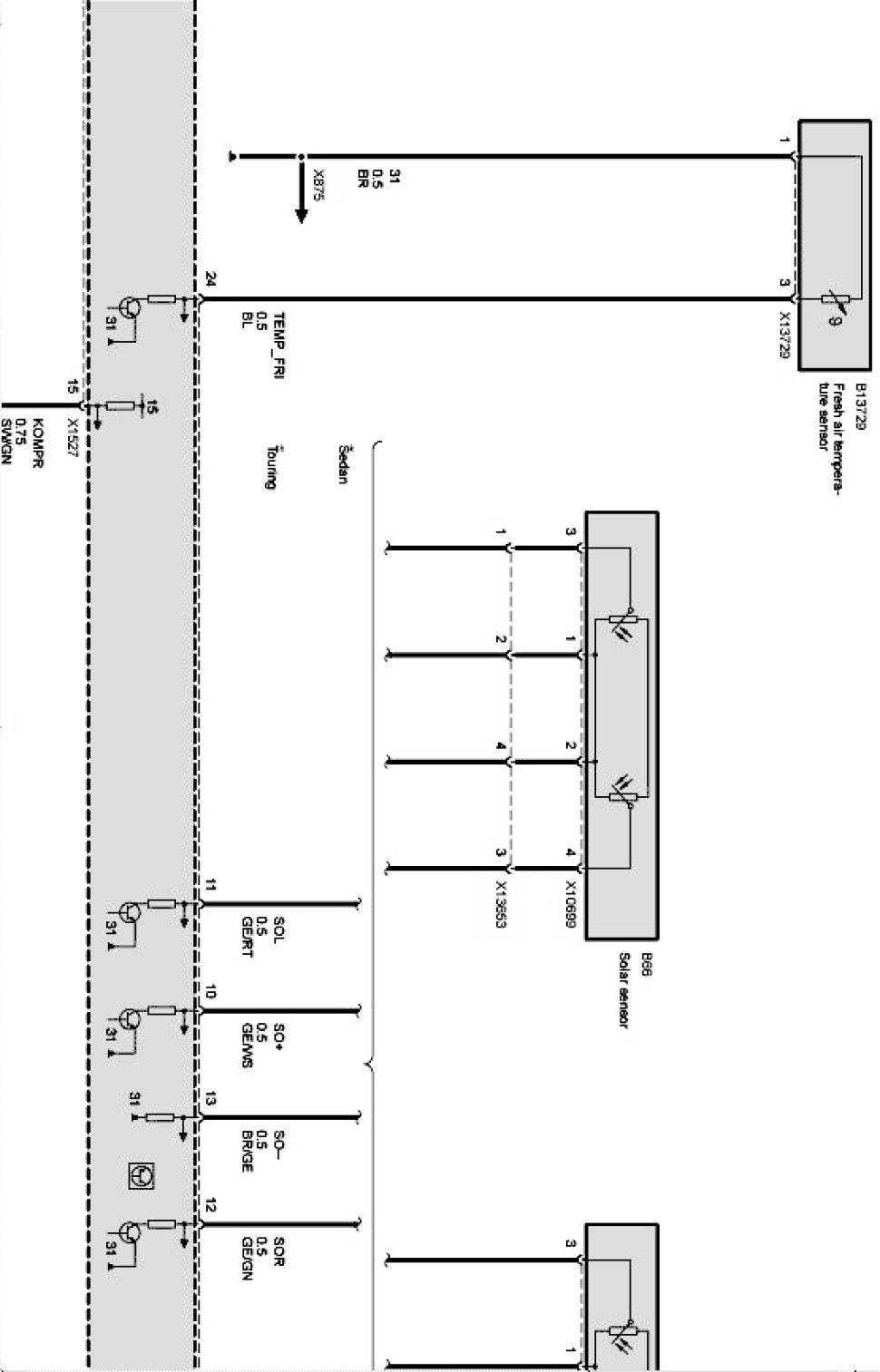

Temperature control Part 4:

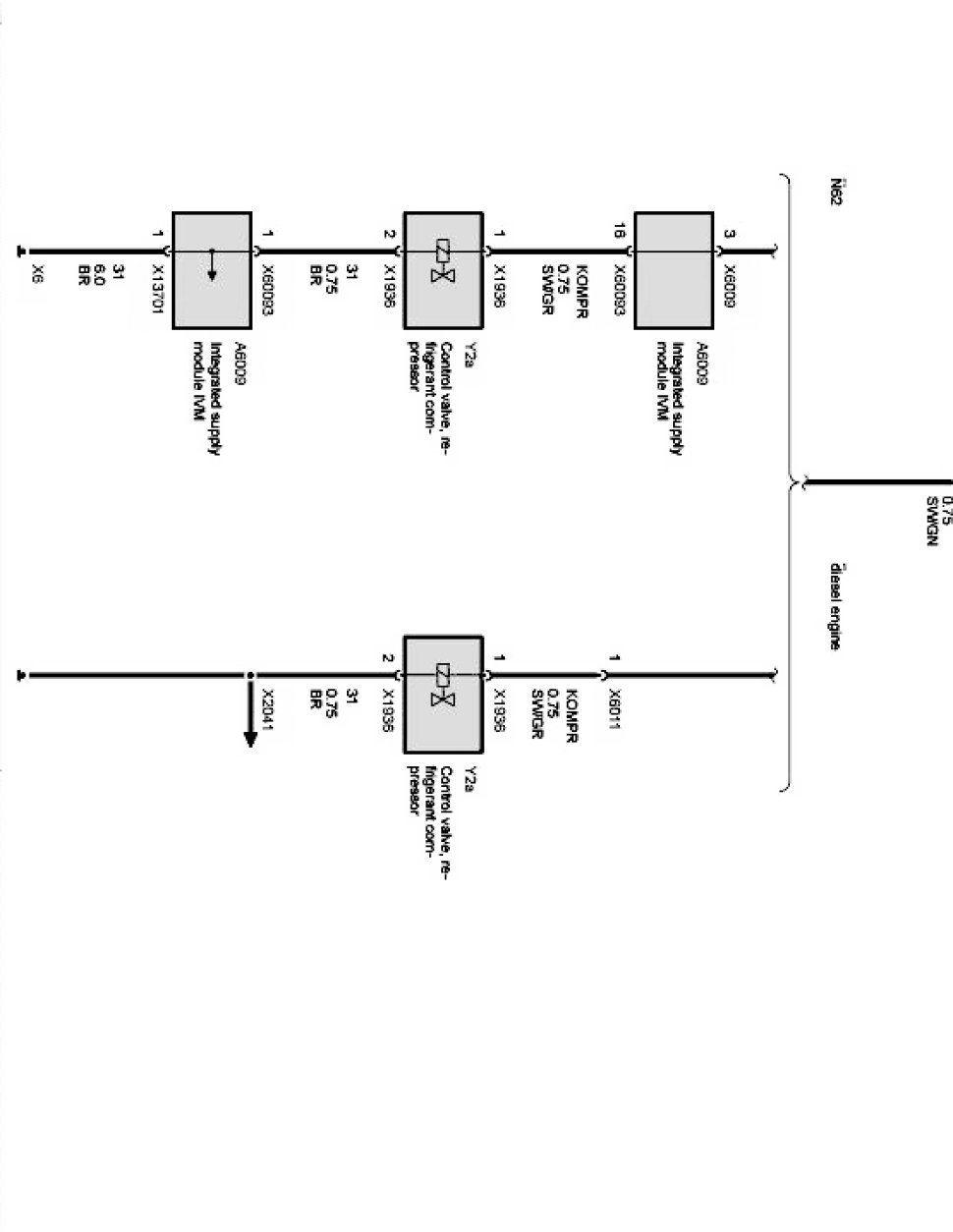

Temperature control Part 5:



Temperature control Part 6:
