Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Heating and Air Conditioning Functions >> Rear Window Defogger >> Rear Window Defogger (6 Series As of 09/05)

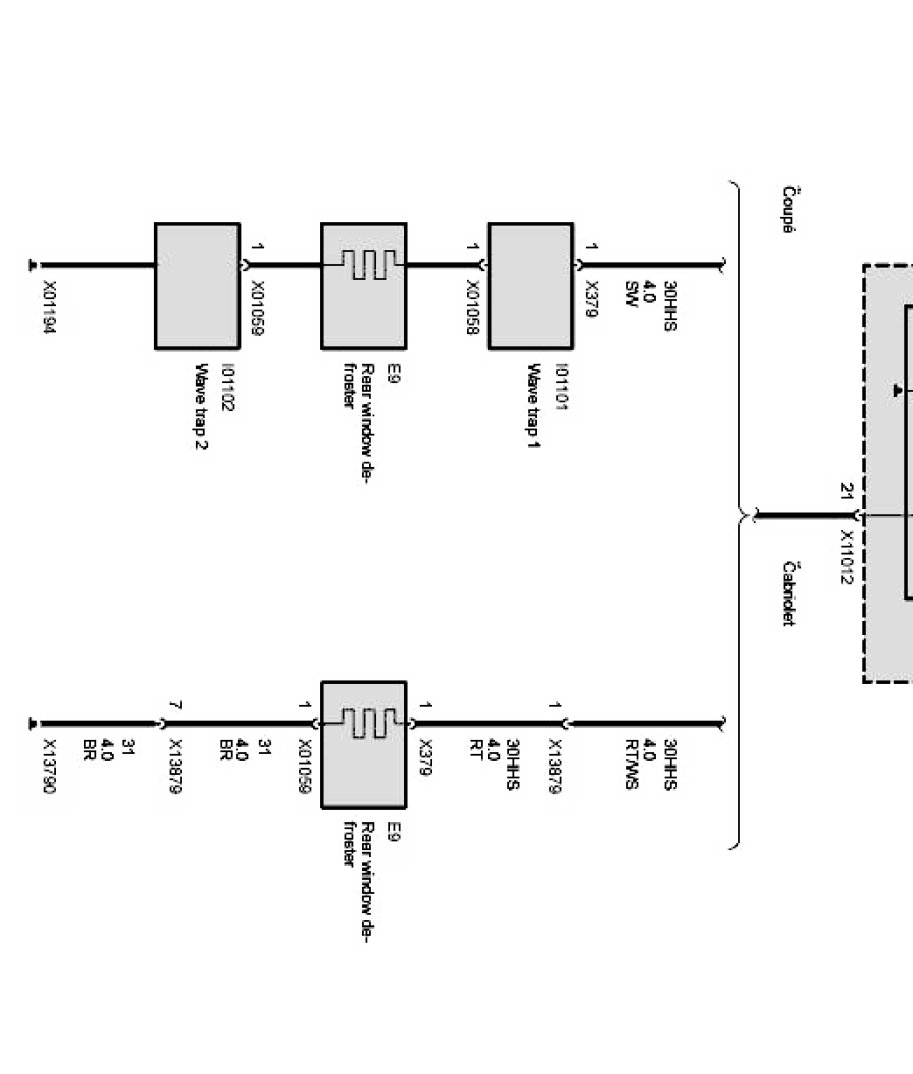

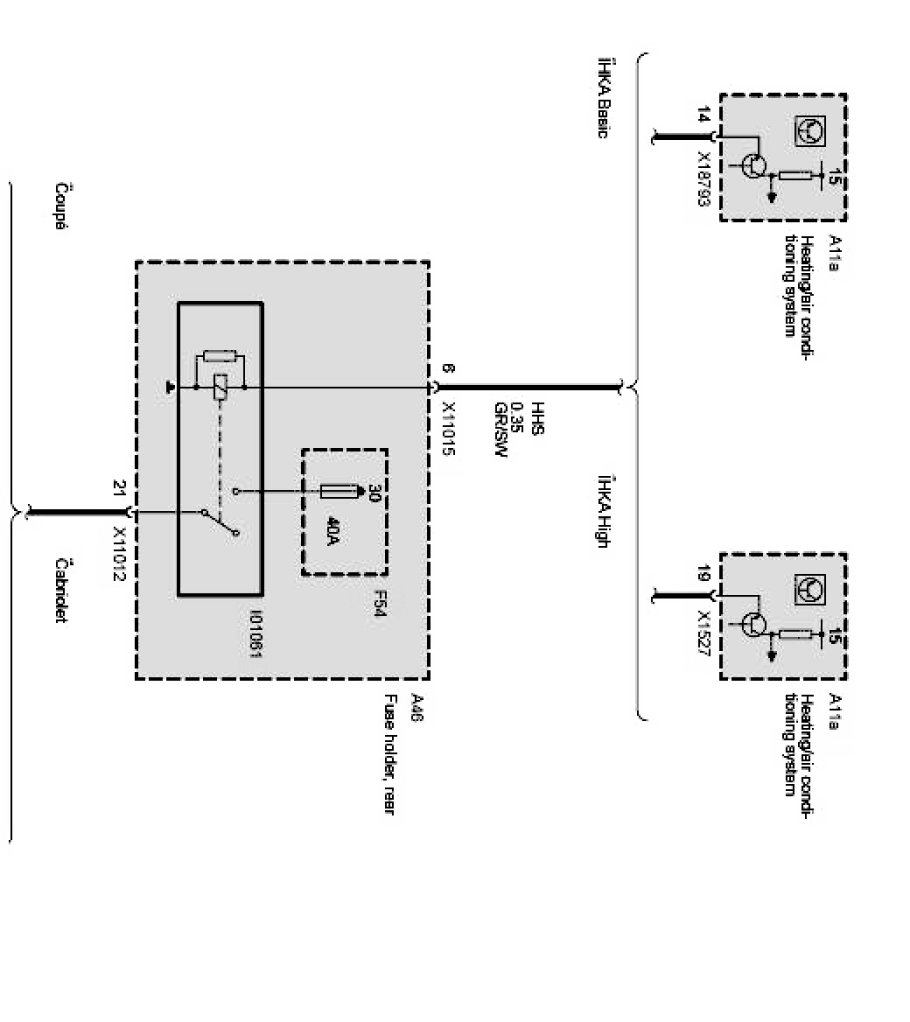

Rear Window Defogger (6 Series As of 09/05)
