Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Heating and Air Conditioning Functions >> Automatic Recirculated-Air Control (IHKA High) >> Automatic Recirculated Air Control (AUC) (As of 03/05 Up to 03/07)

Automatic Recirculated Air Control (AUC) (As of 03/05 Up to 03/07)

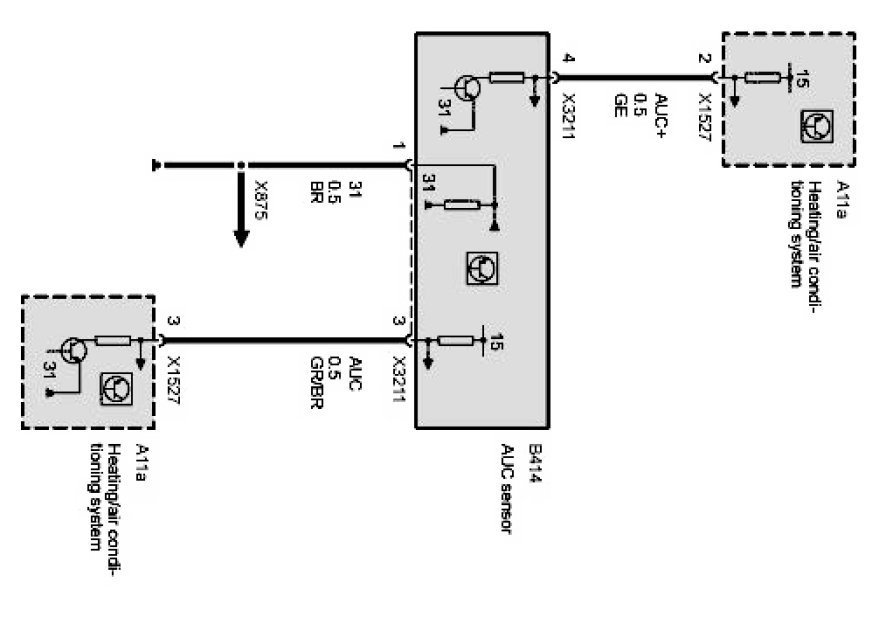

Automatic recirculated air control (AUC):
