Air Distribution (IHKA High)

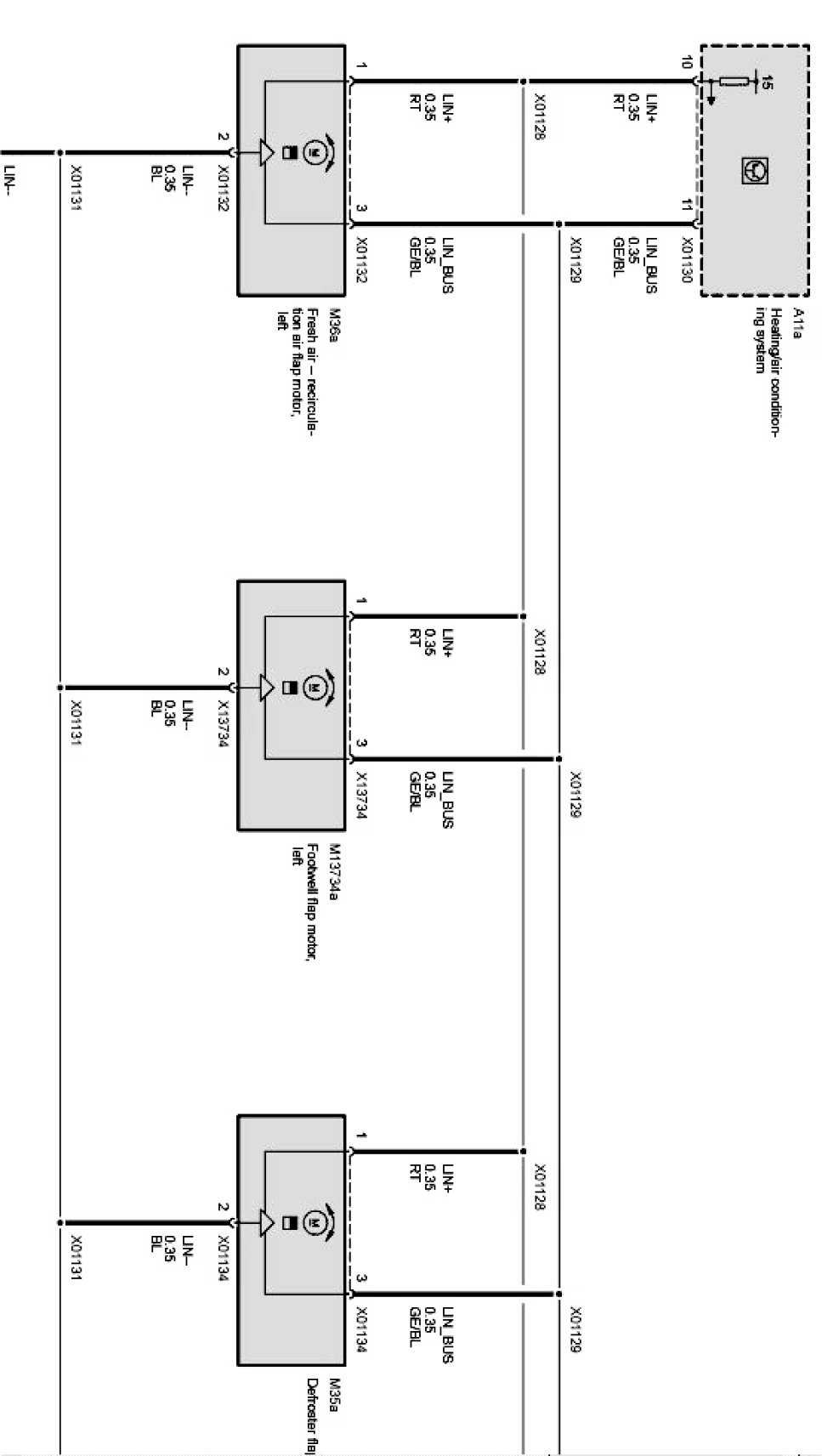

Air distribution Part 1:

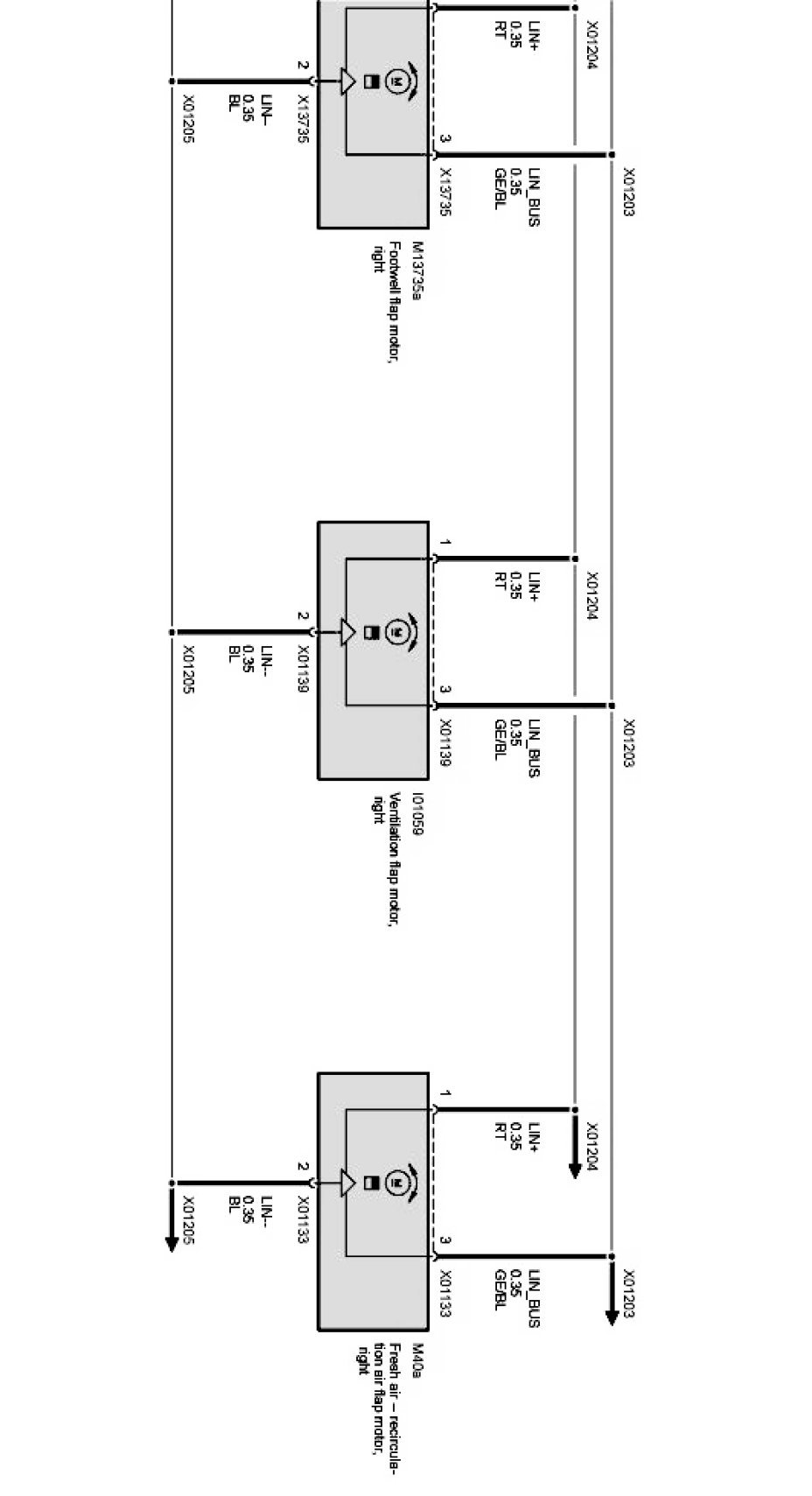

Air distribution Part 2:

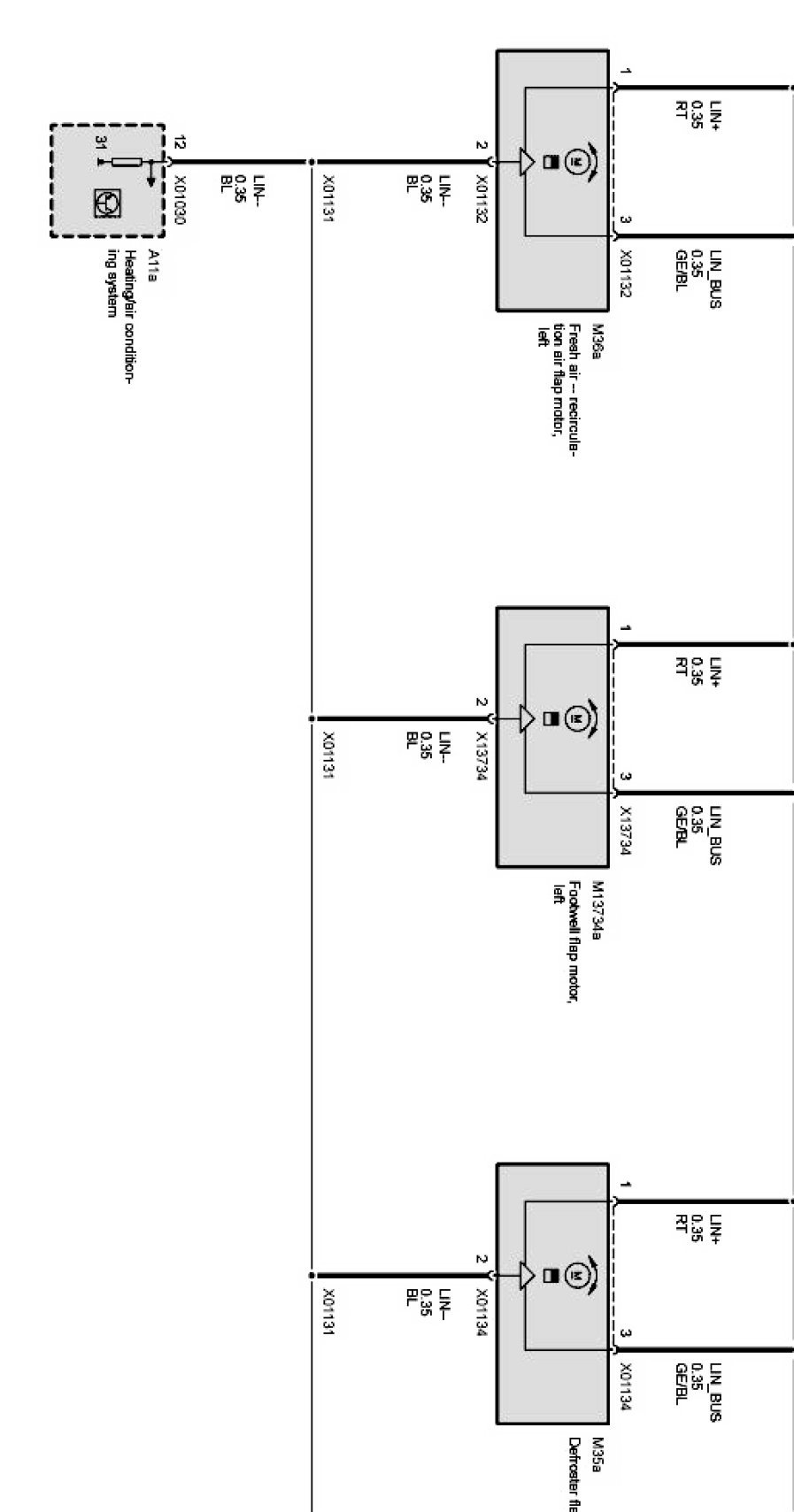

Air distribution Part 3:

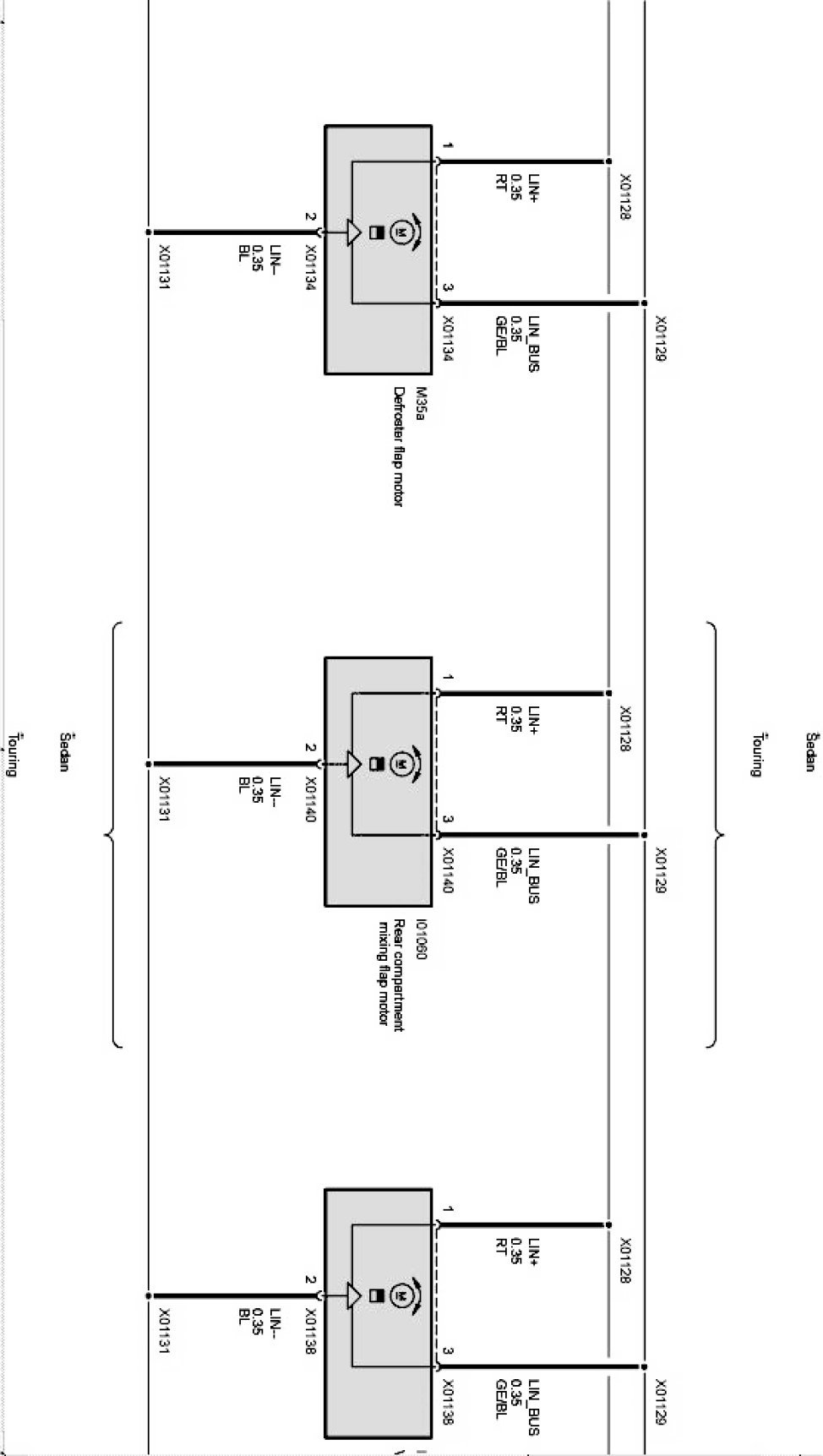

Air distribution Part 4:

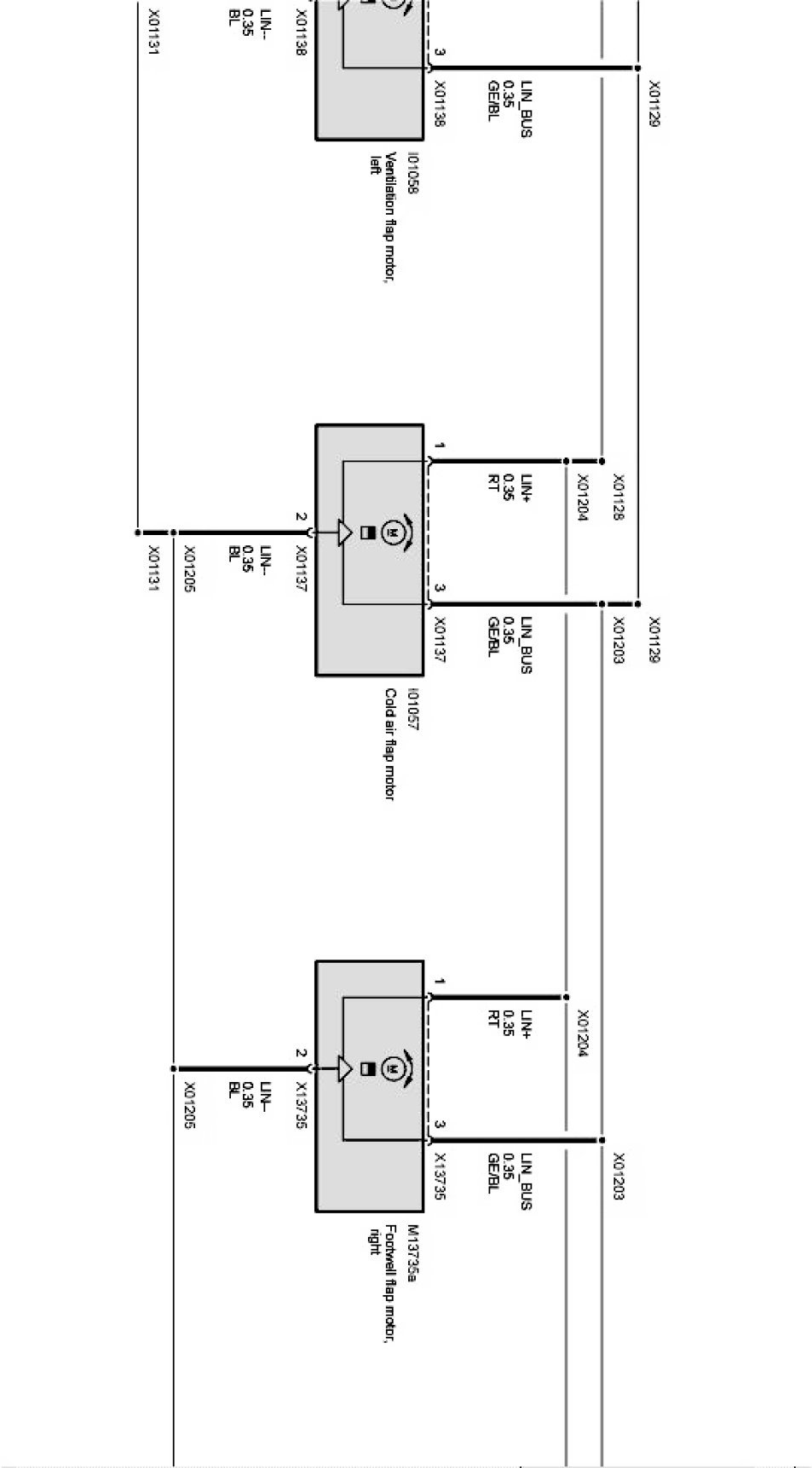

Air distribution Part 5:
