Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> General Vehicle Electrical System >> Trailer Mode (Ahm Trailer Module or AHM3+ Trailer Module) >> Trailer Lighting >> Trailer Lighting (As of 09/05 Up to 03/07)

Trailer Lighting (As of 09/05 Up to 03/07)

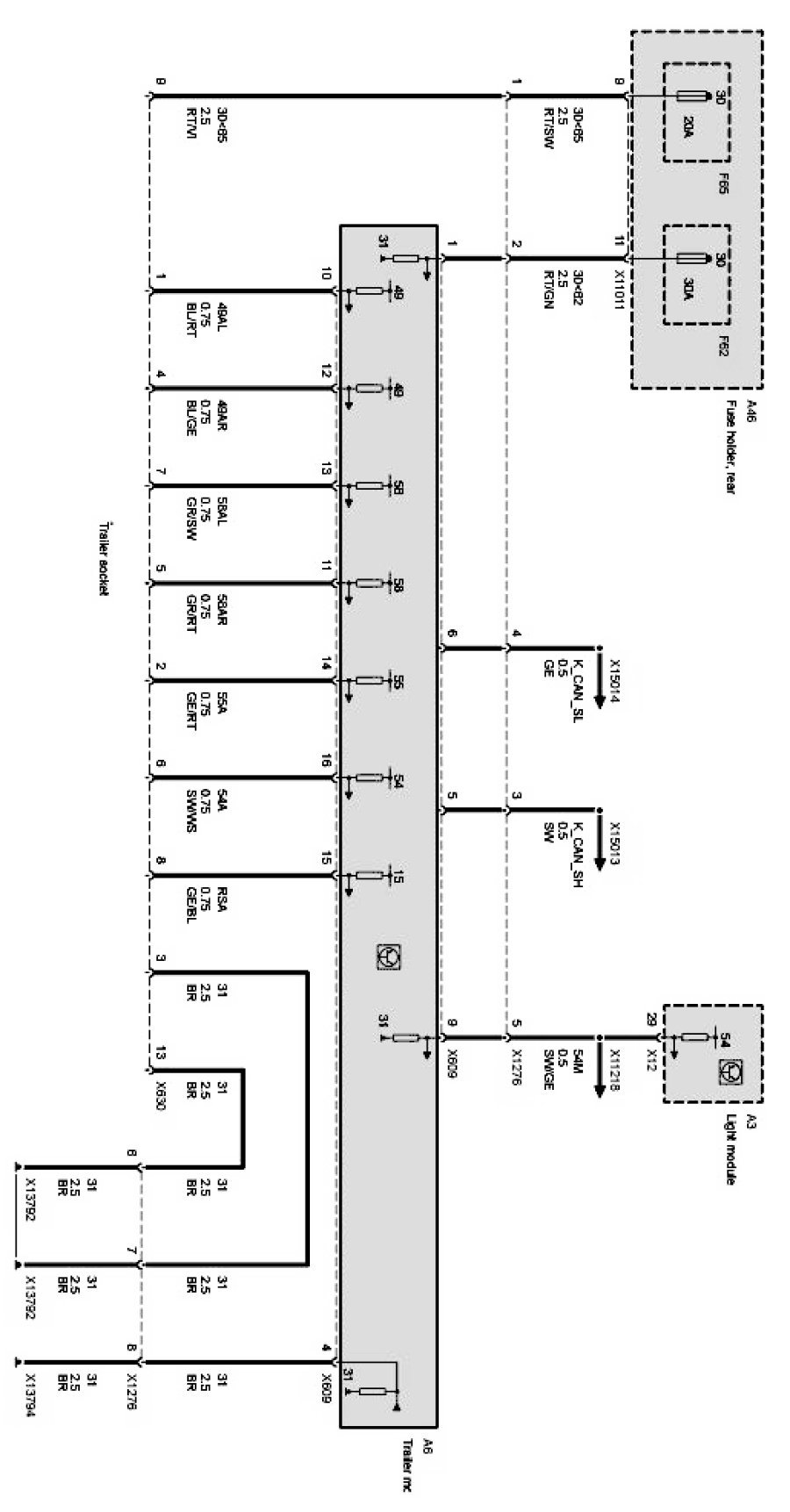

Trailer lighting:
