Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> General Vehicle Electrical System >> Rear Window Roller Blind >> Roller Sun Blind, Rear Window (As of 03/07 With Saloon)

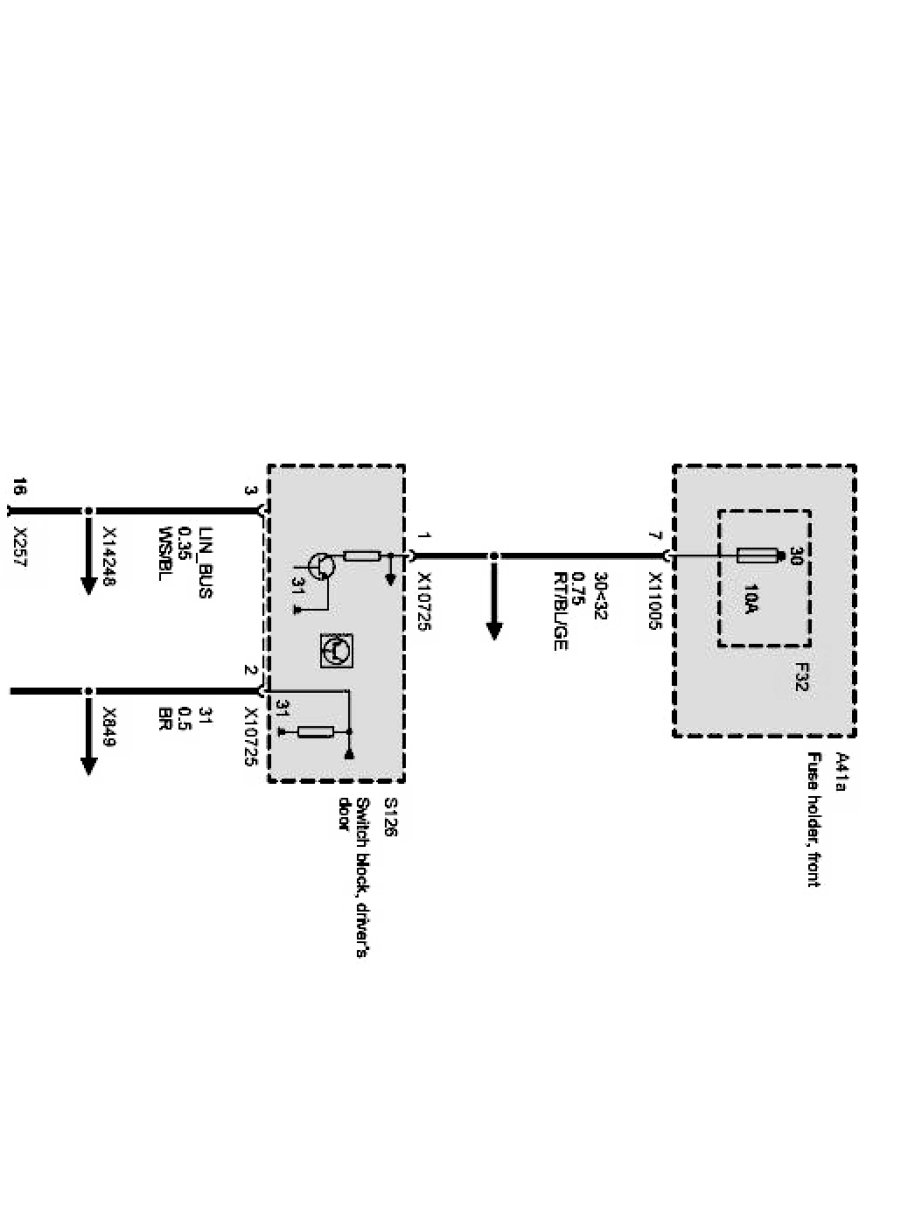

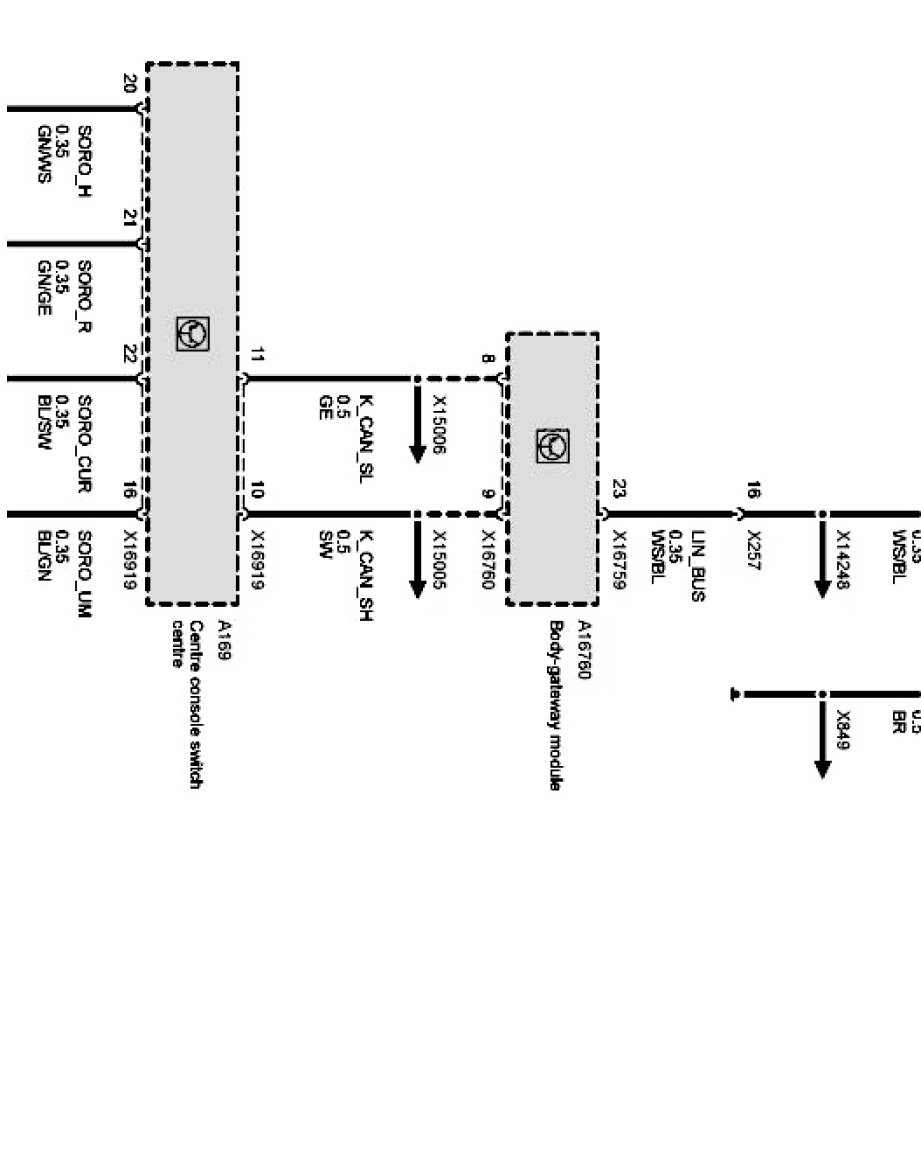

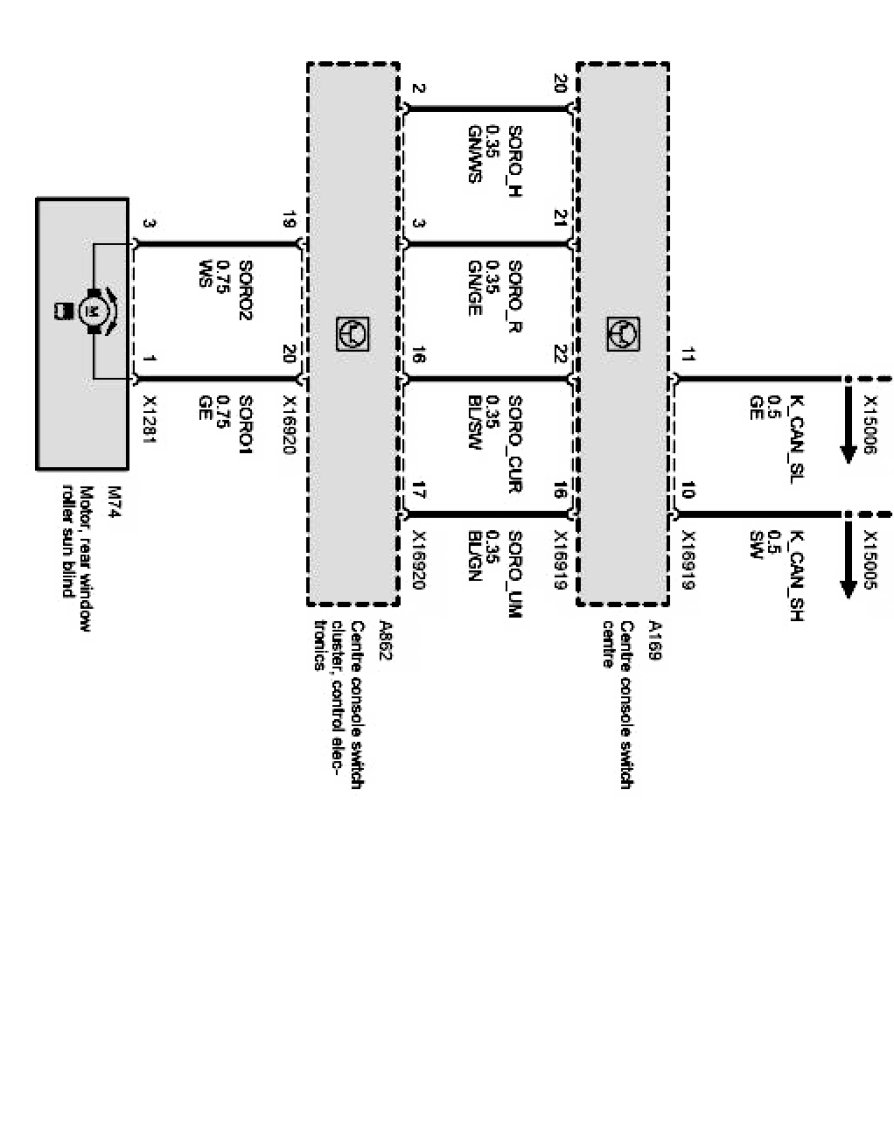

Roller Sun Blind, Rear Window (As of 03/07 With Saloon)
